Name: Wiska 10110405 Junction box (L x W x H) 85 x 85 x 51 mm White IP66/IP67 5 pc(s)
Brand: Wiska
SKU: 2480142
Availability: BackOrder

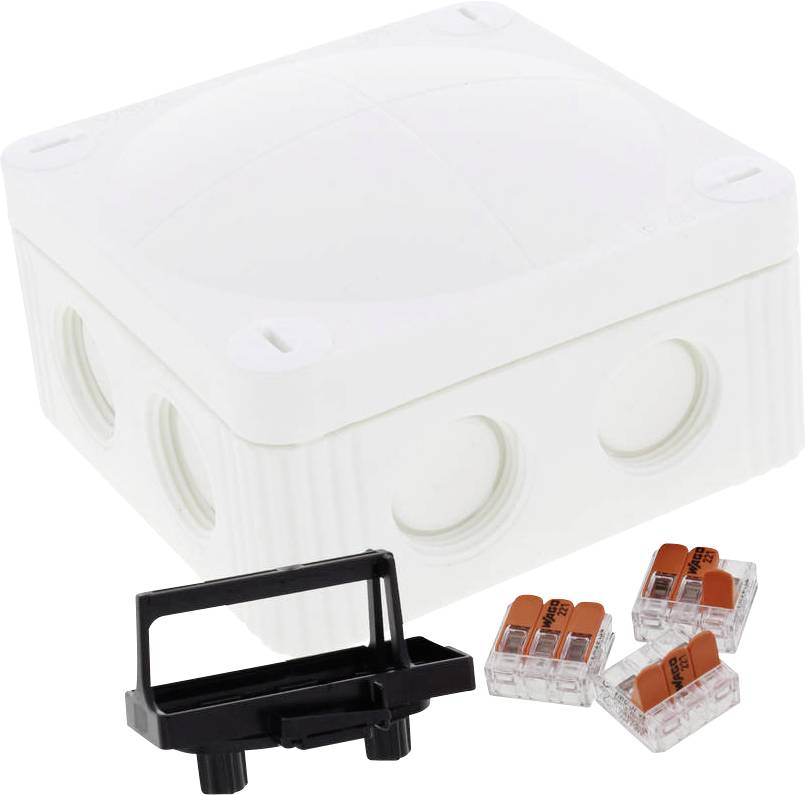

White junction box with four cable connectors and black mounting brackets, suitable for electrical installations.

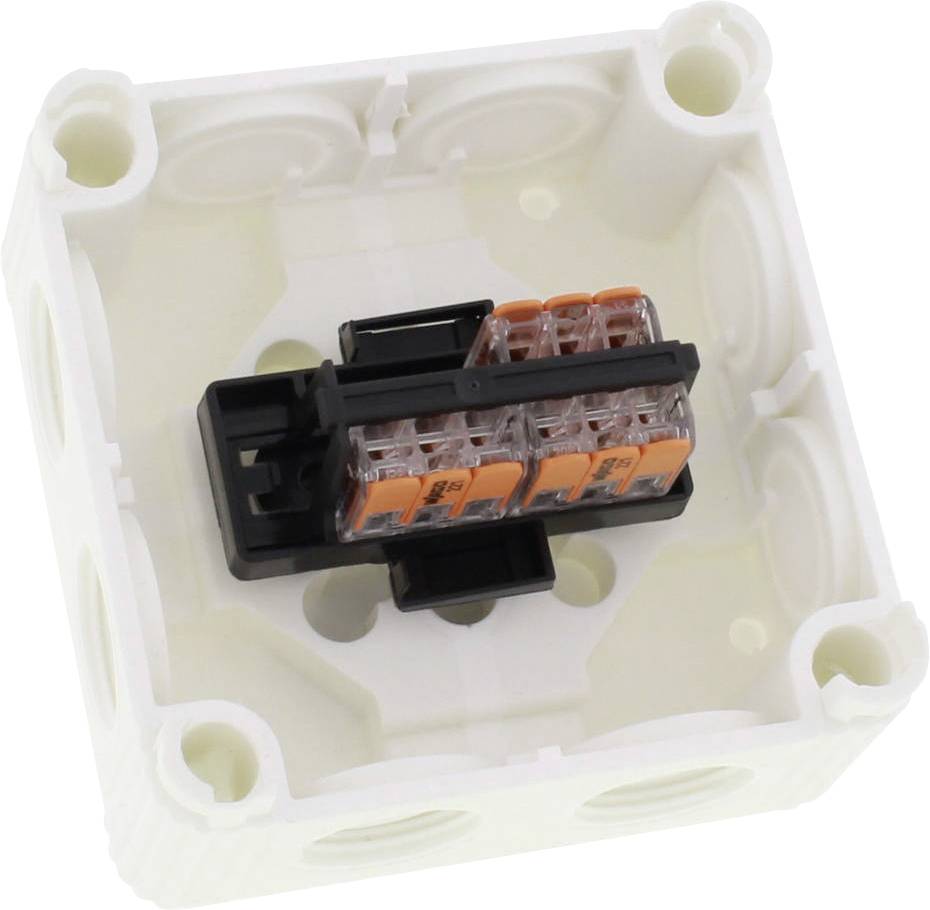

An empty white junction box with a visible terminal block in the centre, which enables wire connections.

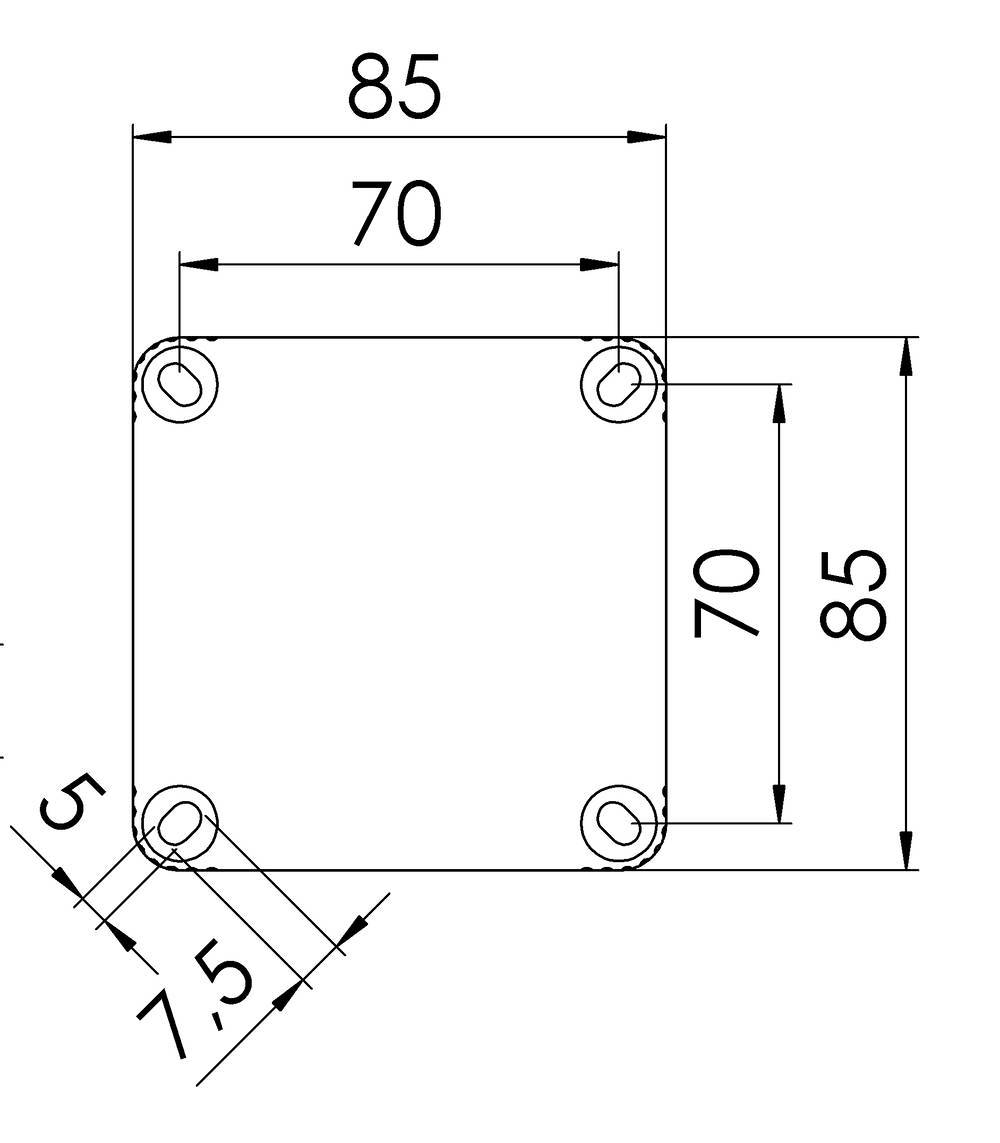

Technical drawing of a square object with edge lengths of 85 and 70 mm. Holes at all corners. Angles of 7.5 and 5 degrees marked.

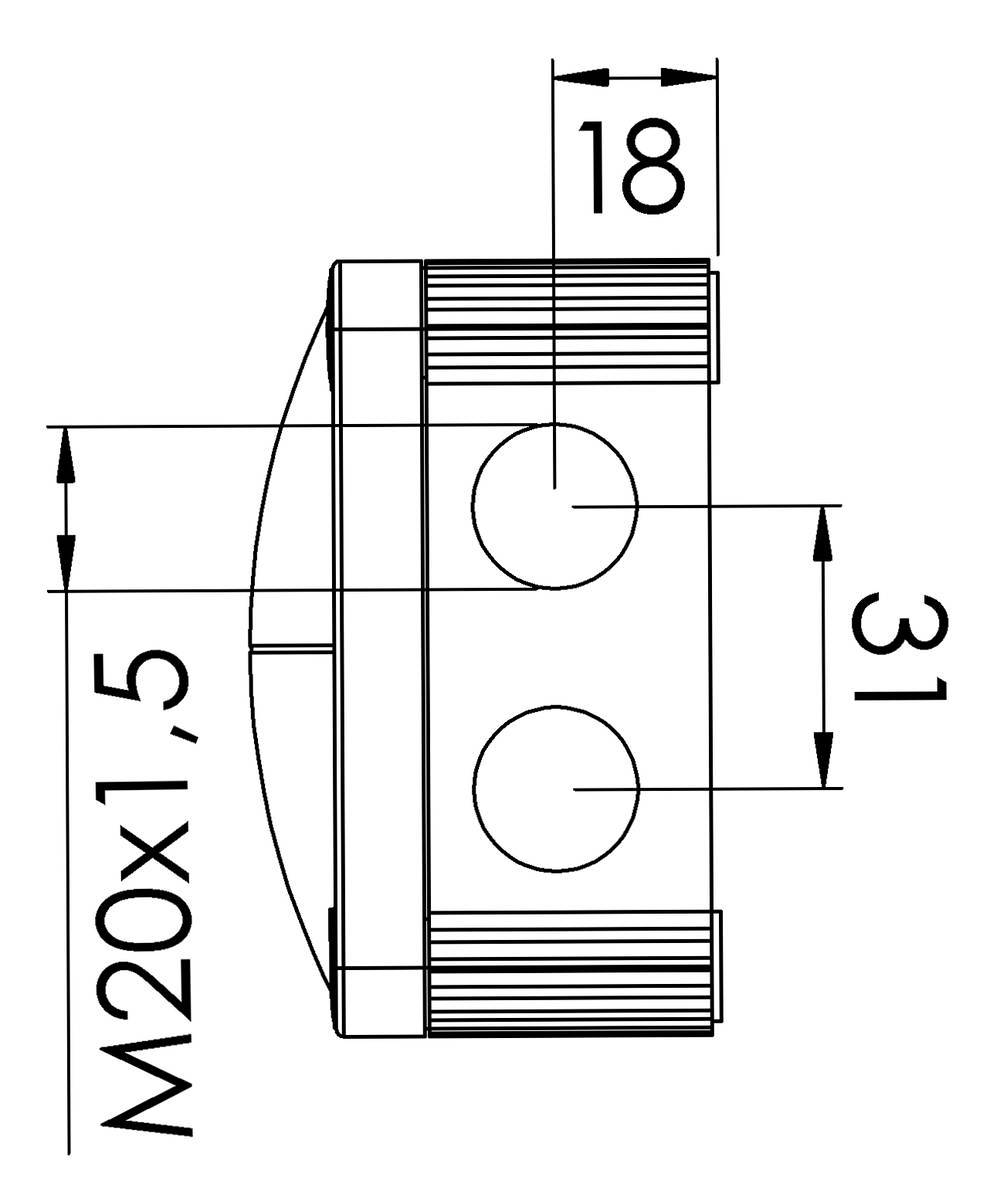

Technical drawing of a cylindrical component with M20x1.5 thread. Dimensions: Diameter 18, Total height 31.

1/5

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 5 pc(s))

Set(s)

Total (€ 35.99 / piece)

€ 42.71

-16 %

€ 35.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Max. Conductor cross-section: 4 mm²
Mounting type: Wall/ceiling mounting
Introduction from behind: Yes
Number of introductions: 8
Type of housing bushing: Thread and sealing membrane
Cover type: Blind cover, screwed
Pouring: Yes
Rated insulation voltage UI: 400 V.
Weather-resistant: Yes

Product type: Junction box

Factory colour: White

: IP66/IP67

Permanent temperature resistance: -30 °C - +100 °C. °C

Dim: (L x W x H) 85 x 85 x 51 mm

Type: square, stackable

Features: Halogen-free

Content: 5 pc(s)

Material: Plastic

Width: 85 mm

Height: 51 mm

Length: 85 mm

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Factory colour

Dim

IP rating

Wiska 10060567 Junction box (L x W x H) 110 x 110 x 66 mm Grey IP66/IP67 3 pc(s)

Item no:2480059

Available soon

Conrad Electronic

Grey

(L x W x H) 110 x 110 x 66 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Wiska 10062219 Junction box (L x W x H) 140 x 140 x 72 mm Grey IP67 2 pc(s)

Item no:2480060

Fast track dispatch on Thu 15 Oct

1 Set(s)Conrad Electronic

Grey

(L x W x H) 140 x 140 x 72 mm

IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 39.99^*

Wiska 10101784 Junction box (L x W x H) 160 x 140 x 81 mm Grey IP66/IP67 2 pc(s)

Item no:2480061

Available soon

Conrad Electronic

Grey

(L x W x H) 160 x 140 x 81 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 34.99^*

Wiska 10101785 Junction box (L x W x H) 160 x 140 x 81 mm Grey IP66/IP67 2 pc(s)

Item no:2480062

Available soon

Conrad Electronic

Grey

(L x W x H) 160 x 140 x 81 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Wiska 10102628 Junction box (L x W x H) 110 x 110 x 66 mm Red IP66/IP67 3 pc(s)

Item no:2480063

Available soon

Conrad Electronic

Red

(L x W x H) 110 x 110 x 66 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31.99^*

Wiska 10105991 Junction box (L x W x H) 108 x 98 x 57 mm Grey IP20 5 pc(s)

Item no:2480064

Available soon

Conrad Electronic

Grey

(L x W x H) 108 x 98 x 57 mm

IP20

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Wiska 10105992 Junction box (L x W x H) 108 x 98 x 72 mm Grey 5 pc(s)

Item no:2480065

Available soon

Conrad Electronic

Grey

(L x W x H) 108 x 98 x 72 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Wiska 10106020 Junction box (L x W x H) 105 x 95 x 52 mm Grey IP20 5 pc(s)

Item no:2480066

Available soon

Conrad Electronic

Grey

(L x W x H) 105 x 95 x 52 mm

IP20

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

Wiska 10106840 Junction box (L x W x H) 95 x 95 x 60 mm Red IP66/IP67 5 pc(s)

Item no:2480080

Available soon

Conrad Electronic

Red

(L x W x H) 95 x 95 x 60 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

Wiska 10109674 Junction box (L x W x H) 95 x 95 x 60 mm Grey IP66/IP67 5 pc(s)

Item no:2480082

Available soon

Conrad Electronic

Grey

(L x W x H) 95 x 95 x 60 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.99^*

Documents & Downloads

Datasheet

Datasheet 2480142 Wiska 10110405 Junction box (L x W x H) 85 x 85 x 51 mm White IP66/IP67 5 pc(s)

User & Safety Instructions

User & Safety Instructions 2480142 Wiska 10110405 Junction box (L x W x H) 85 x 85 x 51 mm White IP66/IP67 5 pc(s)

Description

KOMBI cable junction box made of flame-resistant, halogen-free, reinforced thermoplastic, in the 2-component plastic technology combined with puncture membranes made of thermoplastic elastomer.
The box with a high degree of protection is weather and UV-resistant, also shock-proof and break-proof. Ideally suited for installation in indoor and outdoor areas and under extreme stress.
High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis as well as alcohol.
Permanently elastic, self-sealing, lateral puncture membranes in combination with integrated thread make direct cable mounting through the membrane as well as the use of cable glands without counter nut possible.
Captive quick-release cap screws, close the box with only a quarter turn.
The box is attached by a quick mounting bracket or internal openings outside the sealing area.

This text is machine translated.
