Name: Wiska 10110735 Junction box (L x W x H) 200 x 160 x 94 mm Grey IP66/IP67 1 pc(s)
Brand: Wiska
SKU: 2480152
Availability: BackOrder

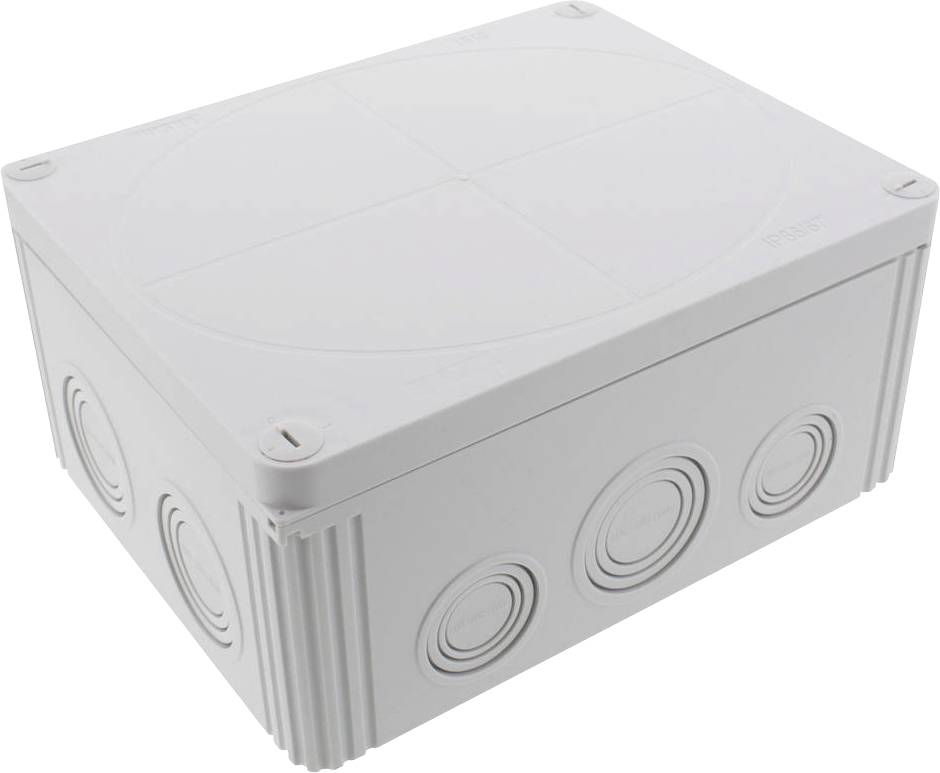

A rectangular, grey distribution box with round cable entry holes on the sides, suitable for electrical installations.

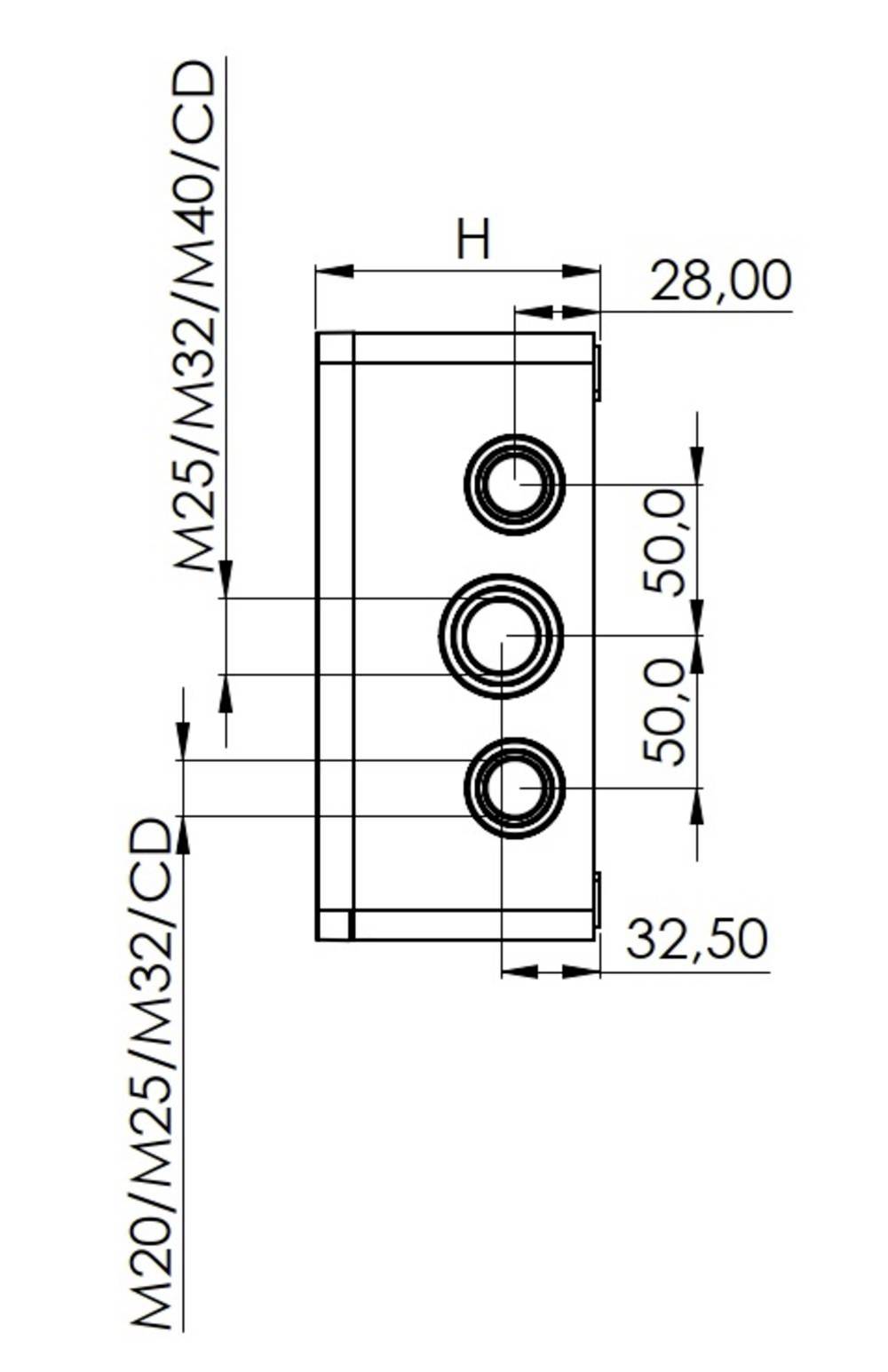

Technical drawing of a rectangular housing with three round openings. Dimensions: height 28 mm, width 32.5 mm, distance between openings 50 mm.

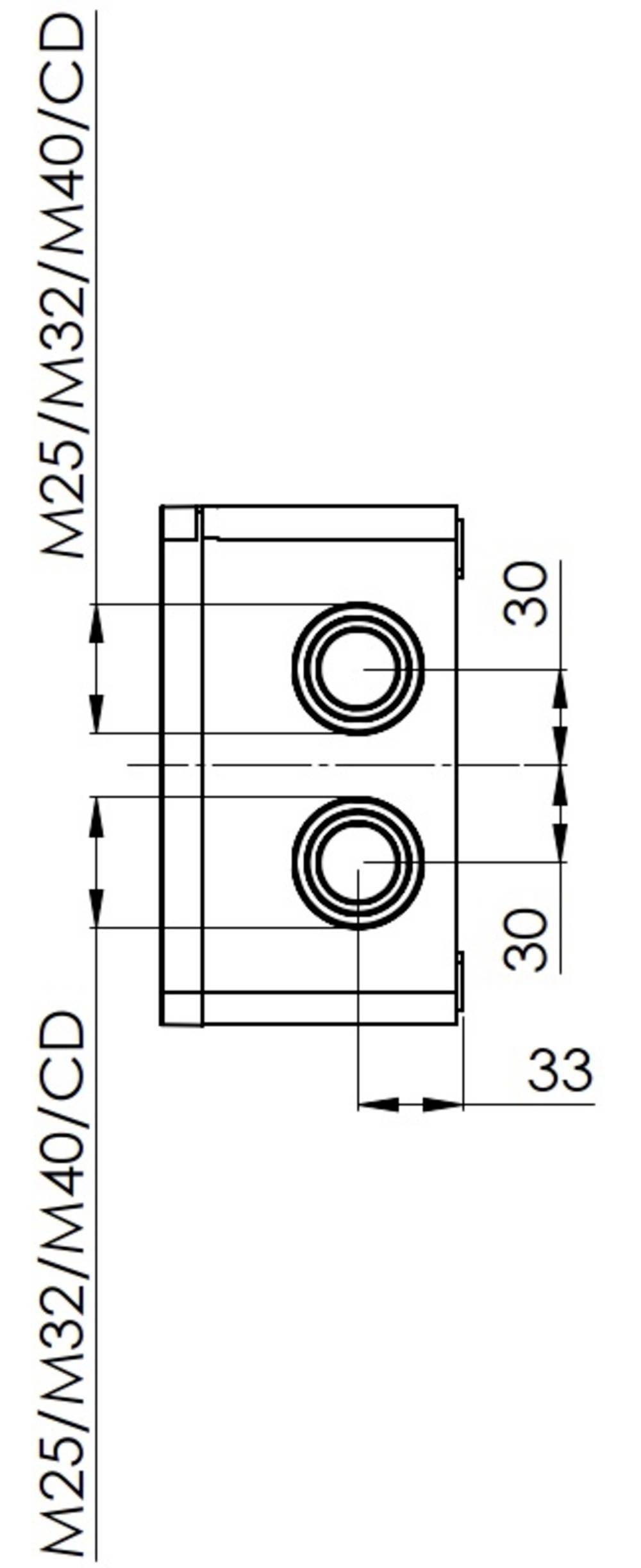

Technical drawing of a mechanical component with dimensions. Shows front view, drill holes and labels 'M25/M32/M40/CD'.

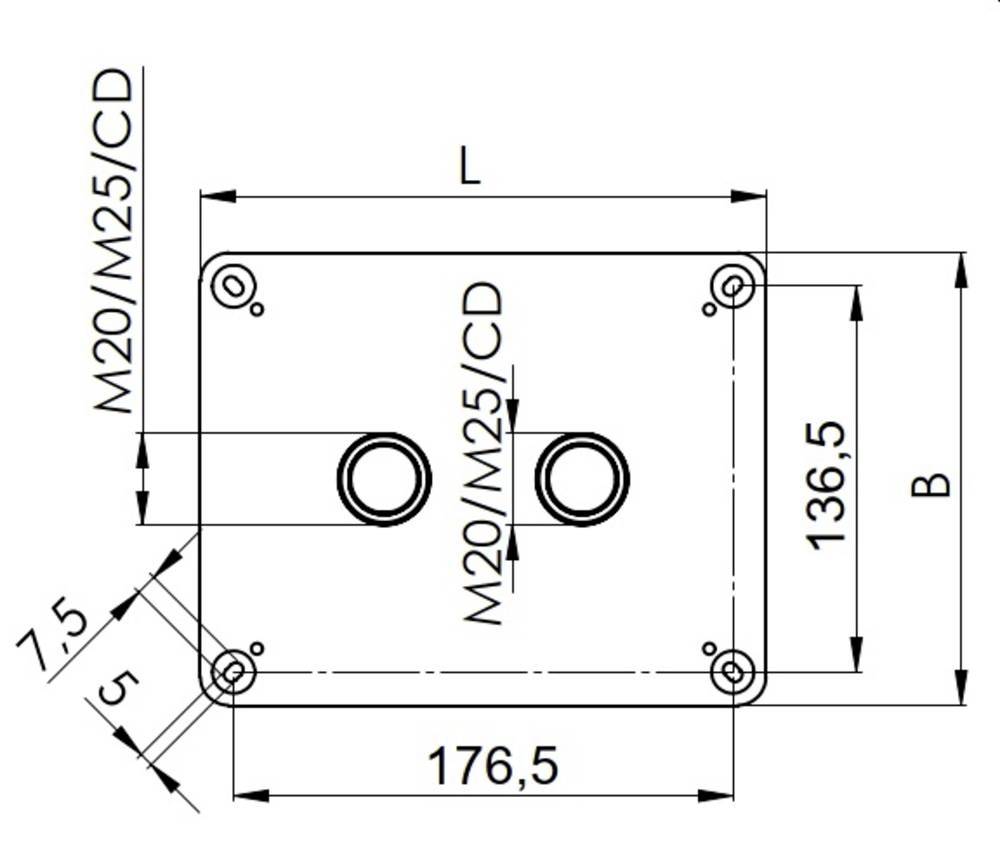

Technical drawing of a rectangular part with two central holes. Labelled with dimensions: Length 176.5 mm, Height 136.5 mm, Width 7.5 mm.

1/4

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 27.99 / piece)

€ 27.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Max. Conductor cross-section 16 mm²
Mounting type: universal
Introduction from behind: Yes
Number of introductions: 12
Type of housing bushing: Prestamped
Cover type: Blind cover, screwed
Pouring: Yes
Rated insulation voltage UI: 690 V.
Weather-resistant: Yes

Product type: Junction box

Factory colour: Grey

: IP66/IP67

Permanent temperature resistance: -25 °C to 40°C °C

Dim: (L x W x H) 200 x 160 x 94 mm

Type: rectangular

Features: Halogen-free
Sealable

Content: 1 pc(s)

Material: Plastic

Width: 160 mm

Height: 94 mm

Length: 200 mm

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Factory colour

Dim

IP rating

Wiska 10060567 Junction box (L x W x H) 110 x 110 x 66 mm Grey IP66/IP67 3 pc(s)

Item no:2480059

Available soon

Conrad Electronic

Grey

(L x W x H) 110 x 110 x 66 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Wiska 10062219 Junction box (L x W x H) 140 x 140 x 72 mm Grey IP67 2 pc(s)

Item no:2480060

Fast track dispatch on Fri 16 Oct

1 Set(s)Conrad Electronic

Grey

(L x W x H) 140 x 140 x 72 mm

IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 39.99^*

Wiska 10101784 Junction box (L x W x H) 160 x 140 x 81 mm Grey IP66/IP67 2 pc(s)

Item no:2480061

Available soon

Conrad Electronic

Grey

(L x W x H) 160 x 140 x 81 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 34.99^*

Wiska 10101785 Junction box (L x W x H) 160 x 140 x 81 mm Grey IP66/IP67 2 pc(s)

Item no:2480062

Available soon

Conrad Electronic

Grey

(L x W x H) 160 x 140 x 81 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Wiska 10102628 Junction box (L x W x H) 110 x 110 x 66 mm Red IP66/IP67 3 pc(s)

Item no:2480063

Available soon

Conrad Electronic

Red

(L x W x H) 110 x 110 x 66 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31.99^*

Wiska 10105991 Junction box (L x W x H) 108 x 98 x 57 mm Grey IP20 5 pc(s)

Item no:2480064

Available soon

Conrad Electronic

Grey

(L x W x H) 108 x 98 x 57 mm

IP20

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Wiska 10105992 Junction box (L x W x H) 108 x 98 x 72 mm Grey 5 pc(s)

Item no:2480065

Available soon

Conrad Electronic

Grey

(L x W x H) 108 x 98 x 72 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Wiska 10106020 Junction box (L x W x H) 105 x 95 x 52 mm Grey IP20 5 pc(s)

Item no:2480066

Available soon

Conrad Electronic

Grey

(L x W x H) 105 x 95 x 52 mm

IP20

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

Wiska 10106840 Junction box (L x W x H) 95 x 95 x 60 mm Red IP66/IP67 5 pc(s)

Item no:2480080

Available soon

Conrad Electronic

Red

(L x W x H) 95 x 95 x 60 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

Wiska 10109674 Junction box (L x W x H) 95 x 95 x 60 mm Grey IP66/IP67 5 pc(s)

Item no:2480082

Available soon

Conrad Electronic

Grey

(L x W x H) 95 x 95 x 60 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.99^*

Documents & Downloads

Datasheet

Datasheet 2480152 Wiska 10110735 Junction box (L x W x H) 200 x 160 x 94 mm Grey IP66/IP67 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2480152 Wiska 10110735 Junction box (L x W x H) 200 x 160 x 94 mm Grey IP66/IP67 1 pc(s)

Description

KOMBI cable junction box made of flame retardant, halogen-free thermoplastic. The box with a high degree of protection is weather and UV-resistant, also shock-proof and break-proof. Ideally suited for extreme stress or installation in indoor and outdoor areas.
The box has 10 openings on the side and 2 in the floor with different diameters.
High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis as well as alcohol.
Captive quick-release cap screws, close the box with only a quarter turn.
