Name: Wiska 10111119 Junction box (L x W x H) 200 x 160 x 94 mm Black IP66/IP67 1 pc(s)
Brand: Wiska
SKU: 2480170
Availability: BackOrder

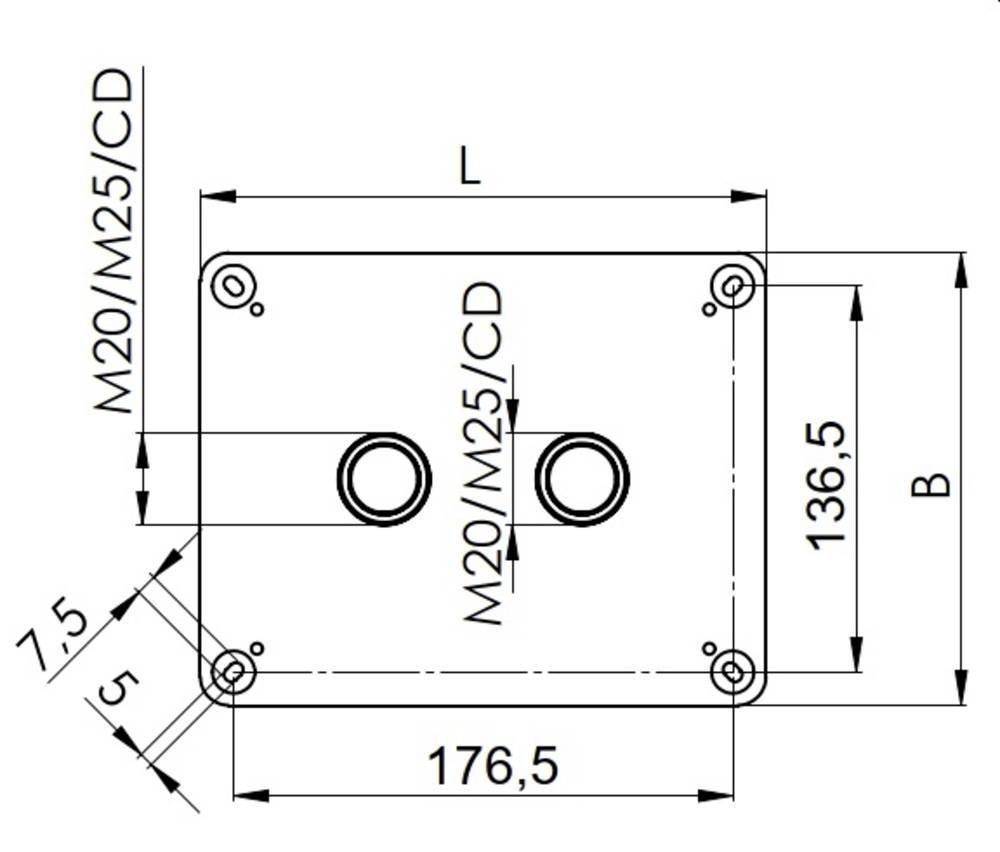

Technical drawing of a rectangular plate with two round openings, dimensions, and labels for M20/M25/CD fixing elements.

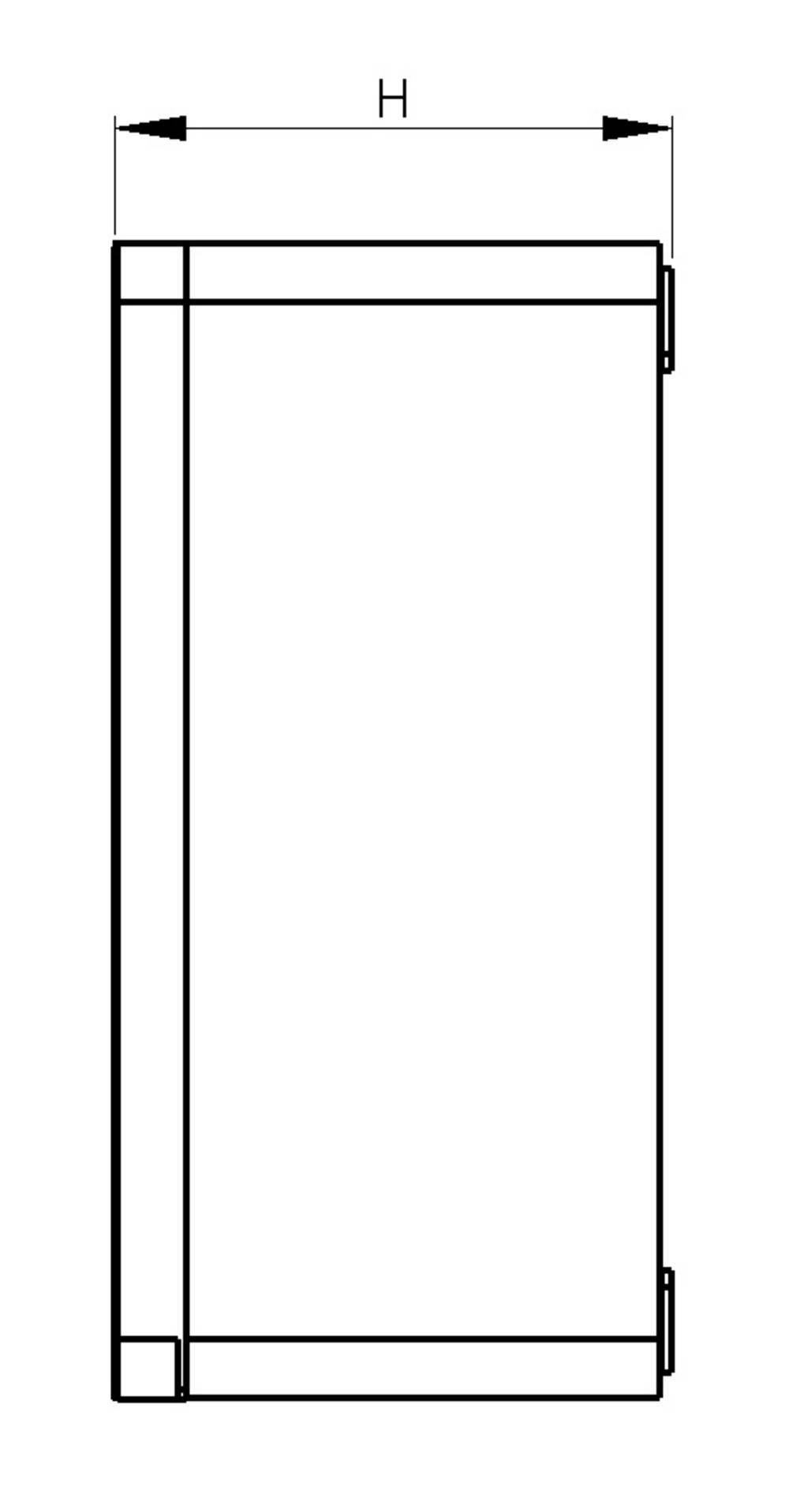

'Technical drawing of a rectangular object with width H, side view, no additional details or dimensions specified.'

1/2

Stroke drawing/circuit diagram

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 28.99 / piece)

€ 34.59

-16 %

€ 28.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Max. Conductor cross-section 16 mm²
Mounting type: universal
Introduction from behind: Yes
Cover design: Blind cover, transparent, screwed
Pouring: Yes
Rated insulation voltage UI: 690 V.
Weather-resistant: Yes

Product type: Junction box

Factory colour: Black

: IP66/IP67

Permanent temperature resistance: -30 °C - +100 °C. °C

Dim: (L x W x H) 200 x 160 x 94 mm

Type: rectangular

Features: Halogen-free
Sealable

Content: 1 pc(s)

Material: Plastic

Width: 160 mm

Height: 94 mm

Length: 200 mm

Variants(All information include VAT, plus shipping costs)

Factory colour

Dim

IP rating

Wiska 10060567 Junction box (L x W x H) 110 x 110 x 66 mm Grey IP66/IP67 3 pc(s)

Item no:2480059

Available soon

Conrad Electronic

Grey

(L x W x H) 110 x 110 x 66 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Wiska 10062219 Junction box (L x W x H) 140 x 140 x 72 mm Grey IP67 2 pc(s)

Item no:2480060

Fast track dispatch on Thu 15 Oct

1 Set(s)Conrad Electronic

Grey

(L x W x H) 140 x 140 x 72 mm

IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 39.99^*

Wiska 10101784 Junction box (L x W x H) 160 x 140 x 81 mm Grey IP66/IP67 2 pc(s)

Item no:2480061

Available soon

Conrad Electronic

Grey

(L x W x H) 160 x 140 x 81 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 34.99^*

Wiska 10101785 Junction box (L x W x H) 160 x 140 x 81 mm Grey IP66/IP67 2 pc(s)

Item no:2480062

Available soon

Conrad Electronic

Grey

(L x W x H) 160 x 140 x 81 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 55.99^*

Wiska 10102628 Junction box (L x W x H) 110 x 110 x 66 mm Red IP66/IP67 3 pc(s)

Item no:2480063

Available soon

Conrad Electronic

Red

(L x W x H) 110 x 110 x 66 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 31.99^*

Wiska 10105991 Junction box (L x W x H) 108 x 98 x 57 mm Grey IP20 5 pc(s)

Item no:2480064

Available soon

Conrad Electronic

Grey

(L x W x H) 108 x 98 x 57 mm

IP20

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Wiska 10105992 Junction box (L x W x H) 108 x 98 x 72 mm Grey 5 pc(s)

Item no:2480065

Available soon

Conrad Electronic

Grey

(L x W x H) 108 x 98 x 72 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Wiska 10106020 Junction box (L x W x H) 105 x 95 x 52 mm Grey IP20 5 pc(s)

Item no:2480066

Available soon

Conrad Electronic

Grey

(L x W x H) 105 x 95 x 52 mm

IP20

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 19.99^*

Wiska 10106840 Junction box (L x W x H) 95 x 95 x 60 mm Red IP66/IP67 5 pc(s)

Item no:2480080

Available soon

Conrad Electronic

Red

(L x W x H) 95 x 95 x 60 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 24.99^*

Wiska 10109674 Junction box (L x W x H) 95 x 95 x 60 mm Grey IP66/IP67 5 pc(s)

Item no:2480082

Available soon

Conrad Electronic

Grey

(L x W x H) 95 x 95 x 60 mm

IP66/IP67

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 41.99^*

Documents & Downloads

Datasheet

Datasheet 2480170 Wiska 10111119 Junction box (L x W x H) 200 x 160 x 94 mm Black IP66/IP67 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2480170 Wiska 10111119 Junction box (L x W x H) 200 x 160 x 94 mm Black IP66/IP67 1 pc(s)

Description

KOMBI wet room cable junction box made of flame retardant, halogen-free, reinforced thermoplastic.
The box with a high degree of protection is weather and UV-resistant, also shock-proof and break-proof. Ideally suited for extreme stress or installation in indoor and outdoor areas.
Its flat side surfaces offer the possibility to drill individual holes. The clear cover makes it easy to detect switching or signaling states.
High resistance to vegetable and animal fats, mineral oil, diesel, weak acids, weak and strong alkalis as well as alcohol.
Permanently elastic, self-sealing, lateral puncture membranes in a patented combination with integrated thread make direct cable mounting possible through the membrane as well as the use of cable glands without counter nut.
Captive quick-release cap screws, close the box with only a quarter turn.
