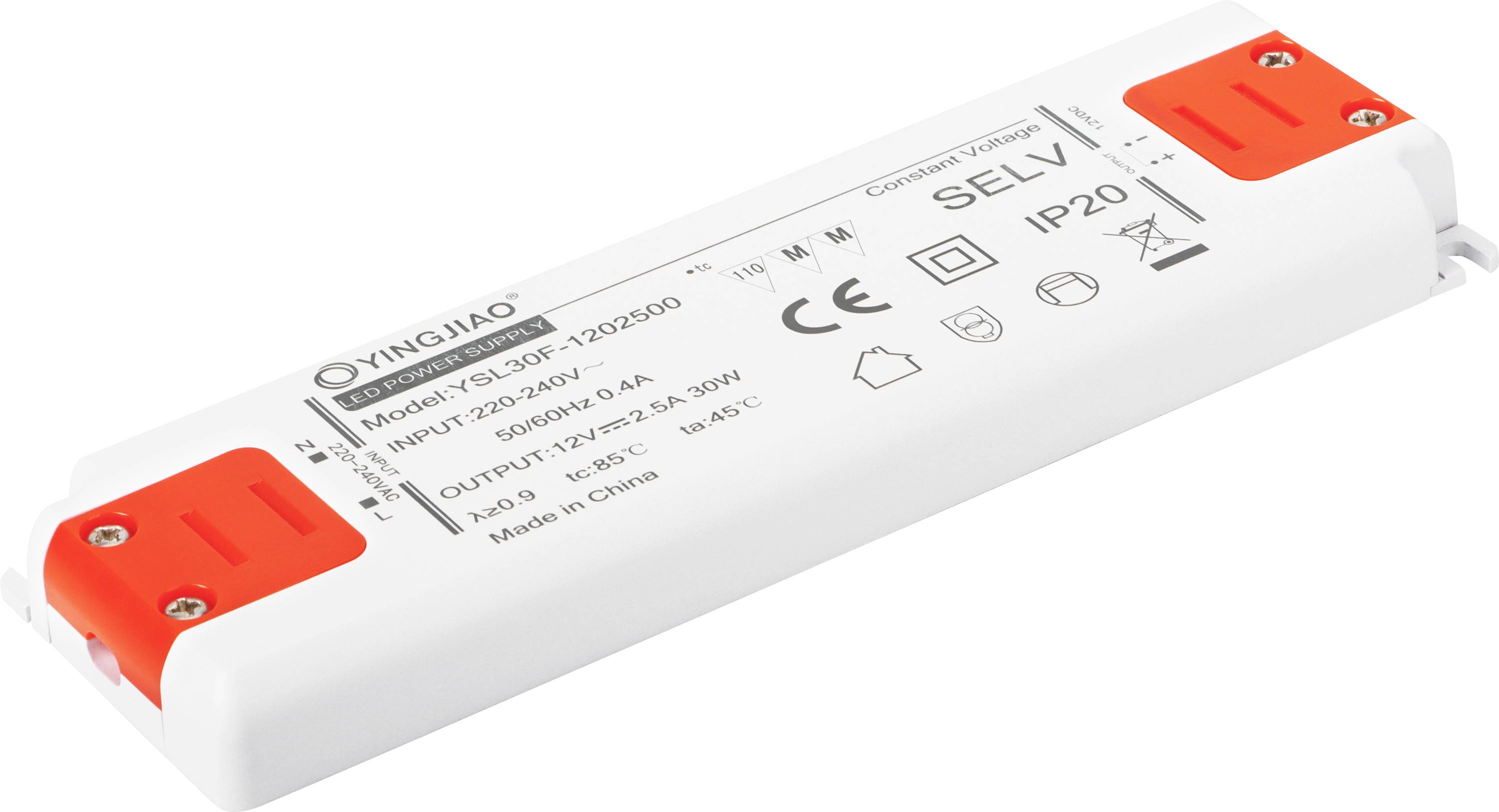

YingJiao YSL30F-1202500 LED driver 30 W 2.5 A 12 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Highlights & Details
YSL30F-1202500
- 12 V
- 2.5 A
Technical specifications
- not dimmable
- Operation maintenance 300000 h
- MTBF 2000000 h
- Product type
LED driver
- Dim
(L x W) 160 mm x 50 mm
- Output voltage (max.)
12 V
- Operating voltage
230 V
- Protection class
IP20
- Connection
Screw terminal
- Max. power
30 W
- No. of outputs
1 x
- Output current (min.)
2.5 A
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Power range
30 W (max)
- Width
50 mm
- Length
160 mm
- Max. temperature
+45 °C
- Min. temperature
-20 °C
- Efficiency
88 %
Documents & Downloads
Datasheet
Datasheet 3435678 YingJiao YSL30F-1202500 LED driver 30 W 2.5 A 12 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3435678 YingJiao YSL30F-1202500 LED driver 30 W 2.5 A 12 V 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
