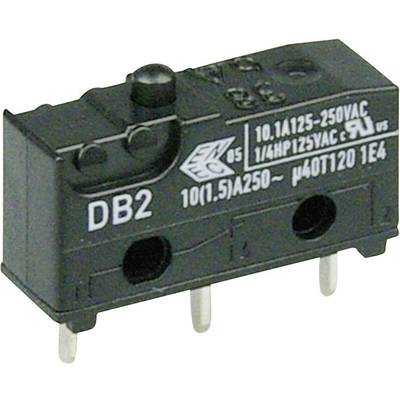

Small black micro switch with three metal pins at the bottom, labelled 'DB2', rated for 10A 125-250VAC on the housing.

Small black micro switch with three metal pins at the bottom, labelled 'DB2', rated for 10A 125-250VAC on the housing.

Datasheet (PDF)

Deutsch (Deutschland)

312 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 2.78 / piece)

€

Report legal concerns

Technical specifications

Functions: momentary

Connection: Print

Operation type: Tappet

Contact type: 1 change-over

Switch position: 1 x On/(On)

Switching voltage: 250 V AC

Switching current (max.): 10 A

Min. temperature: -40 °C

Max. temperature: +120 °C

Content: 1 pc(s)

RoHS-compliant: Yes

Type: DB2C-C1AA

Type: SPDT-CO

Switching current (inductive): 1.5 A

Switching voltage: 250 V AC

Switching current: 10 (1,5) A

Type: DB2C-C1AA

Connection: PCB connection, 1.3 x 0.5 mm

Temperature range: -40 - +120 °C

Product type: Microswitch

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 704101 ZF DB2C-C1AA Microswitch DB2C-C1AA 250 V AC 10 A 1 x On/(On) momentary 1 pc(s)
