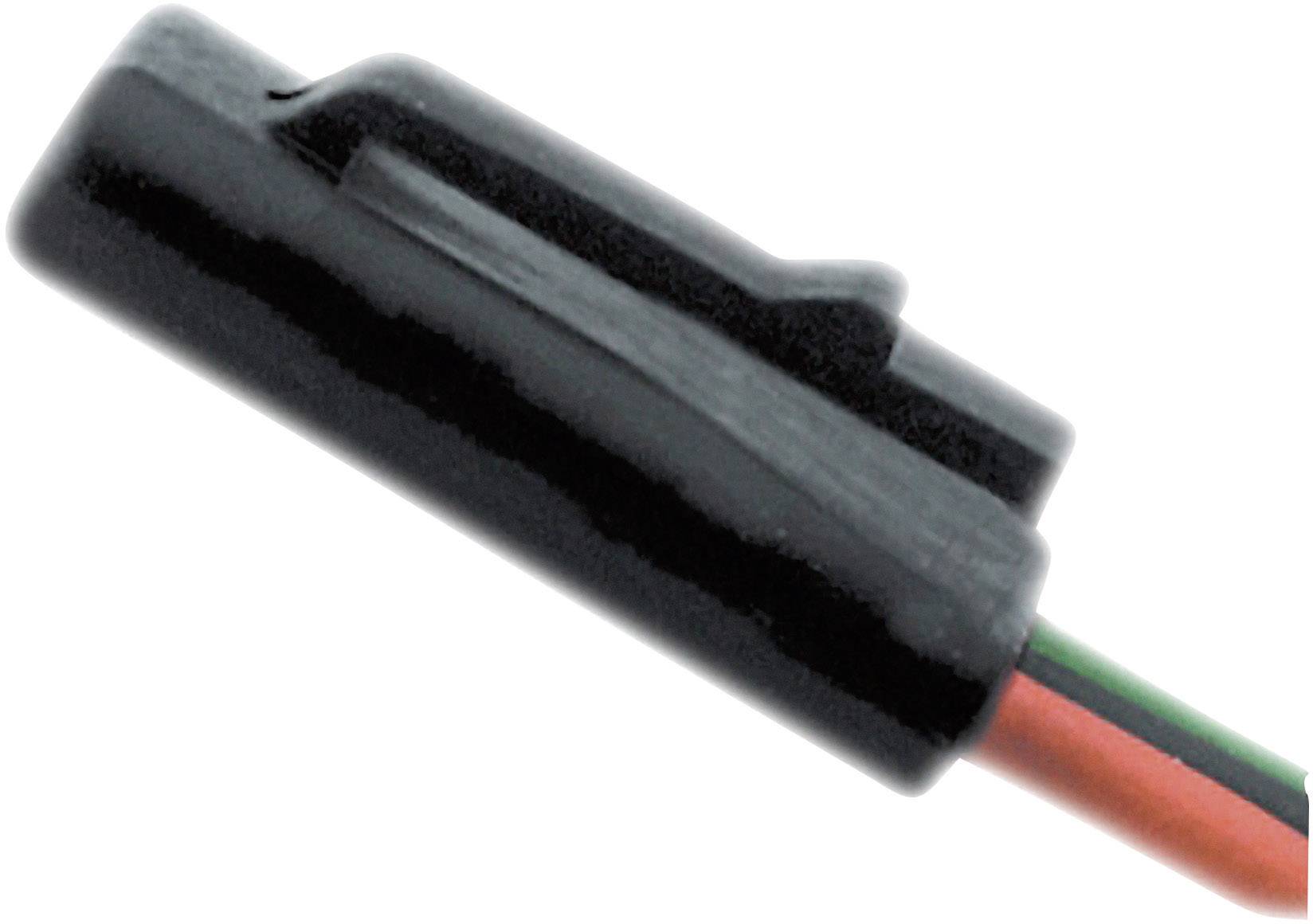

ZF Hall effect sensor MP101301 3.8 - 24 V DC Reading range: +60 - +245 Gs Cable, open end
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Technical specifications
- Output voltage 400 mV
- Output signal: open collector
- Design: unipolar
- Type
MP101301
- Min. operating voltage
3.8 V DC
- Max. operating voltage
24 V DC
- Operating voltage
3.8 - 24 V DC
- Operating current
7.5 mA
- Connector
Cable, open end
- Cable length
15.00 cm
- Reading range (min.)
+60 Gs
- Reading range (max.)
+245 Gs
- Reading range
+60 - +245 Gs
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Length
13.97 mm
- Width
7.75 mm
- Height
4.44 mm
- Dim
(L x W x H) 13.97 x 7.75 x 4.44 mm
- RoHS-compliant
Yes
- Product type
Hall effect sensor
Documents & Downloads
Datasheet
Datasheet 276129 ZF Hall effect sensor MP101301 3.8 - 24 V DC Reading range: +60 - +245 Gs Cable, open end
User & Safety Instructions
User & Safety Instructions 276129 ZF Hall effect sensor MP101301 3.8 - 24 V DC Reading range: +60 - +245 Gs Cable, open end
Description
With convenient snap hook fastening. High reliability Open collector output compatible with bipolar and CMOS logic circuits in connection with a corresponding pull-up resistor. Unipolar switch: output switches to low (Off) when the magnetic field on the sensor exceeds the activation threshold or output switches to high (a) if the magnetic field on the sensor falls below the threshold.
Application: speed detection, door locks, flow measurement.
This text is machine translated.
Application: speed detection, door locks, flow measurement.
This text is machine translated.
Hints
The sensor needs between output (green) and Vcc (red) an external pull-up resistor, the resistance value of the supply voltage depends.
