Aaeon PICO-APL1-A10-N3350-KIT AAEON PICO-APL1 0 GB 2 x 2.0 GHz
EAN:
Part number:
Item no:
Number
Total (€ 256.30 / piece)
€ 256.30
plus VAT.
Highlights & Details
AAEON Kit Pico-ITX Intel Celeron N3350 w/o RAM 0…60°C.
- Intel® Atom ™ E3900 / Pentium® N4200 / Celeron® N3350
- Processor SoC
- DDR3L 1867 MHz SODIMM x 1, up to 8 GB
- Dual-channel 18/24 bit LVDS LCD (optional)
- Supports triple display (optional)
- HDMI 1.4b supports 3840 x 2160 (4K x 2K)
- SATA 6.0 Gbit/s x 1, mSATA (full size) x 1
- Intel® Gigabit Ethernet x 1, RJ-45 x 1
- USB 3.0 x 2, USB 2.0 x 1
- RS-232 x 1, RS-232/422/485 x 1 (optional via cable)
- Mini-Card x 1 (half size)
- Digital I / O 4-bit
- BIO connection for daughter board (optional)
Technical specifications
- Product type
SBC
- Type
AAEON PICO-APL1
- SoC
Celeron® N3350
- Processor
Intel Celeron N3350
- Processor cores (No.)
2 x
0 GB
- Clock speed
2.0 GHz
- Memory type
DDR3
- Operating system (Version)
w/o OS
- Memory capacity
0 GB
- Internal ports
SATA
- External ports
LAN (10/100/1000)
2x USB 3.0
HDMI™
- Wi-Fi
no
- Output voltage
12 V DC
- Output current
0.91 A
- Length
100 mm
- Width
72 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2133932 Aaeon PICO-APL1-A10-N3350-KIT AAEON PICO-APL1 0 GB 2 x 2.0 GHz
Description

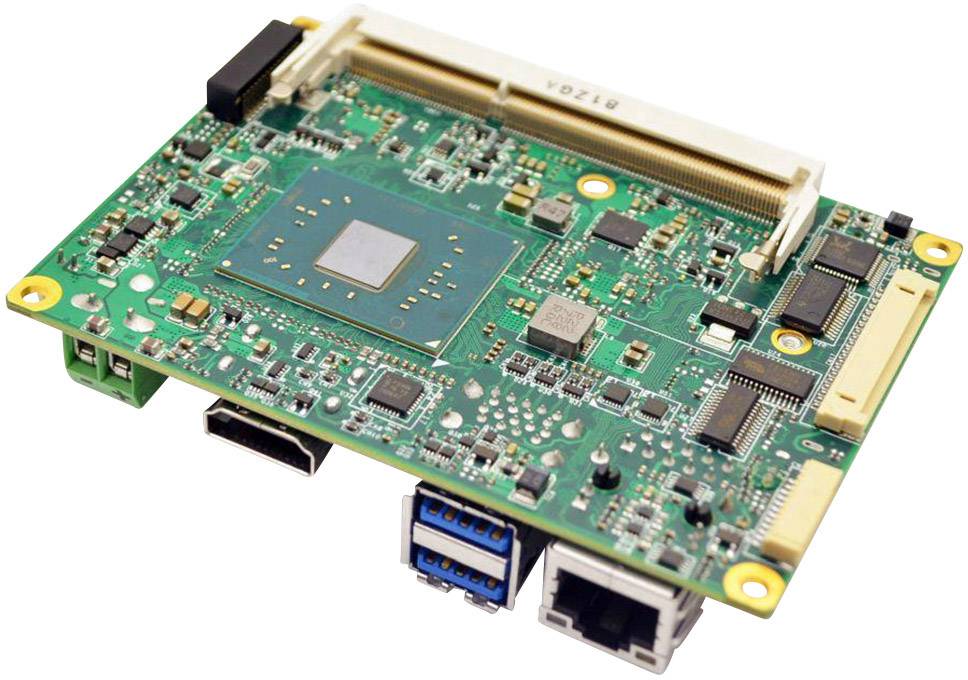

AAEON presents the PICO-APL1 Single Board Computer (SBC) with compact and slim design, fanless operation, large thermal operating range and impressive I/O. Based on the Intel® ATOM ™ / Pentium® / Celeron® processors, the PICO-APL1 is incredibly energy efficient, has exceptionally low power consumption and delivers reliably impressive performance. SATA 3.0, mSATA, and MiniCard expansion slots enable a variety of expansion options in conjunction with a BIO connector for daughter boards. With full triple display support and 4K x 2K HDMI support, the PICO-APL1 is ideal for a wide range of deployment scenarios.
