ACE II Basic Plus Breathalyser 0 up to 4 ‰ Incl. display
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Highlights & Details

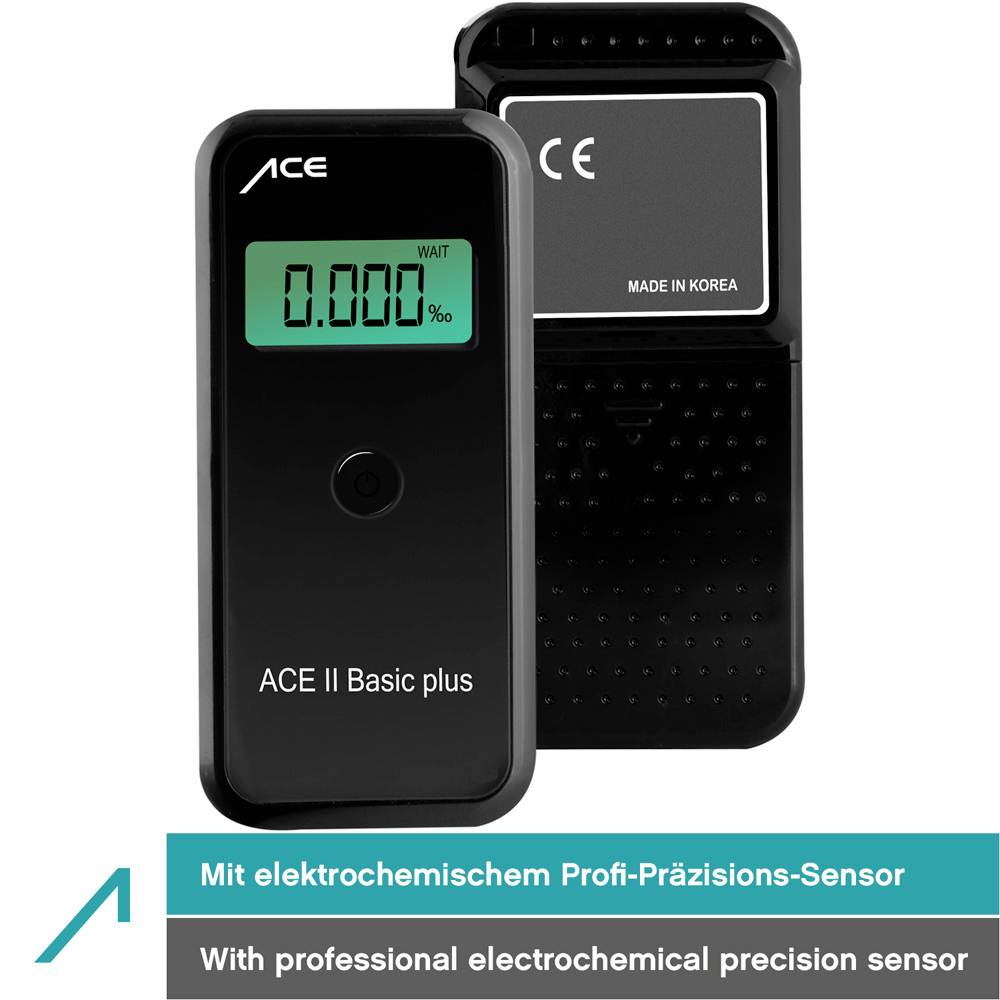

ACE II Breathalyser
- Features highly accurate electrochemical sensor
- Illuminated four-digit display
- Compact design
Technical specifications
- Accuracy class 1
- Dim
(L x W x H) 106 x 50 x 20 mm
- Features
Incl. display
- Accuracy class
1 (pro)
- Weight
100 g
- Content
1 pc(s)
- Calibraton
Yes
- Alcohol level reading range (max.)
4 ‰
- Alcohol level reading range (min.)
0 ‰
- Tolerance ±
0.05 ‰
- Width
50 mm
- Height
20 mm
- Length
106 mm
- Test procedure
Electrochemical sensor
- Power supply
AA battery (2x), included
- Power supply (LOV)
battery-powered
- Product type
Breathalyser
Documents & Downloads
Datasheet
Datasheet 840994 ACE II Basic Plus Breathalyser 0 up to 4 ‰ Incl. display
User & Safety Instructions
User & Safety Instructions 840994 ACE II Basic Plus Breathalyser 0 up to 4 ‰ Incl. display
Information
Information 840994 ACE II Basic Plus Breathalyser 0 up to 4 ‰ Incl. display
Description
The heart of the ACE II is its electrochemical sensor which, by interacting with a flow sensor, ensures that any deviation is minor. This makes the ACE II the equal of the ‘major’ devices when it comes to accuracy. Fits in any shirt or jacket pocket.
Features
- Electrochemical sensor
- Deviation ±0.05 at 1.00%
- Illuminated four-digit display
- Measurement readiness, flow and battery alarm are displayed.

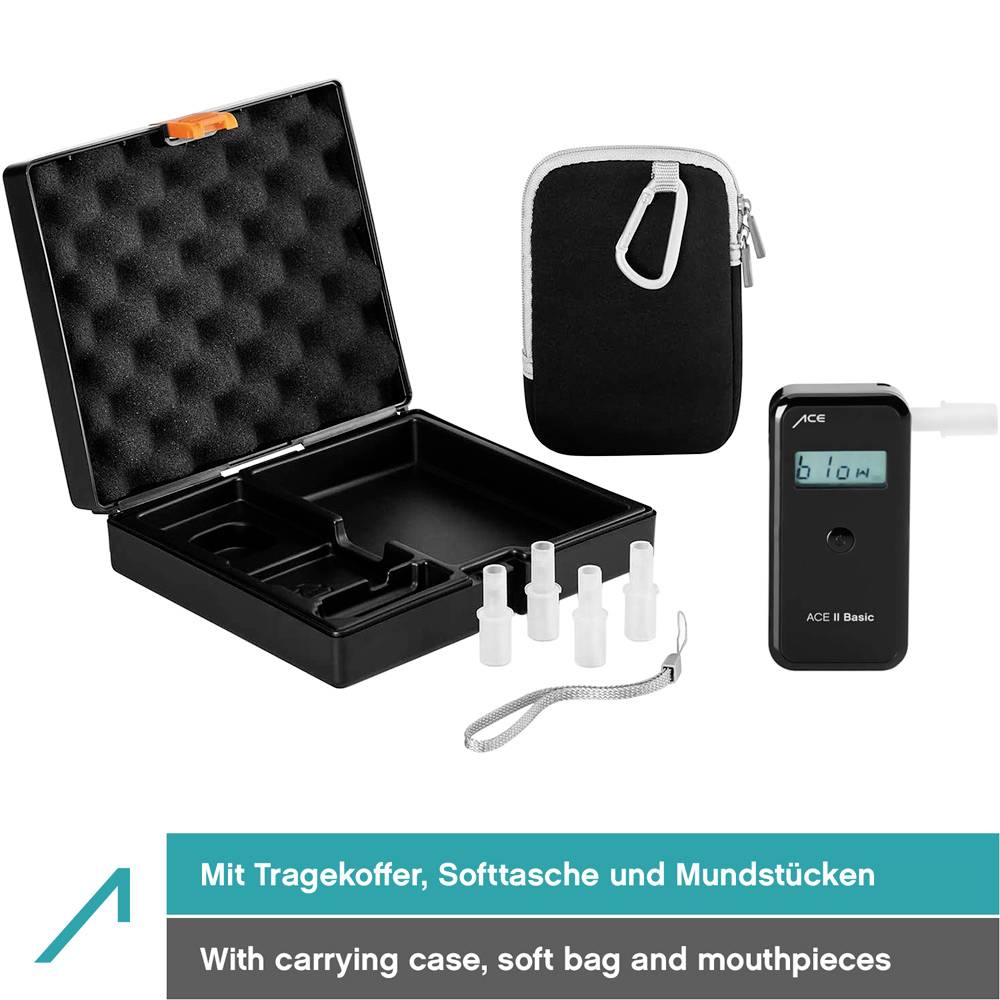

Scope of delivery
- Includes batteries
- Belt pouch with snap hook
- 5 mouthpieces
- Plastic case (it can be used to carry a series AL6000 device too).
Hints
The measurement is only given as an approx. indication and should not be taken as confirmation of fitness to drive. This also applies to the use of machinery or any other activities that are dangerous or prohibited when under the influence of alcohol.
