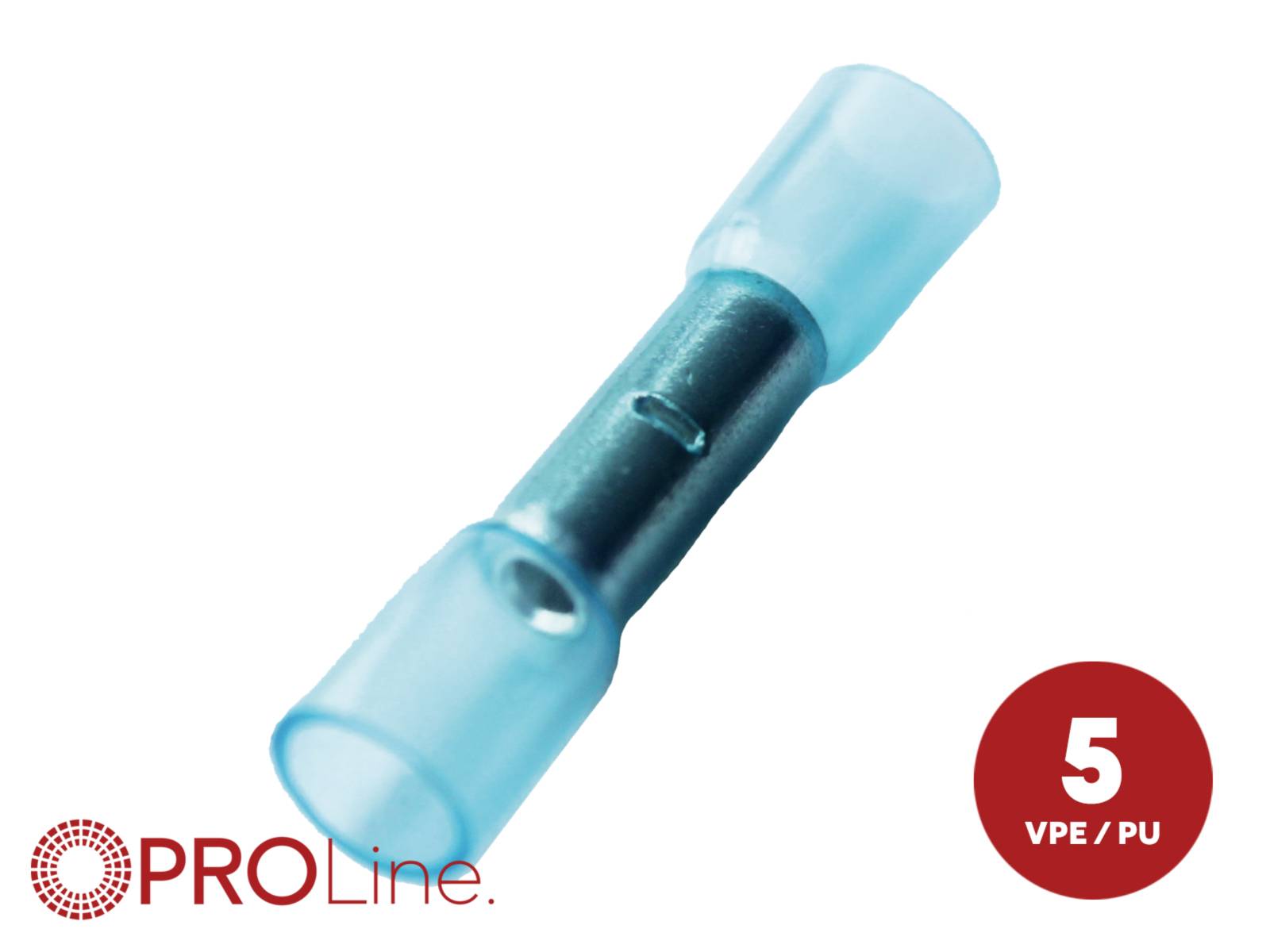

ACV 347323-1-5-p Butt joint Insulated Blue 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Butt joint
Pin length
12.0 mm
Insulation type
Insulated
Content
1 pc(s)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
5
5% = € 0.13
€ 2.38
10
7% = € 0.18
€ 2.33
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
Only 2 Piece(s) available
Highlights & Details
ACV 347323-1-5-p cable lug with 35.0 mm pin length, 12.0 mm pin length, insulated, blue tin plated
- Pin length: 12.0 mm
Technical specifications
- Packaging type
Piece
- Product type
Butt joint
- Pin length
12.0 mm
- AWG (min.)
16
- AWG max.
14
- Insulation type
Insulated
- Factory colour
Blue
- Insulation material
Nylon (NL)
- Length
35.0 mm
- Manufacturer part #
347323-1-5-p
- Type
347323-1-5-p
- Content
1 pc(s)
- RoHS-compliant
Yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3595175 ACV 347323-1-5-p Butt joint Insulated Blue 1 pc(s) Piece
Description
This pin cable lug serves as insulated butt connector for connecting and flexible conductors in electrical components. The installation is done by inserting the stripped conductor ends in the sleeve and heating the outer sleeve. This causes the nylon to pull together and the inner adhesive to flow, creating a solid, moisture resistant compound. The rigid pin protrudes from the insulated body and makes possible direct contact with terminal guides or distribution boxes. The tin-plated copper contact ensures conductivity and minimizes oxidation. Typical application areas are the wiring of distribution boxes, switch cabinets and field connections, where a compact, heat-activated, insulated pin terminal is needed.
This text is machine translated.
This text is machine translated.
Features
- Length: 35.0 mm
- Pin length 12.0 mm
- Tap length up to 7.5 mm center stop
- Wire cross-section: 1.5 mm²–2.5 mm²
- AWG range: 16–14
- Insulation: Nylon (NL), factory color: Blue
- Contact material: Tin-plated copper
- Temperature range: -55 °C to +125 °C
