Name: ACV Car audio replacement rod aerial
Brand: ACV
SKU: 3594973
Availability: InStock

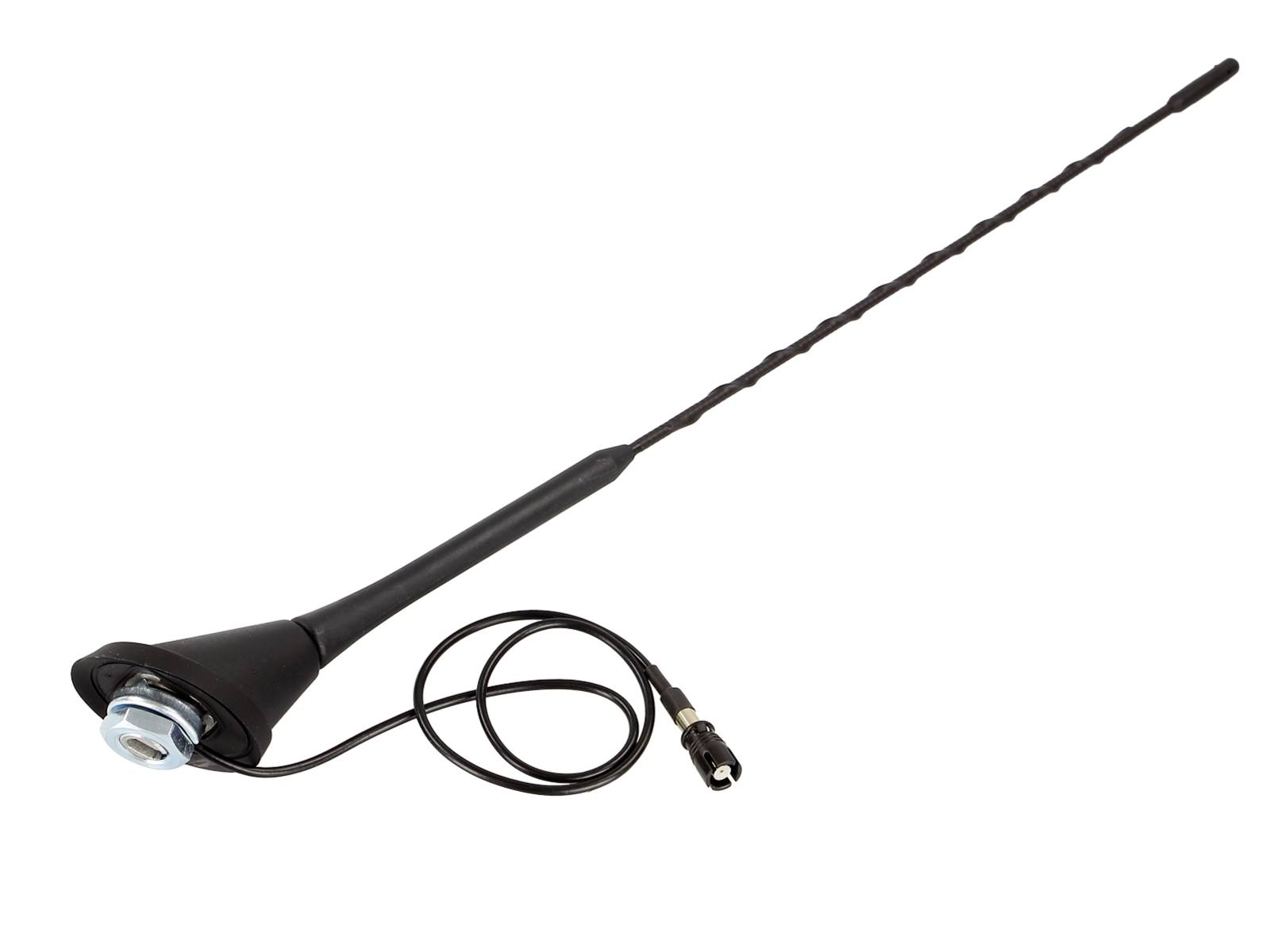

Black car antenna with long whip and coiled cable, shown on a white background.

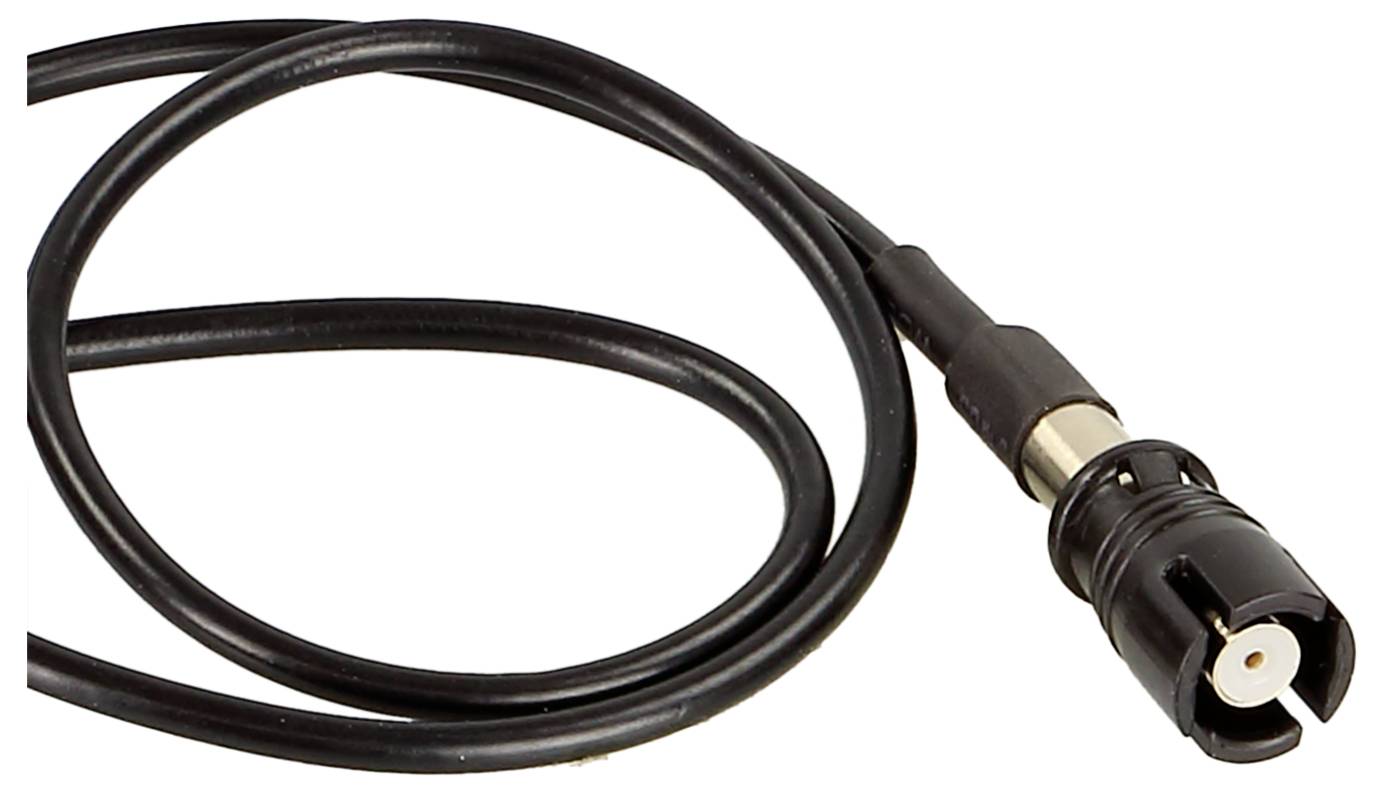

Black coaxial cable with a connector plug on one end, shown coiled on a white background.

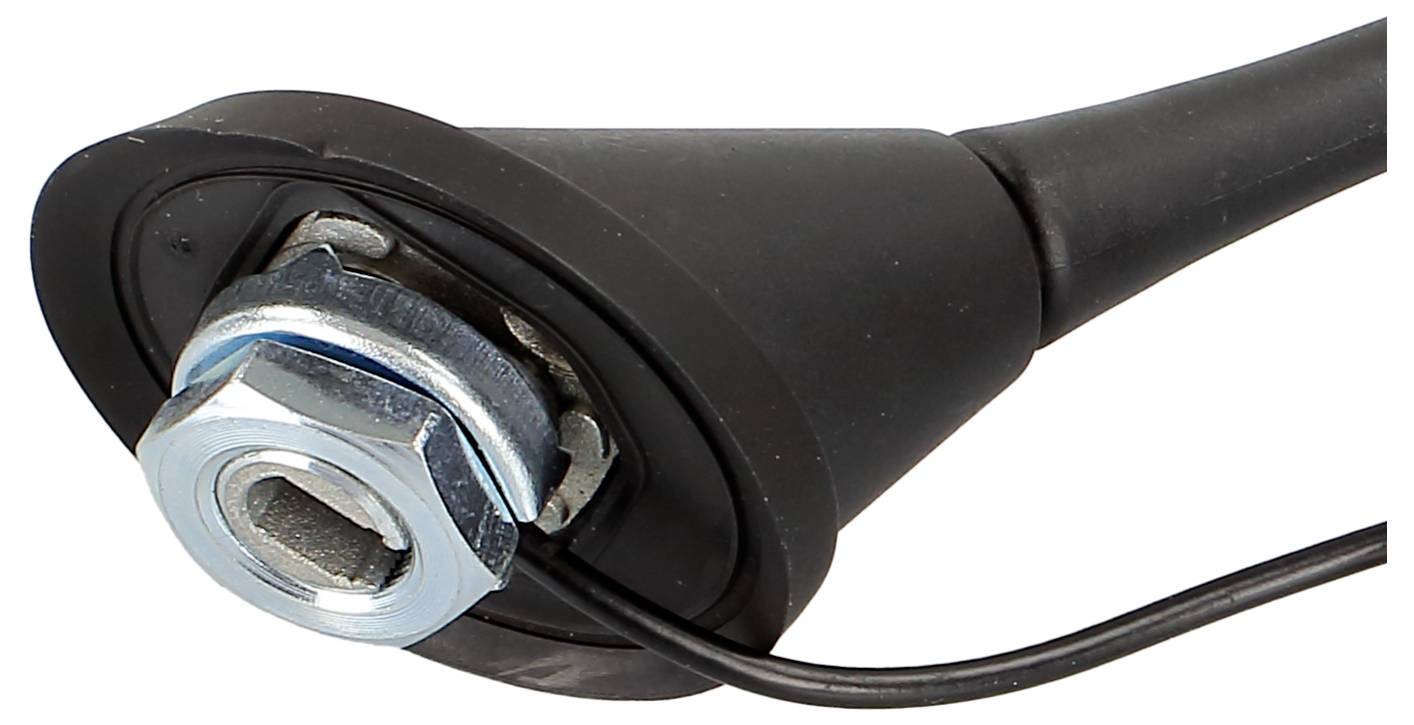

Close-up of a black cable or antenna base with a silver hex nut and washer, showing the mounting point and attached wire.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Wed 11 Nov

7 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ACV 151324-01 car antenna 440 mm +12 V Phantom power for outdoor AM/FM ACV PRO 16 V

The FM/AM reception function offers a combined frequency range for vehicle audio systems and enables access to a variety of stations.
The +12-V phantom power supply allows the antenna to be powered via the vehicle battery for active reception improvement. The compact housing with a width of 43 mm enables the mounting even at cramped places in the roof lining or outdoors and at the same time ensures an aerodynamic shape. The short cable simplifies the integration in vehicle radios near the antenna attachment and reduces the cable effort.

Technical specifications

Product type: Car audio replacement rod aerial

Type: ACV PRO; 16 V

Suitable for: Outside

Length: 440 mm

Width: 43 mm

Dim: (L x W) 440 mm x 43 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3594973 ACV Car audio replacement rod aerial

Description

This car antenna converts the radio frequency signals into electrical audio signals for vehicle radios and receives both AM and FM signals. It is designed for the external installation and is connected to the on-board network of the vehicle. The integrated phantom-feed supplies the active circuit with current, as soon as 12 V is applied. The installation usually includes the attachment of the antenna body to an exterior surface, the routing of the cable into the passenger compartment and the connection to the radio connector. The short cable minimizes the effort for internal cable routing. During operation, the antenna optimizes the received radio signals and transmits the converted signal to the car radio. It supports standard reception of car radios and is suitable for exchange as well as for retrofitting, if an external FM/AM antenna is needed.
