ADDA AD0405MB-G7B(Y43NS) Axial fan 5 V DC 8.5 m³/h (L x W x H) 40 x 40 x 10 mm

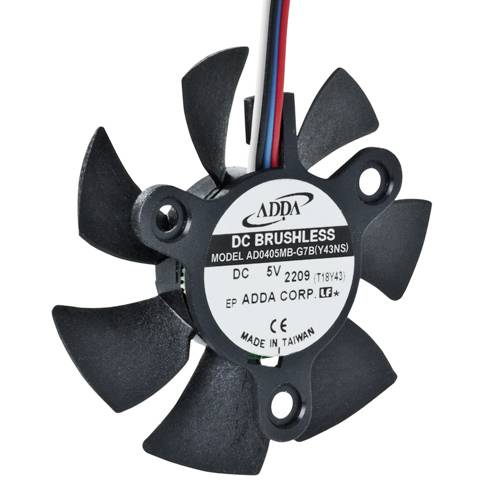

Small fan with seven blades, marked as 'DC Brushless, Model AD0405MB-G7B'. Suitable for electronic cooling.
Product type
Axial fan
Nominal voltage
5 V DC
Type of bearing
Ball bearing
Air flow rate
8.5 m³/h
Length
40 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
22 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 17.99 / piece)
€ 17.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

ADDA frameless axial fan 40 x 40 x 10 mm

  • 5VDC, tachometer output, PWM input

Technical specifications

Product type

Axial fan

Type

AD0405MB-G7B(Y43NS)

Nominal voltage

5 V DC

Type of bearing

Ball bearing

Noise emission (max.)

22 dBa

Air flow rate

8.5 m³/h

Factory colour

Black

Min. temperature

-10 °C

Max. temperature

+70 °C

Length

40 mm

Width

40 mm

Height

10 mm

Dim

(L x W x H) 40 x 40 x 10 mm

Documents & Downloads

Datasheet

Datasheet 3281779 ADDA AD0405MB-G7B(Y43NS) Axial fan 5 V DC 8.5 m³/h (L x W x H) 40 x 40 x 10 mm

User & Safety Instructions

User & Safety Instructions 3281779 ADDA AD0405MB-G7B(Y43NS) Axial fan 5 V DC 8.5 m³/h (L x W x H) 40 x 40 x 10 mm

Description

Frameless axial fan for integration in heat sink, with ball bearings for long service life.
