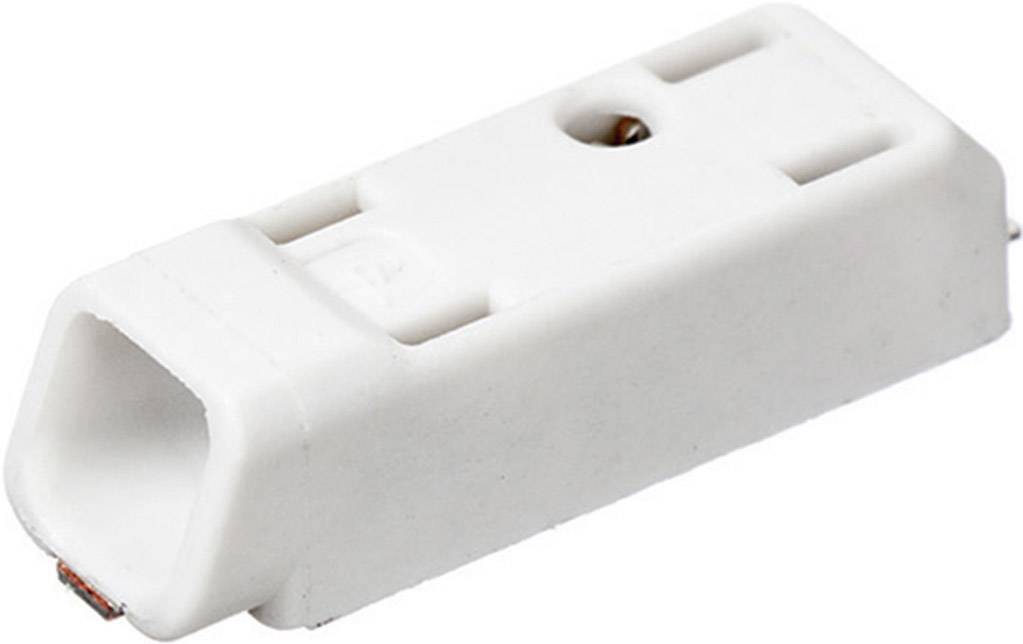

Adels-Contact 351101 Spring-loaded terminal 0.75 mm² Number of pins 1 White 1 pc(s)
Product type
Spring-loaded terminal
CS
4 mm
Pins per row
1
Number of pins
1
Connection
Spring-loaded terminal
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Total (€ 0.32 / piece)
€ 0.32
incl. VAT
14-day return policy included
Highlights & Details
Spring-loaded terminal
- Content 1 pc(s)
Our service for you
Technical specifications
- Type
SMDflat 345/1
- Product type
Spring-loaded terminal
- CS
4 mm
- No. of rows
1
- Pins per row
1
- Number of pins
1
- Min. stripping length
8 mm
- Stripping length (max.)
9 mm
- Connection
Spring-loaded terminal
- Nominal current
9 A
- Cross section (flexible) (min.)
0.20 mm²
- Nominal current - rounded value
9 A
- Cross section (inflexible) (min.)
0.20 mm²
- Cross section (flexible) (max.)
0.75 mm²
- Cross section (inflexible) (max.)
0.75 mm²
- AWG (min.)
24
- Connector orientation
Parallel (to the PCB)
- AWG max.
18
- Contact material
Copper
- Enclosure material
Polyamide 6.6
- Factory colour
White
- Wire protection
Yes
- Actuation direction
Perpendicular (to the PCB)
- Manufacturer part #
351101
- Content
1 pc(s)
- Nominal voltage
600 V
- Width
13.10 mm
- Height
3.90 mm
- Length
3.45 mm
Documents & Downloads
Datasheet
Datasheet 1232738 Adels-Contact 351101 Spring-loaded terminal 0.75 mm² Number of pins 1 White 1 pc(s)
