Akyga AK-EC-18 eMobility charging cable 5 m
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Number of phases: 1 phase
- Max. Current 16 A.
- Mounted socket: Silver
- Product color: Blue
- Product dimensions (L x W x H) 390 x 390 x 90 mm
- Net weight: 1.74 kg
- Grounding: Yes
- Cable length: 5 m
- Socket #1: CEE 7/7

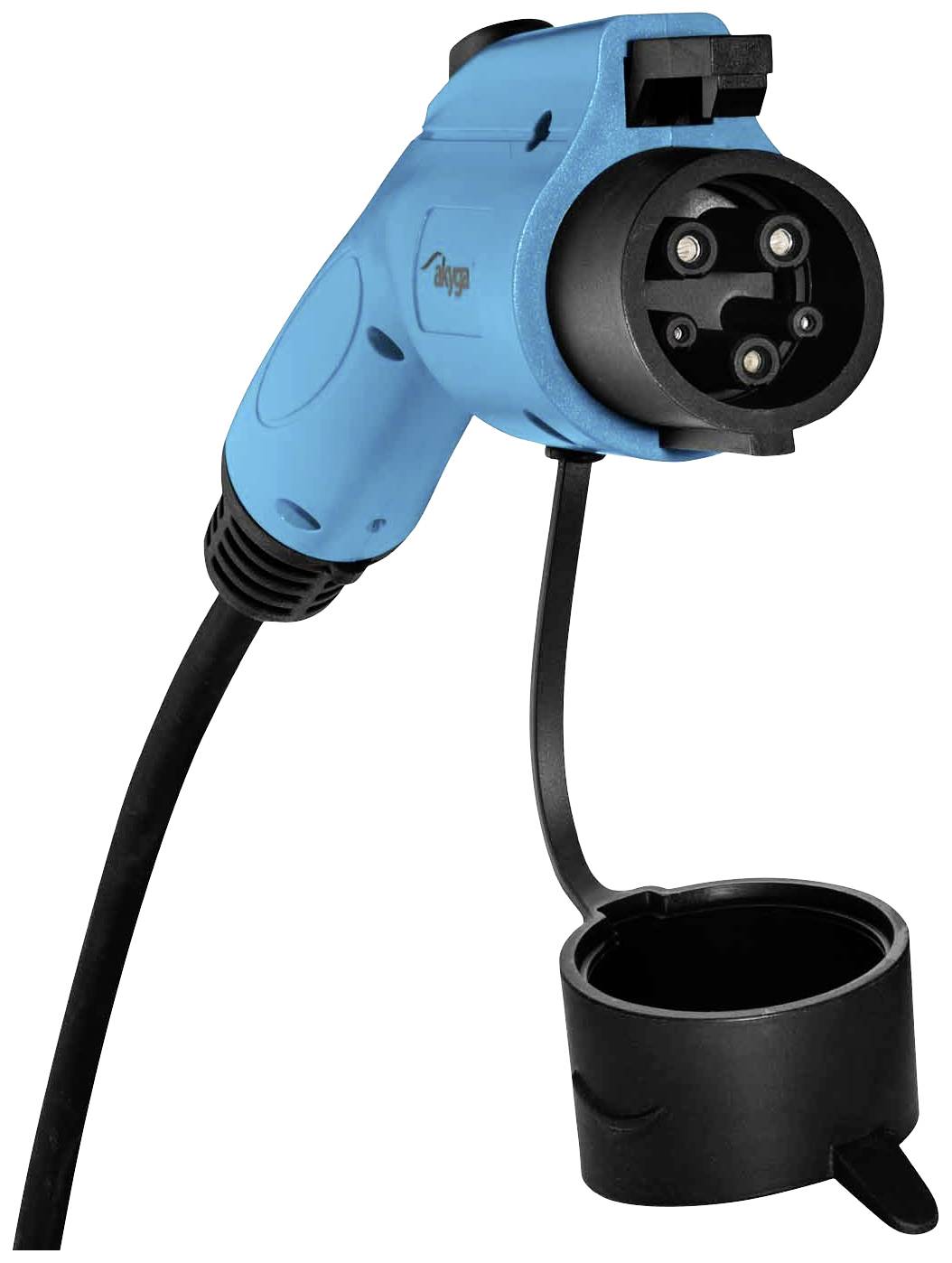

- Socket #2: Type 1 (J1772) socket
- Material of the cable: Copper
- Cable diameter 3 x 2.5 mm2 + 1 x 0.5 mm2
- Packaging dimensions (L x B x H) 430 x 400 x 100 mm
- Gross weight: 2.36 kg
- Power supply voltage 110-250 V/50/60 Hz
- Maximum power: 3.8 kW
- OVP fuse: Yes
- OCP Backup: Yes
- OTP fuse: Yes
- Operating temperature -30 to +50 °C
- Packaging: EcoBox
- Manufacturing material: ABS
- OPP fuse: Yes
- SCP fuse: Yes
- Henkel on the padlock: Yes
- Flame protection UL94V-0
- IP rating: IP54
- Insulation material TPE
- Display: Yes
- MTBF 10000 h
- Accessories included: Protective pouch
- Product type
eMobility charging cable
- Type A
PG plug
- Type B
Type 1 (J1772) socket
- No. of phases
1-phase
- Charging mode
Mode 1
- Cable length
5 m
- Nominal voltage
250 V AC
- Nominal current
16 A
- Nominal current - rounded value
16 A
IP54
- Charging capacity
3.8 kW
- Factory colour
Blue
Copper
- Weight
1.74 kg
Documents & Downloads
Datasheet
Datasheet 3137212 Akyga AK-EC-18 eMobility charging cable 5 m
User & Safety Instructions
User & Safety Instructions 3137212 Akyga AK-EC-18 eMobility charging cable 5 m
Description

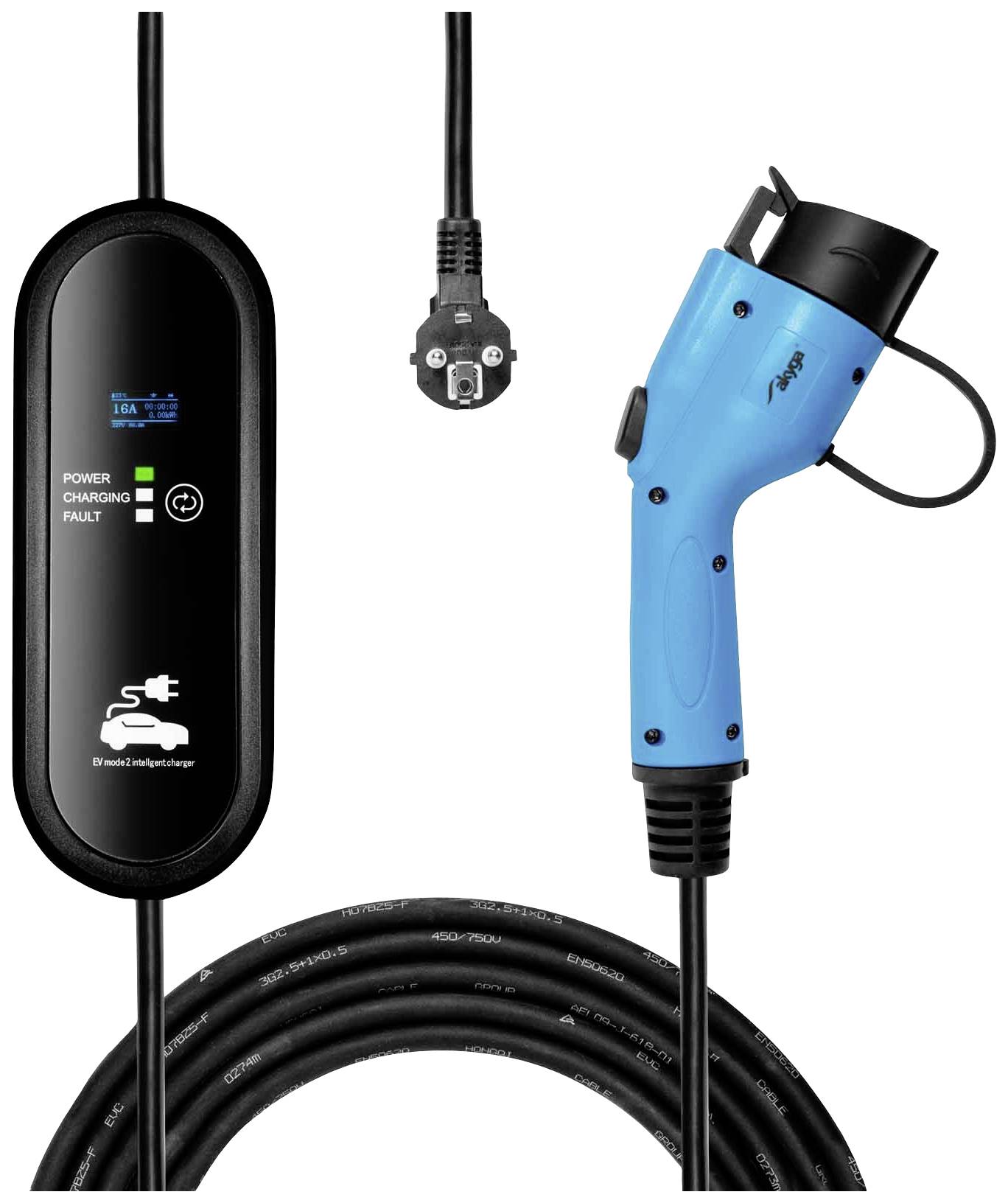

The Akyga® AK-EC-18 is a single-phase charger for electric cars. It enables the charging of vehicles with a type1 plug via a normal household socket. The EV charger is equipped with a Schuko plug (CEE 7/7). This standard is used in most European countries and makes the charger a practical and universal solution for users of older or imported electric vehicles from overseas.
The charger AK-EC-18 for electric cars also possesses a 5 meter cable. It offers ample flexibility when connecting the vehicle for charging. In combination with the compact design of the battery charger, this device is the ideal support for owners of electric cars.
The heart of the charger is the easy-to-use ControlBox, which monitors and displays the current charging parameters on an LCD-display. This includes data such as charging current, voltage, power consumption, energy consumption, charging temperature and charging time. Moreover, the user can set the charging power by selecting one of the available current values (8 A, 10 A, 13 A, 16 A), with the maximum charging power being 3.8 kW.
The charger is also equipped with comprehensive safety devices (OVP, OCP, OPP, OTP, SCP), that protect both the device and the car battery from damage. There is also a grip on the housing with which the charger can be practically suspended, for example in the garage.
This text is machine translated.
The charger AK-EC-18 for electric cars also possesses a 5 meter cable. It offers ample flexibility when connecting the vehicle for charging. In combination with the compact design of the battery charger, this device is the ideal support for owners of electric cars.
The heart of the charger is the easy-to-use ControlBox, which monitors and displays the current charging parameters on an LCD-display. This includes data such as charging current, voltage, power consumption, energy consumption, charging temperature and charging time. Moreover, the user can set the charging power by selecting one of the available current values (8 A, 10 A, 13 A, 16 A), with the maximum charging power being 3.8 kW.
The charger is also equipped with comprehensive safety devices (OVP, OCP, OPP, OTP, SCP), that protect both the device and the car battery from damage. There is also a grip on the housing with which the charger can be practically suspended, for example in the garage.
This text is machine translated.
