Akyga AK-SC-E08 Charging cable adapter Flame-retardant
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Only 6 Piece(s) available
Technical specifications
- Maximum power: 8 kW
- Product color: Black
- Operating temperature -30 to +50 °C
- Product dimensions (L x W x H) 59 x 61 x 163 mm
- Supply voltage 250 V
- Max. Current 32 A.
- Flame protection UL94V-0
- IP rating: IP55

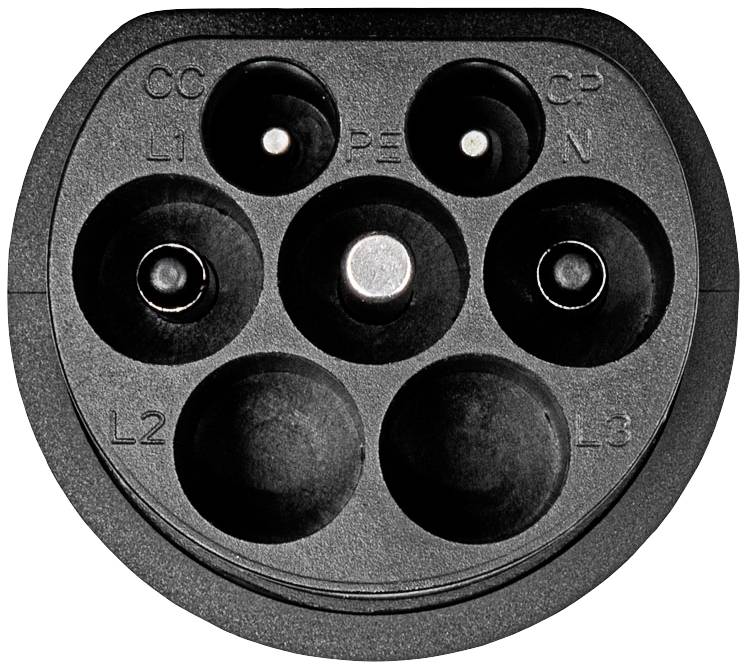

- Connection 1: Type 2 (IEC 62196-2) plug

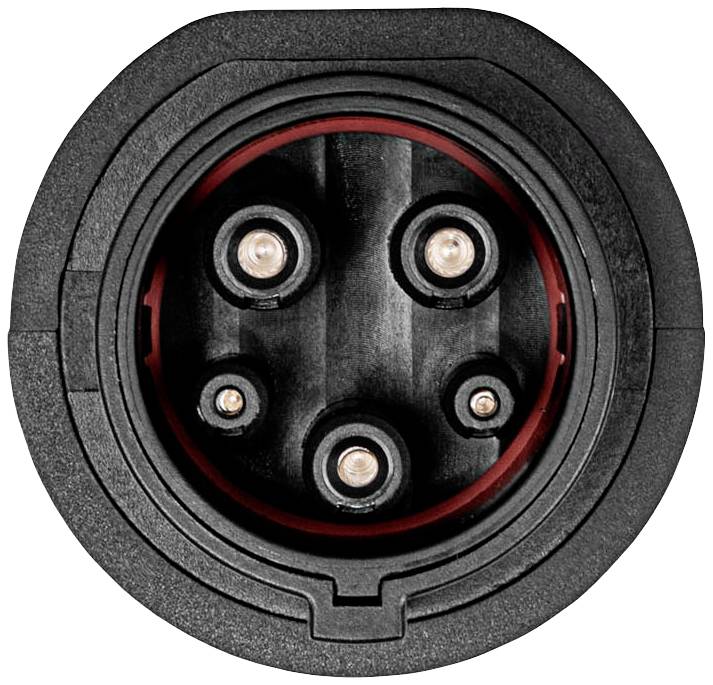

- Connection 2: Type 1 (J1772) socket
- Contacts: Silver
- Manufacturing material TPE
- Number of phases: 1 phase
- Product type
Charging cable adapter
- Type A
Type 2 (IEC 62196-2) plug
- Type B
Type 1 (J1772) socket
- No. of phases
1-phase
- Cable features
Flame-retardant
- Nominal voltage
250 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
IP55
- Min. temperature
-30 °C
- Max. temperature
+50 °C
- Charging capacity
8 kW
- Charging current
32 A
- Factory colour
Black
- Weight
291 g
Documents & Downloads
Datasheet
Datasheet 2865343 Akyga AK-SC-E08 Charging cable adapter Flame-retardant
User & Safety Instructions
User & Safety Instructions 2865343 Akyga AK-SC-E08 Charging cable adapter Flame-retardant
Description

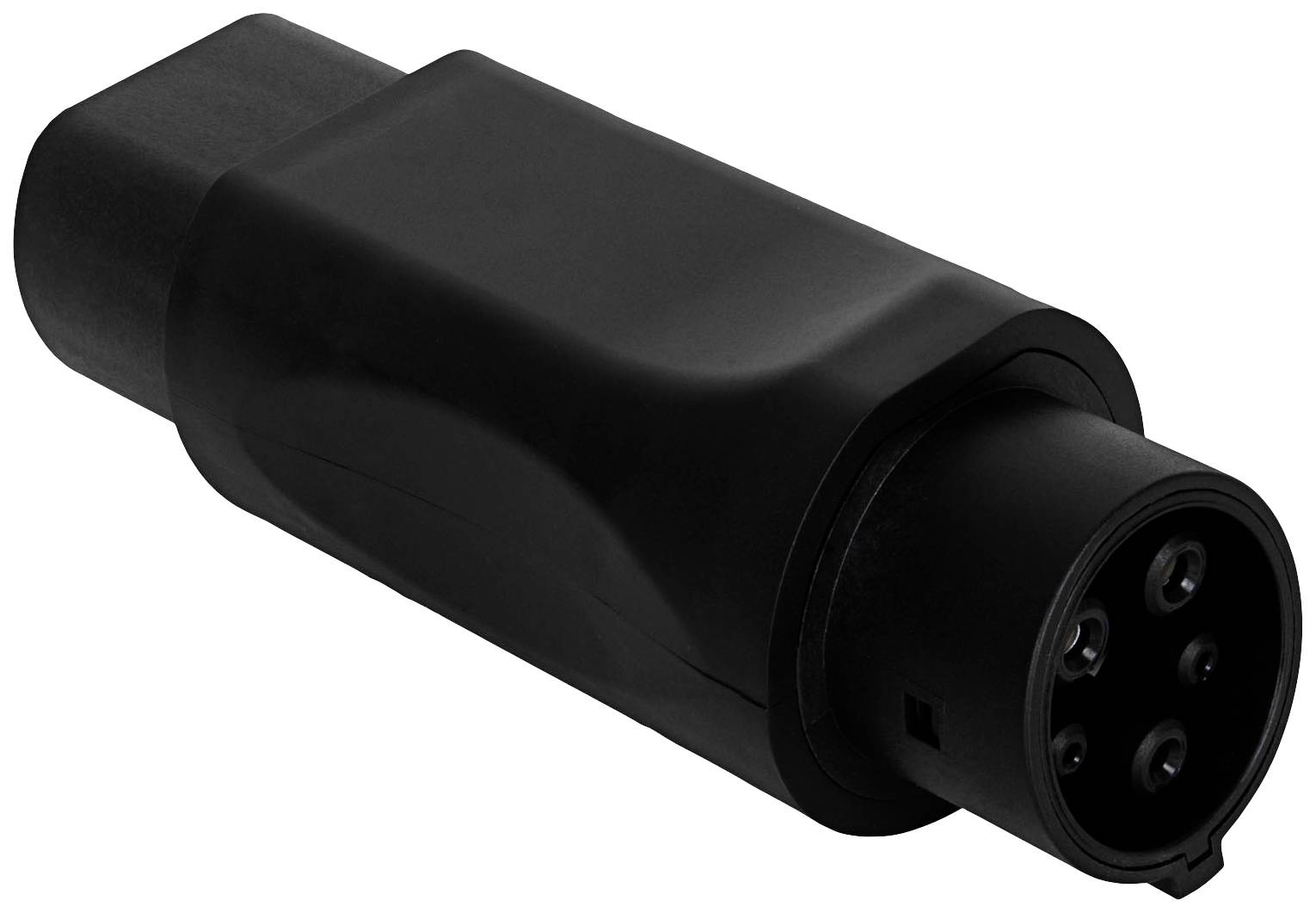

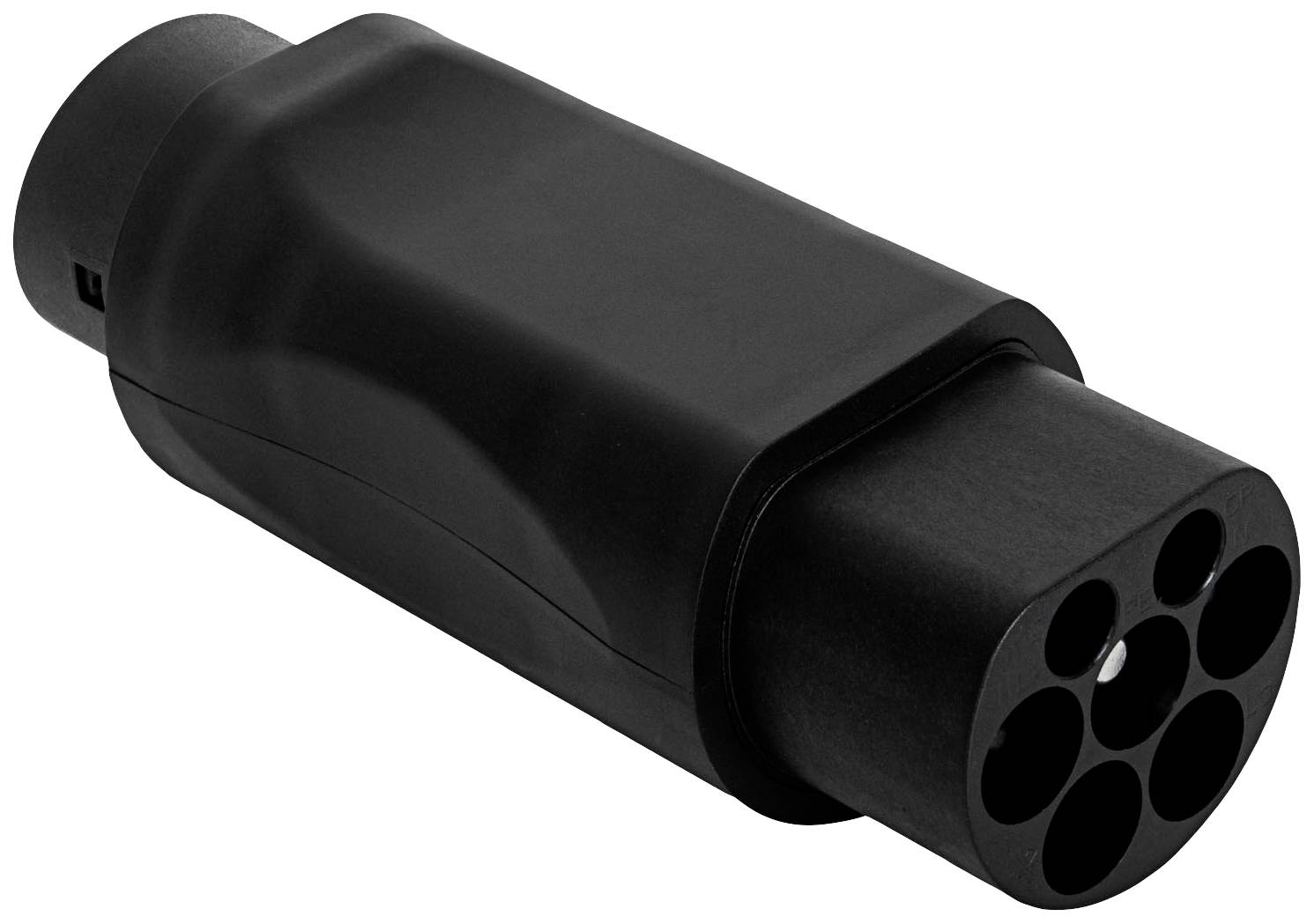

The Akyga AK-SC-E08 adapter is used to convert a Type 2 connector to a Type 1 connector. On one side of the adapter there is a standard type 2 socket that matches most EV chargers on public charging stations in Europe. On the other side there is a type 1 connector that can be used to charge electric vehicles with the J1772 socket found on older and overseas imported vehicles. In addition, the adapter is made from high-quality materials, which guarantee a long life and a trouble-free operation.
