Akyga AK-TB-16 Mains PSU (fixed voltage) 5 V 3 A 15 W

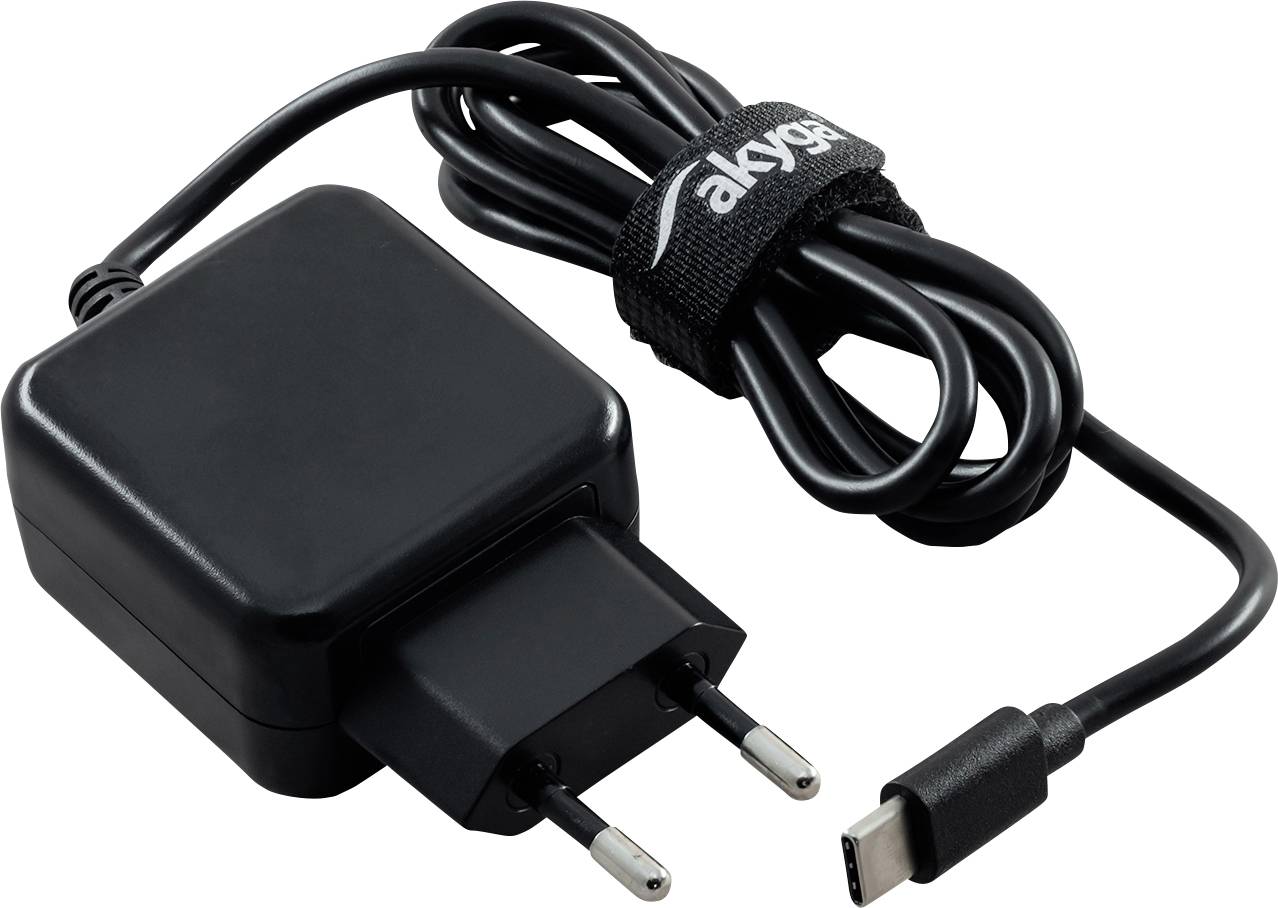

Black USB-C charger with power adapter and cable on white background.

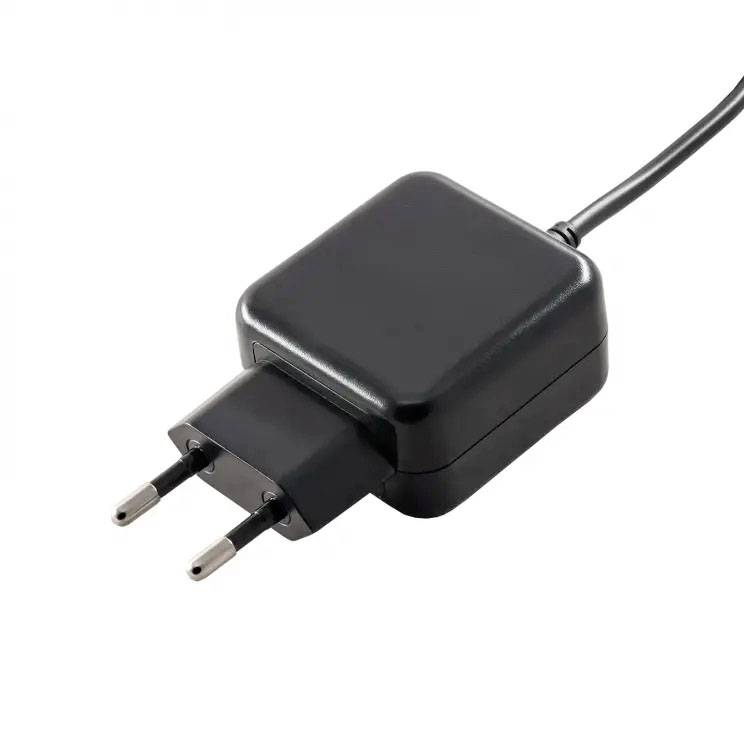

A black charger with a European plug and a cable.

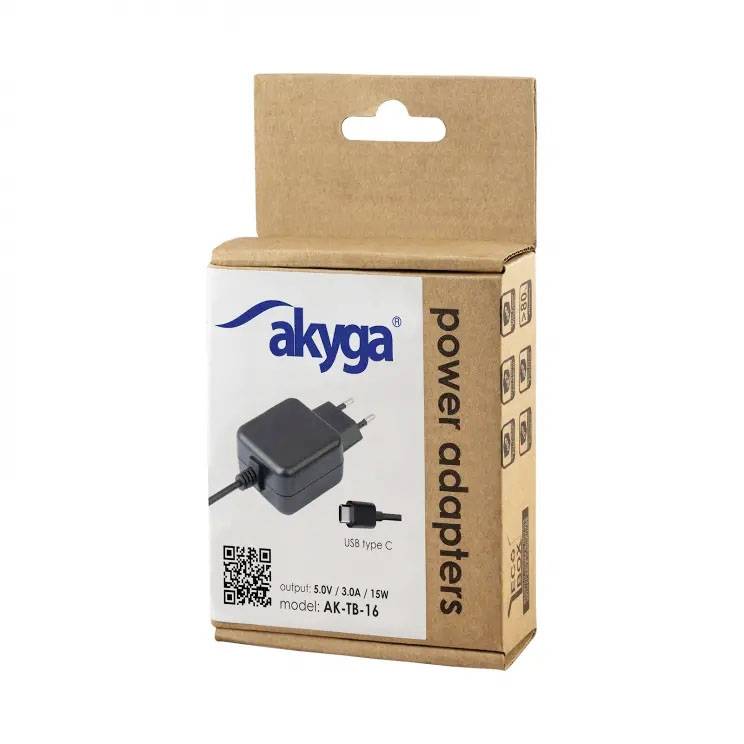

Brown cardboard box with the inscription 'akyga power adapters'. Pictured is a mains plug and a USB-C cable. Model: AK-TB-16, Output: 5V / 3A / 15W.

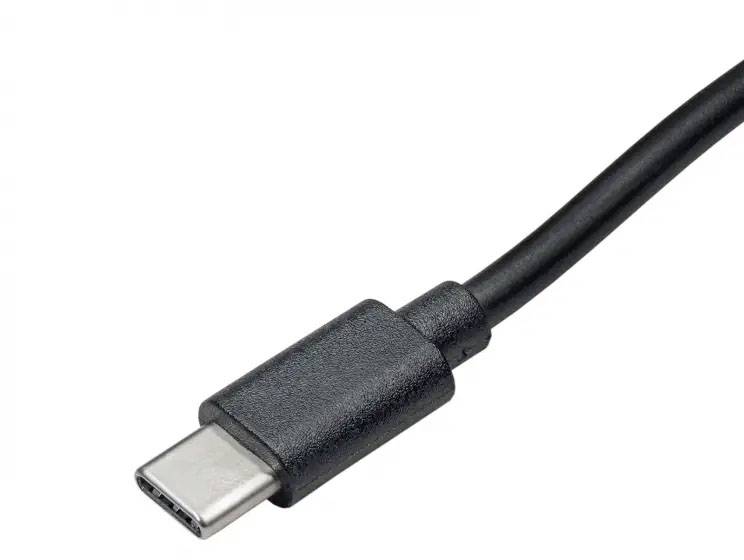

A black USB-C cable, partially visible in the image, is resting on a white background. It is designed for data transfer and charging.
1/4
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 21.99 / piece)
€ 21.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Product code: AK-TB-16
  • Efficiency > 80%
  • Earthing: Without (II protection class)
  • ABS casing material
  • MTBF: 100000 h
  • Power consumption < 0.5 A
  • Supply line: USB type C.
  • Working temperature 5 - 50 °C.
Product type

Mains PSU (fixed voltage)

Used at

Mains socket

Max. output current

3 A

Output voltage

5 V

Output current (max.) - rounded

3 A

Output

USB-C® plug

15 W

Dim

(L x W x H) 100 x 80 x 29 mm

Input voltage (max.)

240 V

Min. input voltage

110 V

Weight

120 g

Cable length

1.00 m

Width

80 mm

Height

29 mm

Length

100 mm

Type

AK-TB-16

Documents & Downloads

Datasheet

Datasheet 2355180 Akyga AK-TB-16 Mains PSU (fixed voltage) 5 V 3 A 15 W

User & Safety Instructions

User & Safety Instructions 2355180 Akyga AK-TB-16 Mains PSU (fixed voltage) 5 V 3 A 15 W

Warranty Terms

Warranty Terms 2355180 Akyga AK-TB-16 Mains PSU (fixed voltage) 5 V 3 A 15 W

Description

Akyga® AK-TB-16 is a universal power supply with a maximum power of 15 W and output parameters of 5 V / 3 A. The product is ideal for use in chargers equipped with a USB type C plug, which is commonly used in tablets and smartphones. The power supply works with more than 80% efficiency. With the CEE 7/16 plug (Euro plug) the charger can be securely connected to a household socket. The device is equipped with a number of protection functions (OVP, OCP, OPP, OTP, SCP). The cable length is 1m.
The product is packed in an environmentally friendly Ecobox packaging.
