Buy VOLTCRAFT SNG-1000-OC-N Mains PSU (adjustable voltage) 3 V DC, 4.5 V DC, 5 V DC, 6 V DC, 9 V DC, 12 V DC 1 A 12 W Adjust

Black power adaptor plug with cable, suitable for European electrical sockets.

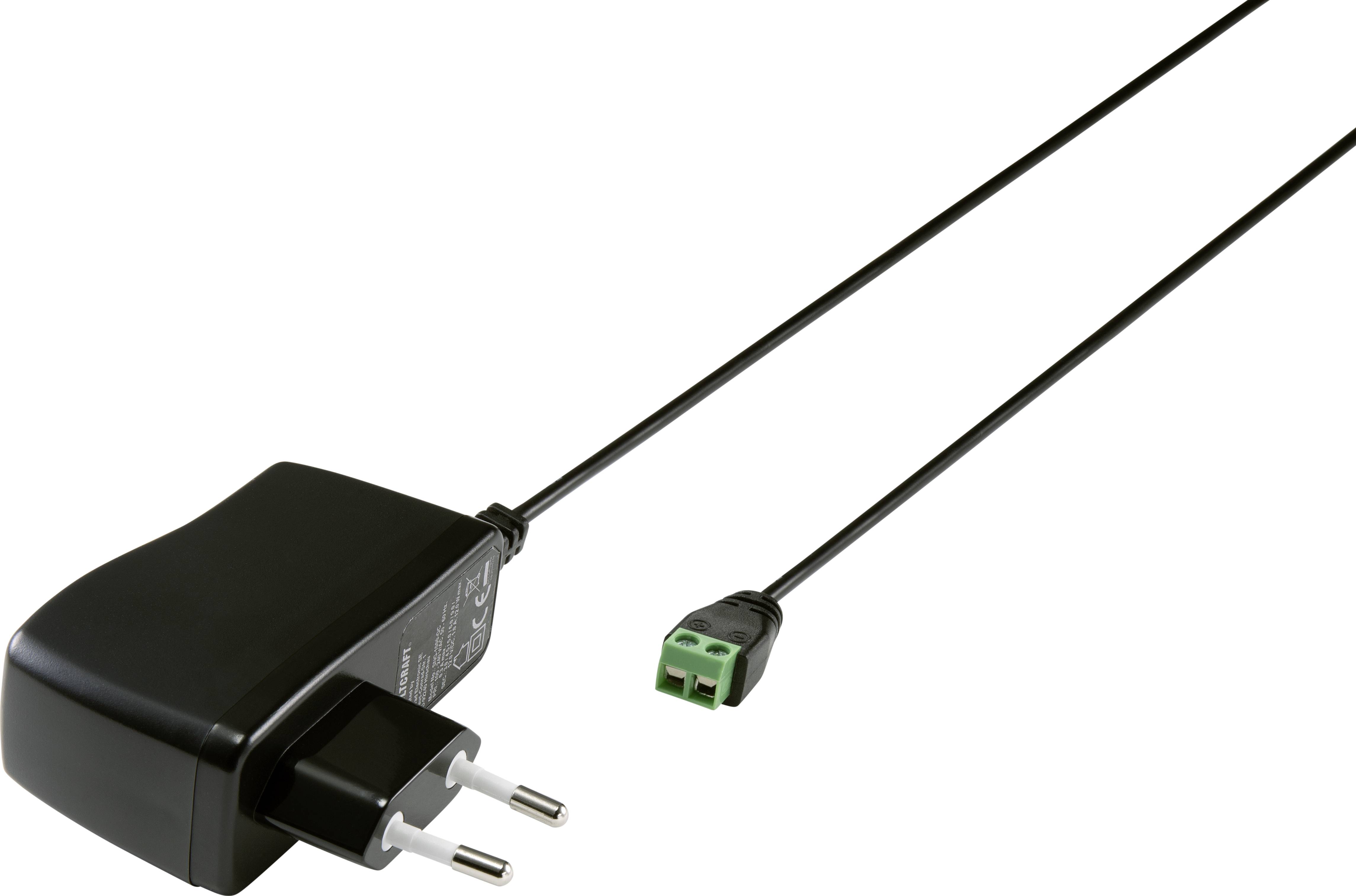

Black power supply with Euro plug and green two-pin connector at the cable end, suitable for electrical devices.

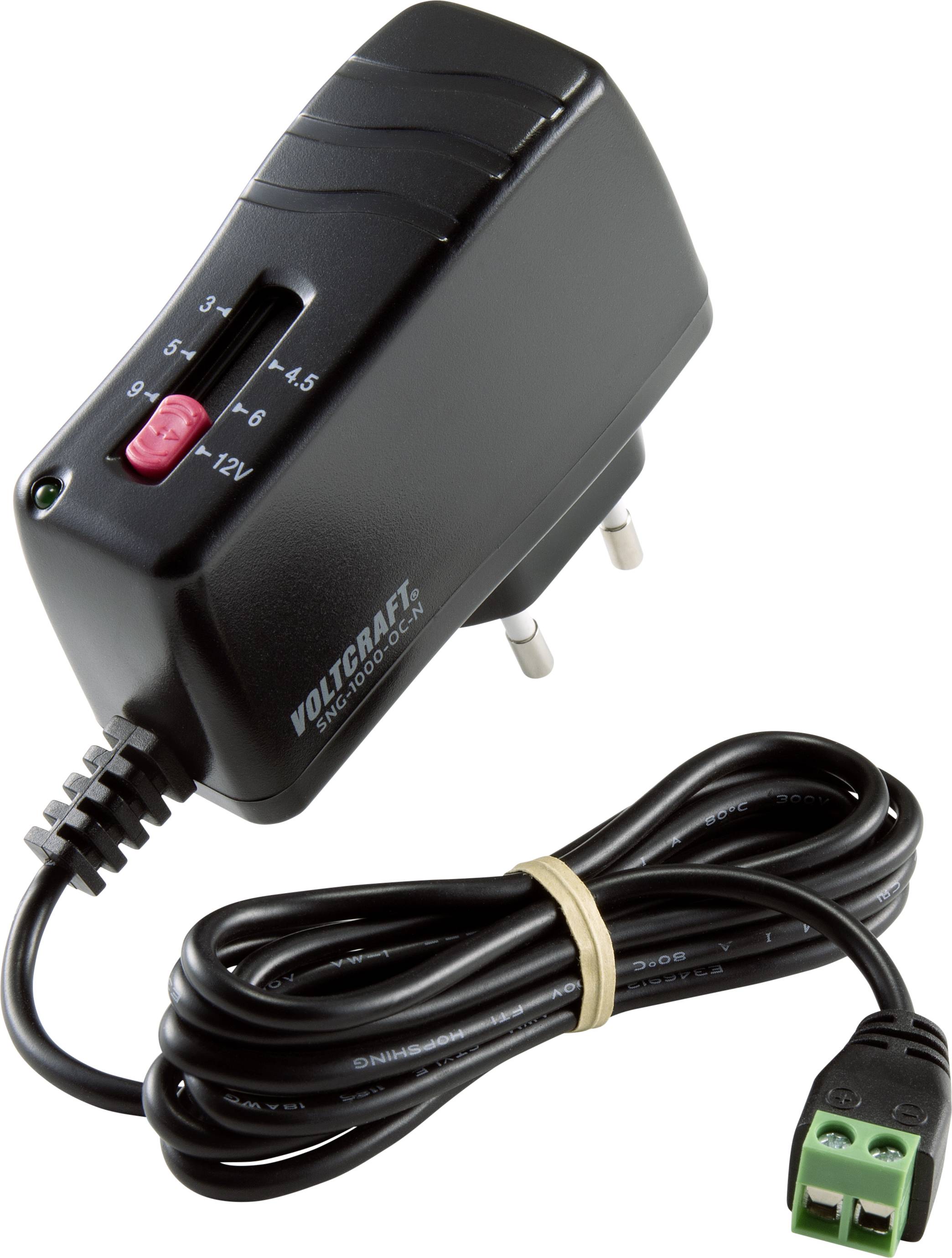

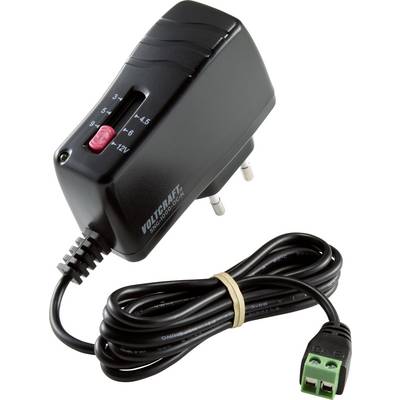

A black power supply with adjustable voltage from 3 to 12V. It has a European plug and a cable with a green connector.

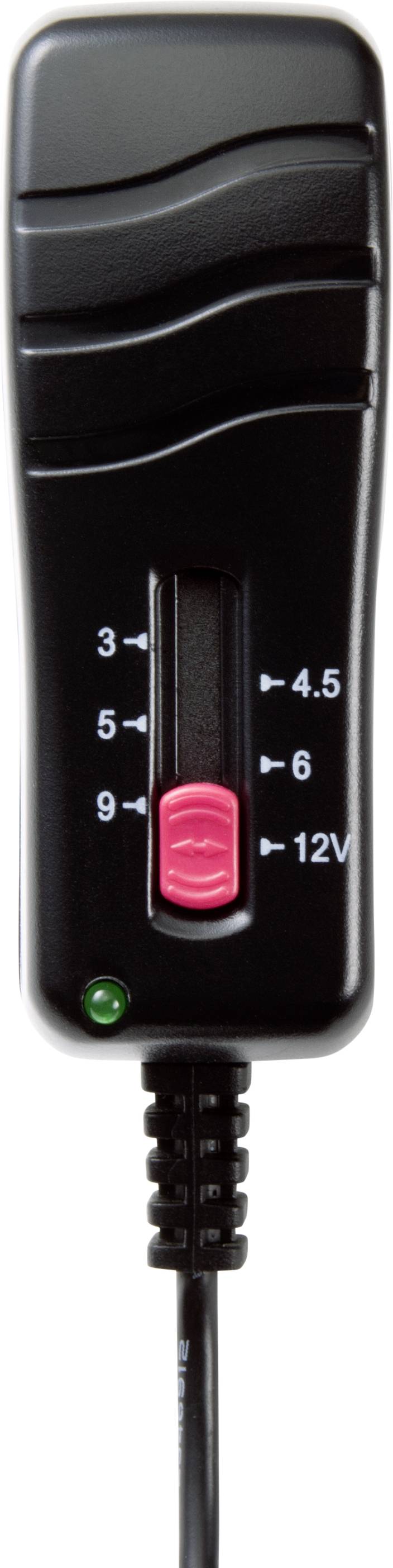

A black voltage adapter with a sliding control, the red button indicates 12V. A connection cable is located on the underside.

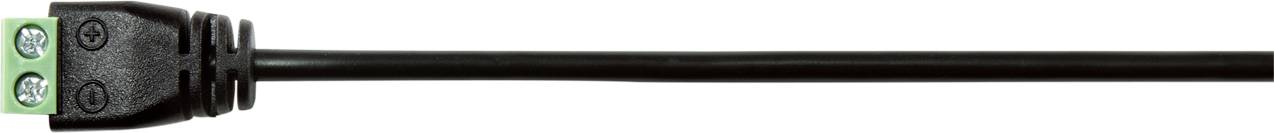

Black cable with rectangular plug and green connection terminal, two screws visible.

1/5

Our service for you

Fast track dispatch on Thu, 17 Sep

1945 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 11.76 / piece)

€ 11.76

plus VAT.

Report legal concerns

Highlights & Details

SNG-1000-OC-N Energy saving power supply for hobby purposes

Very low StandBy consumption
Stabilised output voltage
Ultra-compact design
Wide range input 100 – 240 V/AC
N/A Adjustable
Ouput current max. 1 A
12 W power
With screw terminals, ideal for use in kits, LED strips and so on.

Technical specifications

Product type: Mains PSU (adjustable voltage)

Used at: Mains socket

Max. output current: 1 A

Output voltage: 3 V DC
4.5 V DC
5 V DC
6 V DC
9 V DC
12 V DC

Output current (max.) - rounded: 1 A

Output: Europlug

PSU features: Adjustable voltage output

Input voltage: 100 V AC
240 V AC

: 12 W

Dim: (L x W x H) 81 x 31 x 65 mm

Connection: Screw terminal

No. of outputs: 1 x

No. of inputs: 1 x

Input voltage (max.): 240 V AC

Min. input voltage: 100 V AC

EuP Status: Level VI

Weight: 122 g

Cable length: 1.50 m

Width: 31 mm

Height: 65 mm

Length: 81 mm

Type: SNG-1000-OC-N

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2266526 VOLTCRAFT SNG-1000-OC-N Mains PSU (adjustable voltage) 3 V DC, 4.5 V DC, 5 V DC, 6 V DC, 9 V DC, 12 V DC 1 A 12 W Adjust

Conformity certificate

Conformity certificate 2266526 VOLTCRAFT SNG-1000-OC-N Mains PSU (adjustable voltage) 3 V DC, 4.5 V DC, 5 V DC, 6 V DC, 9 V DC, 12 V DC 1 A 12 W Adjust
