Name: Akyga Button cell CR 2032 3 V 1 pc(s) 210 mAh Li-MnO2 CR2032 HP3CL
Brand: Akyga
SKU: 3421058
Availability: InStock

'Penny' in a silver box with a blue border, two small holes in the lid.

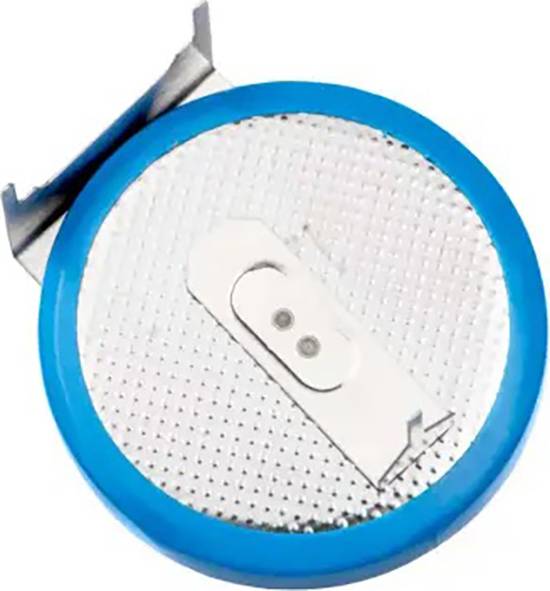

Blue round battery holder with silver lid and metal contact. The holder is slightly open to insert or remove a battery.

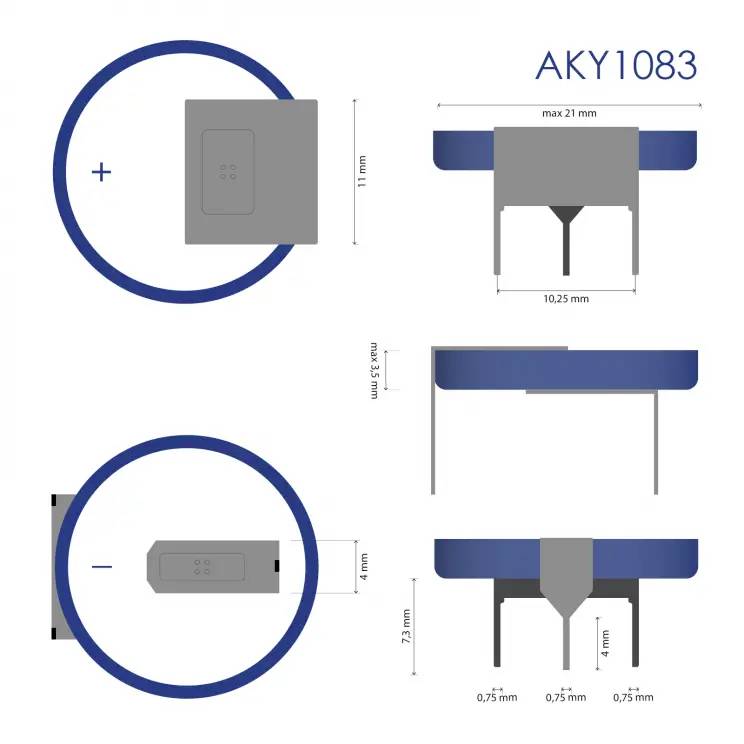

Technical drawing of a hinge AKY1083, with dimensions in millimetres: width 21, height 11 (top), thickness 10.25. Side and front views included.

1/3

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

7 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.69 / piece)

€ 0.69

incl. VAT

Only 7 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Voltage: 3 V
Capacity 210 mAh
Net weight: 3.1 g
Cell type: Li-MnO2
Battery identification: CR2032 HP3CL
Min. Operating temperature: -20 °C
Max. Operating temperature +60 °C
Number of units: 1 units
Mounting THT
Locking dimensions 17.8 mm

Product type: Button cell

Size: CR 2032

Connector: Contact retainers

Technology: Li-MnO2

Voltage: 3 V

Capacity (mAh, Ah): 210 mAh

Weight: 3.1 g

Content: 1 pc(s)

Rechargeable: No

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3421058 Akyga Button cell CR 2032 3 V 1 pc(s) 210 mAh Li-MnO2 CR2032 HP3CL

Description

The Akyga® AKY2487 is a professional CR2032 HP3CL lithium battery with a voltage of 3 V and a capacity of 210 mAh, which was developed for demanding applications in electronics. Equipped with 3-pin connectors in a 17.8 mm grid for THT assembly (through-hole technology), it ensures a secure connection to PCBs and is thus an ideal solution for electronic precision projects.
Lithium-manganese technology (Li-MnO2)
The Akyga® AKY2487 CR2032 battery, based on lithium manganese technology, guarantees stable voltage and energy efficiency. With a capacity of 210 mAh the CR2032 HP3CL-battery provides for a long-lasting operation of the devices, and thanks to the low self-discharge the battery can be stored for a long time without losing power.
Versatility of CR2032 button cell applications
Thanks to its 3-pin connectors with a 17.8 mm grid, the lithium battery CR2032 HP3CL is used in a variety of electronic devices such as real-time clocks, controllers, memory modules and IoT systems. It is also widely used in medical devices and DIY projects that require a long-lasting and stable power supply.
Precision and long life
The Akyga® CR2032 HP3CL button cell battery is designed for a long service life and reliable operation. Their THT design enables a safe assembly and a long life, WAS makes it a practical choice for advanced electronics projects.

This text is machine translated.
