1/3
Akyga PC power supply unit 250 W TFX 80 PLUS Gold
EAN:
Part number:
Item no:
Product type
PC power supply unit
PSU output power
250 W
Certification
80 PLUS Gold
Form factor
TFX
Factory colour
Grey
Datasheet (PDF)
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
Only 3 Piece(s) available
Akyga PC power supply unit
Highlights & Details
- Power supply unit output 250 W
- PCI-Express (6+2-Pin) x
- Cable management
- 80 PLUS Gold
Technical specifications
- Packing: Foil
- Grounding: Yes
- Cable length: 30 cm
- Product color: Grey
- Series: Ultimate
- Supply voltage 230 V
- Output: 250 W
- Manufacturing material: Galvanized steel
- Power input < 3 A.
- OVP fuse: Yes
- OCP Backup: Yes
- OTP fuse: Yes
- OPP fuse: Yes
- SCP fuse: Yes
- MTBF: 100000 h
- TFX format
- Capacity: > 80%
- 80 PLUS match: Yes
- Current in line +3.3V: 15 A.
- Current in line +5V: 15 A.
- Load of line +3.3V and +5V: 80 W.
- Current in line +12V: 16 A.
- Load of the line 12V: 192 W
- Supply MPC connector: 24-pin
- Female EPS12V 8-pin connector: 1 ( 4 + 4-pin )
- Supply Molex-Connectors: 1 pieces
- Supply SATA connector: 3 pieces
- PFC filter: Active
- UVP fuse: Yes
- Fan size: 80 mm
- Fan rotation regulation: Automatic
- 80 PLUS certificate: Gold
- Bolts of a socket: IEC C14
- Product type
PC power supply unit
- PSU output power
250 W
- Certification
80 PLUS Gold
- Form factor
TFX
- Factory colour
Grey
- Dim
(L x W x H) 65 x 175 x 85 mm
- Height
85 mm
- Width
175 mm
- Weight
836.4 g
- 5 V DC
15 A
- 24-pin
1
- 4-pin Molex
1
- 4+4 pin ATX/EPS 12V
1
- 5-pin SATA
3
- Power rating
0 - 500 W
- Cable length
30 cm
- Length
65 mm
- Fan size
80 mm
- 3.3V DC
15 A
- Operating voltage
230 V / AC
- Max. temperature
50 °C
- Min. temperature
5 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3731384 Akyga PC power supply unit 250 W TFX 80 PLUS Gold
User & Safety Instructions
User & Safety Instructions 3731384 Akyga PC power supply unit 250 W TFX 80 PLUS Gold
Description

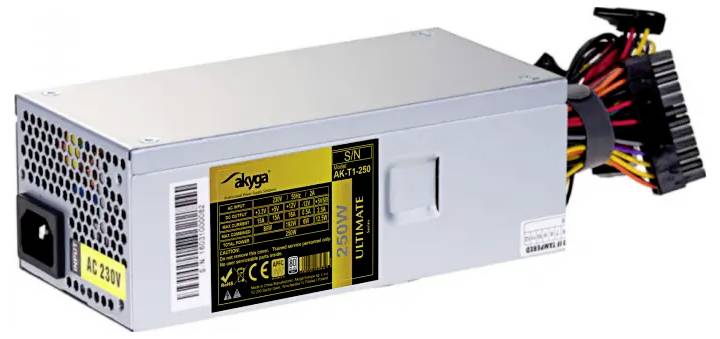

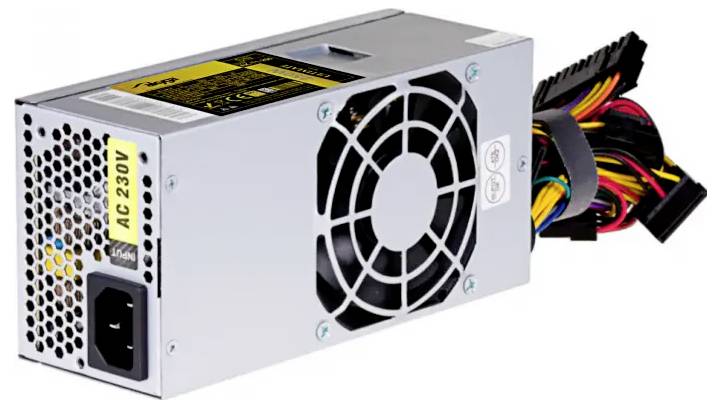

The Akyga® AK-T1-250 TFX power supply 250W is an advanced compact power supply for mini and media PC systems. It supports all current design standards and ensures high performance and stability.

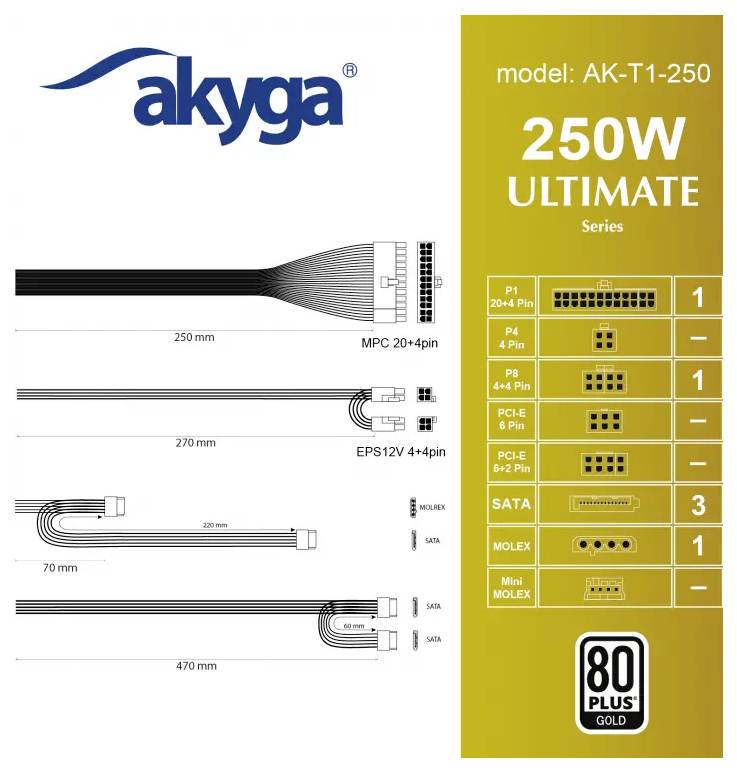

The power supply has a 4+4-pin plug, a Molex-plug, 3 x SATA-plug and a universal 24-pin motherboard connection. The high efficiency is the 80 PLUS® compatibility, which ensures that at least 80% of the power supplied by the power supply is absorbed by computer components and a maximum of 20% of the energy is lost in the form of heat. The high degree of efficiency enables an effective supply and the stable operation of the power supply affects the reliability of all the computer components. An efficient, silent fan with a diameter of 8 cm ensures effective cooling. The power supply is suitable for small and medium-sized cases thanks to a 36 cm long Ideal cable set. The product is made of resistant zinc-coated steel.
An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and active PFC filter that protect and prevent the motherboard, the processor and other parts from damage and stabilize the operation of the power supply without unwanted interference. The power supply TFX AK-T1-250 is a high-quality product, which corresponds to the current requirements and conforms to modern standards.
This text is machine translated.
The power supply has a 4+4-pin plug, a Molex-plug, 3 x SATA-plug and a universal 24-pin motherboard connection. The high efficiency is the 80 PLUS® compatibility, which ensures that at least 80% of the power supplied by the power supply is absorbed by computer components and a maximum of 20% of the energy is lost in the form of heat. The high degree of efficiency enables an effective supply and the stable operation of the power supply affects the reliability of all the computer components. An efficient, silent fan with a diameter of 8 cm ensures effective cooling. The power supply is suitable for small and medium-sized cases thanks to a 36 cm long Ideal cable set. The product is made of resistant zinc-coated steel.
An important aspect is the presence of several important protectors (OVP, OCP, OPP, OTP, SCP, UVP) and active PFC filter that protect and prevent the motherboard, the processor and other parts from damage and stabilize the operation of the power supply without unwanted interference. The power supply TFX AK-T1-250 is a high-quality product, which corresponds to the current requirements and conforms to modern standards.
This text is machine translated.
