Alpha 63250-01600/B1M APM6B1MM Single turn rotary pot Mono 0.2 W 1 MΩ 1 pc(s)
EAN:
Part number:
Item no:
Product type
Single turn rotary pot
Resistance
1 MΩ
Resistance characteristic
linear
Output
Mono
Power rating
0.2 W
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
Rotary potentiometer
- 1 MΩ
- linear
Technical specifications
- Product type
Single turn rotary pot
- Resistance
1 MΩ
- Resistance characteristic
linear
- Output
Mono
- Power rating
0.2 W
- Cut-off voltage
200 V
- Connection
Print
- Mechanical angle
270°
- Torque (max.)
2.0 Ncm
- Type
Carbon film
- Axle length
30 mm
- Axle type
Metal
Smooth
Round
- Axle Ø
6 mm
- Thread size
M10
- Thread length
8 mm
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Tolerance ±
20 %
- Content
1 pc(s)
- Type
APM6B1MM
Documents & Downloads

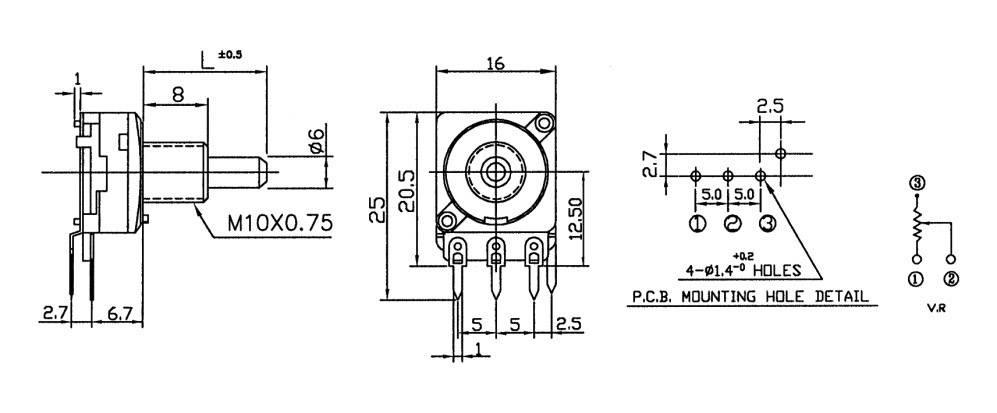

Datasheet
Datasheet 1697963 Alpha 63250-01600/B1M APM6B1MM Single turn rotary pot Mono 0.2 W 1 MΩ 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1697963 Alpha 63250-01600/B1M APM6B1MM Single turn rotary pot Mono 0.2 W 1 MΩ 1 pc(s)
Description
Scope of delivery
- 63250-01600/B1M.
