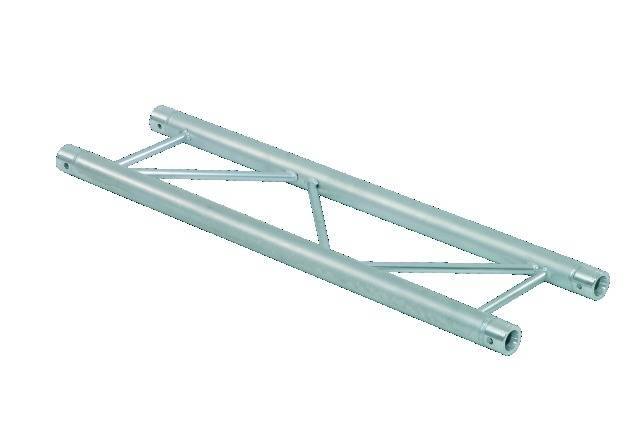

Alutruss BILOCK BQ2-710 Ladder truss 71 cm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 124.99 / piece)
€ 124.99
incl. VAT
Only 4 Piece(s) available
Highlights & Details
BILOCK BQ2-710 2-point traverse
- 2-point traverse system
Technical specifications
- Longitudinal pipes 50 x 2 mm
- Braces 16 x 2 mm
- Pipe material AlMgSi 0.5
- Welding material ALMg 5
- Welding method TIG pulse.
- Dimensions 240 mm (center of hole - center of hole)
- Length: 710 mm
- Product type
Ladder truss
- Tube diameter
50 mm
- Length
71 cm
- Width
29 cm
- Height
5 cm
- Weight
2.7 kg
- Dim
(L x W x H) 71 x 29 x 5 cm
Documents & Downloads
Datasheet
Datasheet 593926 Alutruss BILOCK BQ2-710 Ladder truss 71 cm
User & Safety Instructions
User & Safety Instructions 593926 Alutruss BILOCK BQ2-710 Ladder truss 71 cm
Description
2-point traverse system · High-quality aluminum pipes with 50 mm diameter · Easy to set up · Lowest weight · For assembly at exhibitions and in shops and disco and theatre installations.
