Buy Amewi DDF-350 Pistol grip RC 2,4 GHz No. of channels: 10

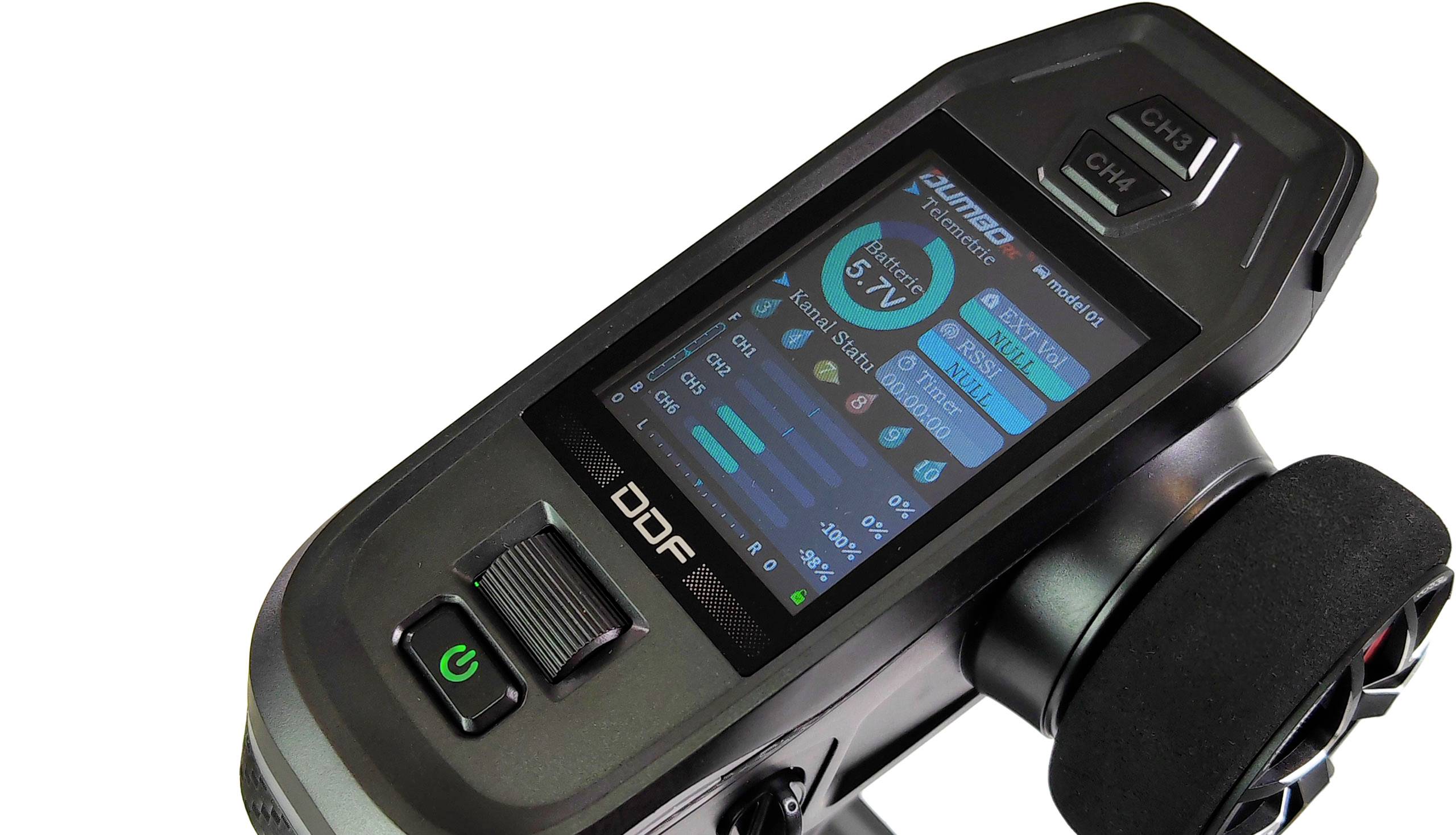

Remote control with screen display shows charging status, channel settings, and other device information. Power button on the left, control wheel on the right.

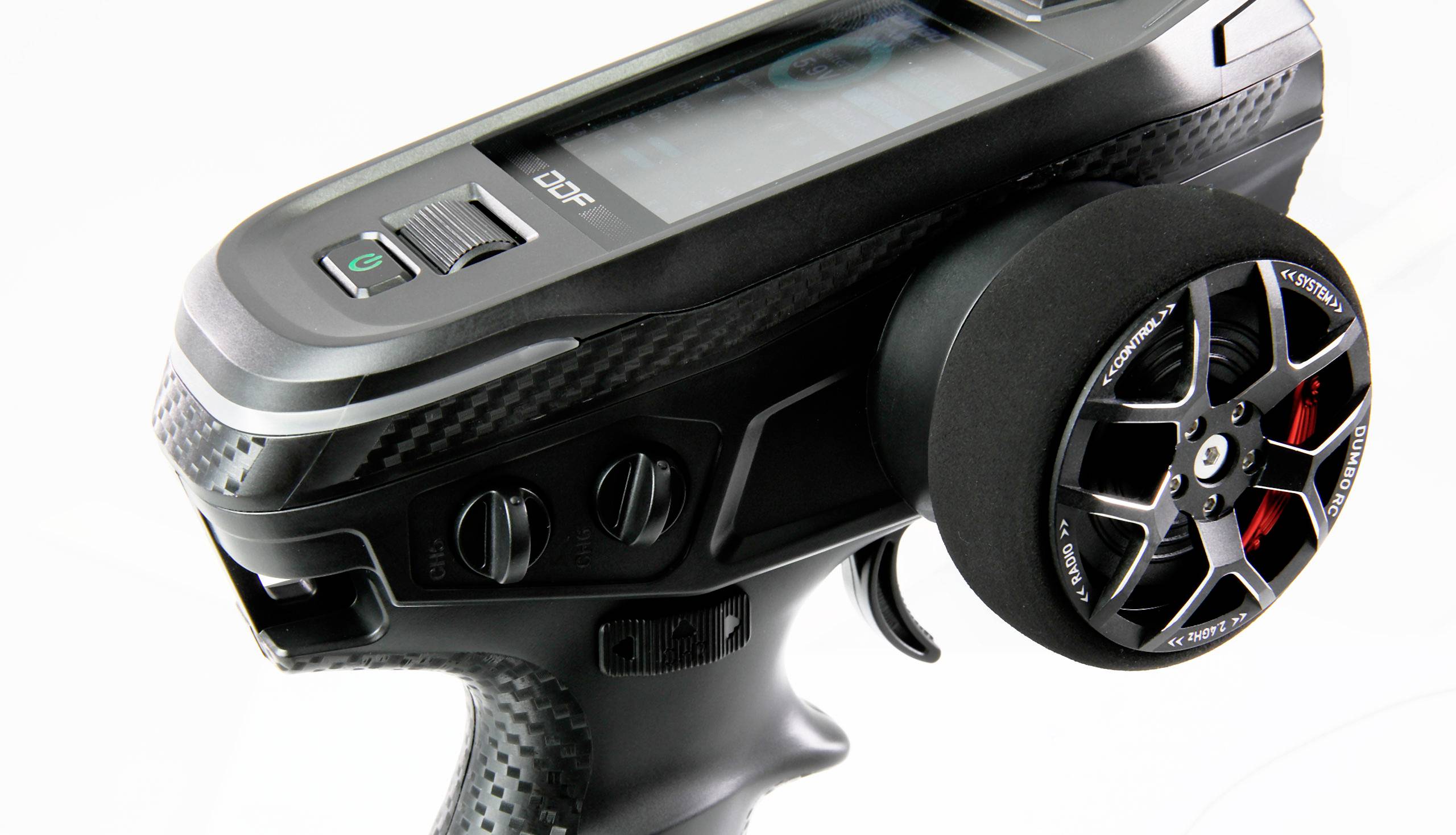

A modern remote control device with a large LCD screen and steering wheel, used for precise control of model vehicles.

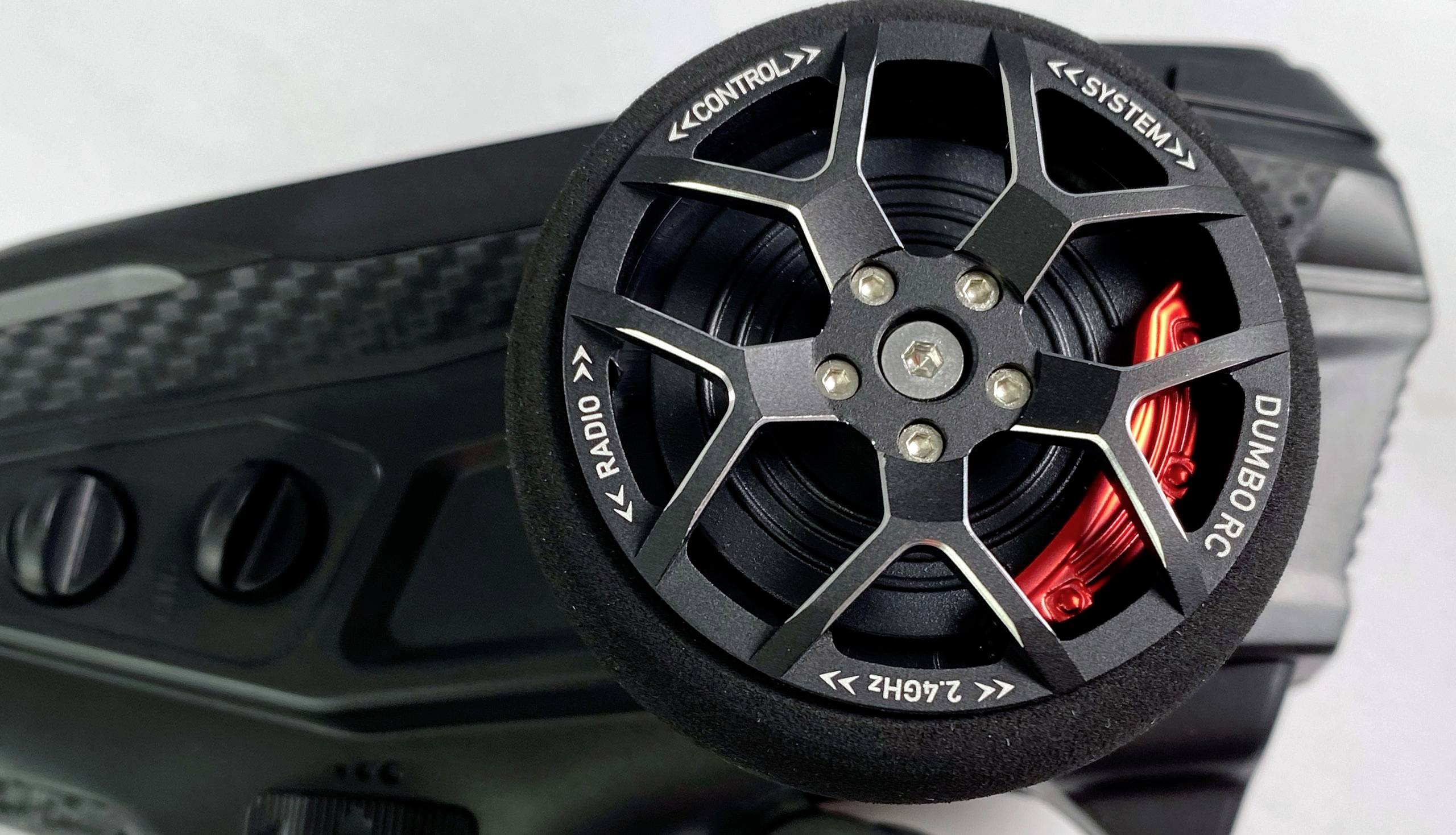

A black steering wheel with a red accent on a device displaying 'CONTROL', 'SYSTEM', 'RADIO' and 'DUMBORC'.

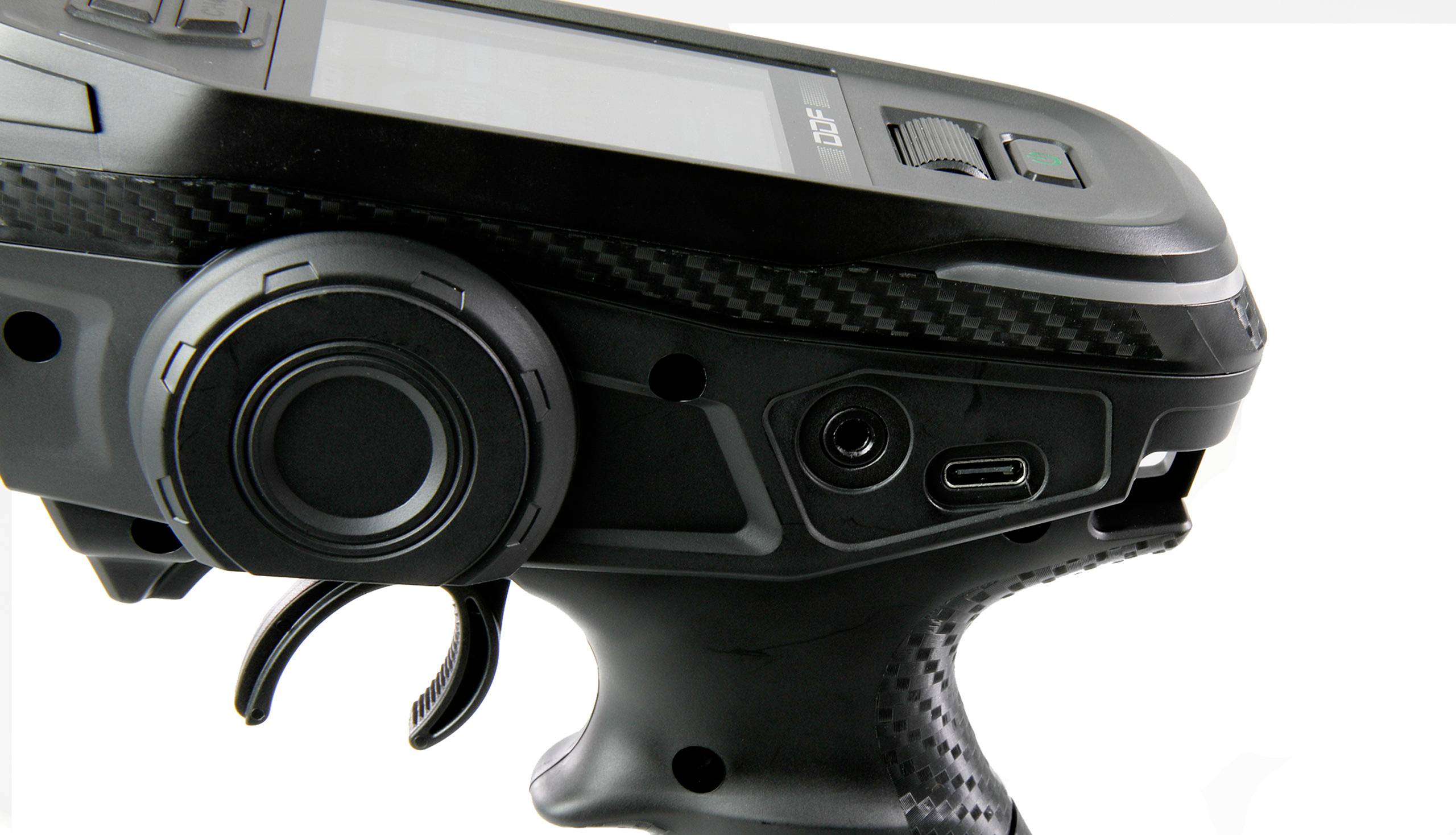

A close-up of a black, ergonomic control device with multiple buttons and a rotary knob, presumably for remote control purposes.

Close-up of a black remote control handle with three buttons and channel labels 'CH1', 'CH2', 'CH3'. Surface appears textured.

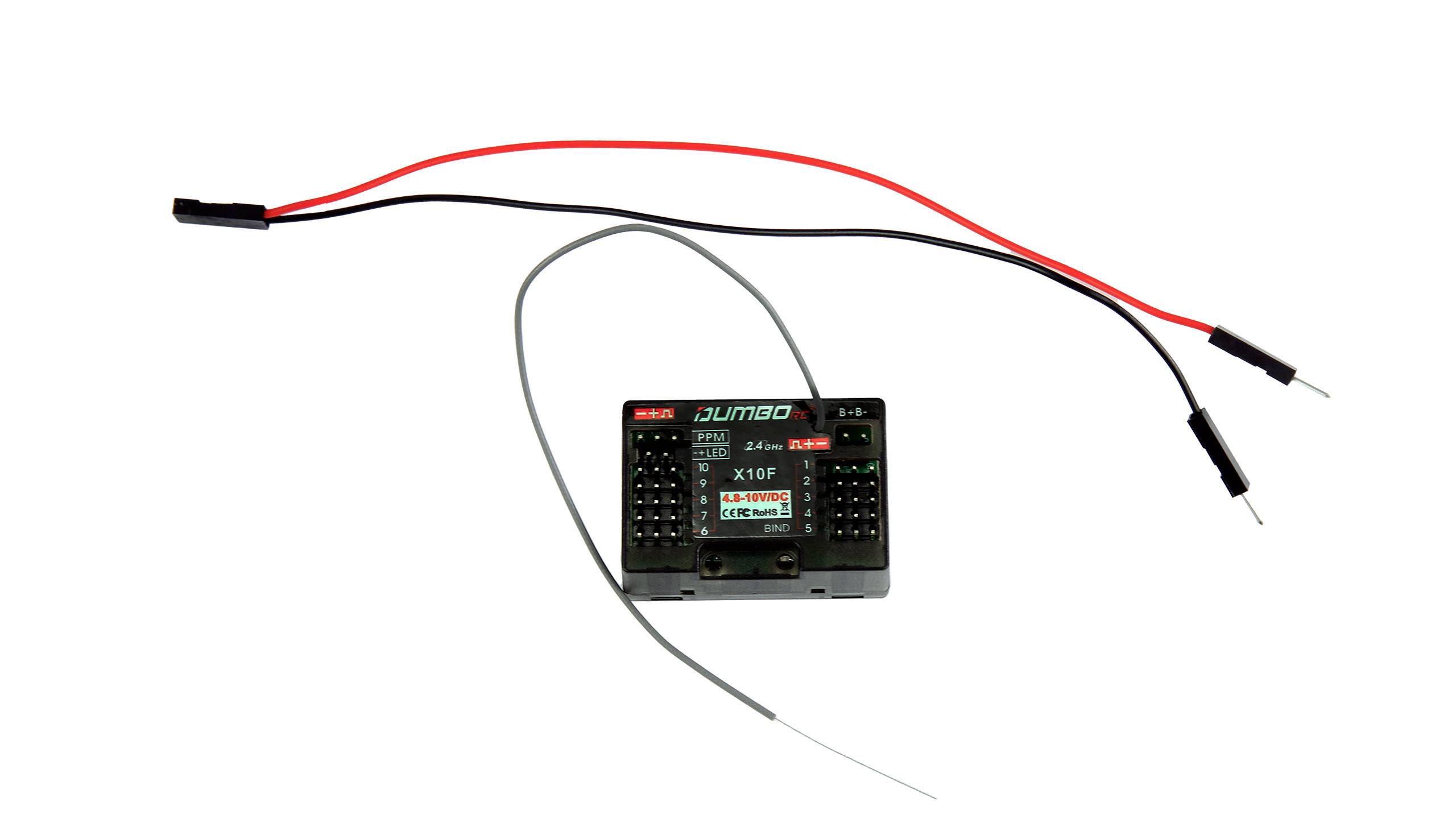

A black electronic receiver with multiple slots and two long cables, one red and one black, which are connected.

1/8

Fast track dispatch on Wed, 23 Sep

17 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 82.34 / piece)

€ 82.34

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

DDF-350 10-channel remote control including 10-channel receiver by Dumbo RC

Menu in German: Programming the remote control is simple and intuitive
10 programmable channels: Suitable for many applications and the operation of accessory attachments on RC-models
Colour display: Very easy to read even in case of light radiation thanks to a high contrast

Technical specifications

Frequency: 2.4 GHz FHSS
Operating frequency 2402 - 2480MHz
Maximum peak power: 20dBm
Maximum range: 350 meters
Operating voltage 4.8-11.1V (4x AA mignon batteries or 2/3S LiPo battery)
Display dimensions 4.0 x 5.3cm
Battery compartment dimensions:50x14mm
Technical data receiver (LxWxH) 40 x 27 x 13 mm, weight: 10g, input voltage 4.8-10V

Product type: Pistol grip RC

Frequency: 2,4 GHz

Channels: 10

Length: 15 cm

Width: 8.5 cm

Height: 20 cm

Dim: (L x W x H) 15 x 8.5 x 20 cm

Weight: 285 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3360639 Amewi DDF-350 Pistol grip RC 2,4 GHz No. of channels: 10

Description

High-quality 10-channel 2.4 GHz remote control with extensive programming options and user-friendly menu navigation: Ideal for RC models in the area of car, commercial vehicle crawler, tank and boat. With ten controllable channels this remote control offers maximum flexibility and supports additional modules like lighting, winches, sound modules and other extensions. The color, 4.0 x 5.3cm display ensures an excellent display thanks to Hohem contrast for all current settings. Menu navigation is available in several languages including German. The 10-channel 2.4 GHz receiver included in the set completes the package.

This text is machine translated.

Features

10 Channels
Channels with button: 2 (channel 3, 4)
Channels with pressure switch: 3 (8, 9, 10)
Channels with rotary potentiometers 2 (channel 5, 6)
Channels with sliding switch 3-way: 1 (channel 7)
Channel 1: Steering (proportional)
Channel 2: Gas/brake/reverse (proportional)
Simple menu navigation
Available languages: German/English/French/Chinese
Adjustable gas and steering curves
Direction and limitation of all channels can be set separately
Display of the drive battery voltage (real-time telemetry)
Display of the transmitter voltage
10 Model memory
Range of up to 350m
Operates with rechargeable batteries or batteries
Adjustable timer
Alarm functions
USB-Interface
Simulator connection
LED-lighting can be set (Dynamic/On/Off)

Scope of delivery

Remote control DDF-350
X10F receiver
Operating instructions DE/EN

Hints

4x AA 1.5V batteries or matching rechargeable battery up to 11.1V (3S LiPo)
