FlySky FS-G11P Pistol grip RC 2,4 GHz No. of channels: 11 Incl. receiver
EAN:
Part number:
Item no:
Number
Total (€ 184.87 / piece)
€ 184.87
plus VAT.
Highlights & Details
Flysky 11-channel remote control "FS-G11P" EXCLUSIVELY FOR Absima 2.4GHz incl. receiver
- 11 Channels
- IPS high-brightness display - a new standard for visibility in the open
- Ultra-low power consumption
- Power Options: Supports 18650 batteries (2 units) and 2S LiPo batteries
- Supports up to 40 model groups
Technical specifications
- Can be used for RC cars and boats
- RF: 2.4GHz ISM
- Max. Power: <20dBm (egi.r.p) (EU)
- RF protocol: ANT
- Resolution: 4096
- USB type C, 3.5mm jack connection (DSC), SD card slot
- Input Power: 6-9V/DC (2 pc. 18650 battery / 2S LiPo - not included in the delivery)
- Distance: +/- 300m (floor distance without sources of interference)
- Antenna: 2 internal antennas
- Display: 3.5 inch 320*480 full dot color non-touch IPS screen
- Temperature range -10°C - +60°C.
- Humidity 20% - 95%
- Menu languages German, English, French
- USB-C charging socket
- Certificates: CE, FCC, ID: 2A2UNG11P00
- Suitable receiver: FS-G11P and other Flysky transmitters with ANT protocol
- Data output PWM/PPM/i-BUS/S-BUS
- Operating Power: 3.5-9V/DC; Distance: +/- 300m (distance from the ground without sources of interference)
- Antenna: Lying outside single-antennae
- Temperature range -10°C - +60°C.
- Humidity 20% - 95%
- Receiver dimensions 37 x 25 x 13.3 mm
- Water-resistant (PPX4)
- Frequency
2,4 GHz
- Channels
11
- RC model memory
133
- Length
15 mm
- Width
12.1 mm
- Height
19.7 mm
- Dim
(L x W x H) 15 x 12.1 x 19.7 mm
- Weight
371 g
- Features
Incl. receiver
- Product type
Pistol grip RC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3404513 FlySky FS-G11P Pistol grip RC 2,4 GHz No. of channels: 11 Incl. receiver
Description
The Flysky G11P is an unbelievably well-equipped remote control with excellent price/performance ratio! The G11P is an exclusive licensed product for Absima.
IPS high-brightness display - a new standard for visibility in the open air! (3.5-inch IPS color display, 320*480 full-point matrix, high brightness). The screen remains well visible even in intensive sunlight and ensures excellent clarity. The simple and intuitive operation takes place via the central multi-function button independent of dirt or humidity on the display. · Extremely low power consumption! Powered by 2 x 2600mAh 18650 battery, a standby time of up to 14 hours is possible (batteries not included). Operation with all matching 2S/7.4V LiPo batteries is also possible.
The trigger has an adjustable reset force and position that is suitable for a wider user group. The steering wheel has a physically adjustable path length with infinitely variable positioning for maximum flexibility.
Innovative, ergonomic and comfortable grip! Innovative rubberized grip design with special materials and high elasticity for outstanding comfort. The newly designed middle finger grip area enlarges the contact surface and improves the grip stability. · New aesthetic design! Smooth overall lines with a classic Kevlar patterned exterior design that exudes elegance and style.
This text is machine translated.
IPS high-brightness display - a new standard for visibility in the open air! (3.5-inch IPS color display, 320*480 full-point matrix, high brightness). The screen remains well visible even in intensive sunlight and ensures excellent clarity. The simple and intuitive operation takes place via the central multi-function button independent of dirt or humidity on the display. · Extremely low power consumption! Powered by 2 x 2600mAh 18650 battery, a standby time of up to 14 hours is possible (batteries not included). Operation with all matching 2S/7.4V LiPo batteries is also possible.
The trigger has an adjustable reset force and position that is suitable for a wider user group. The steering wheel has a physically adjustable path length with infinitely variable positioning for maximum flexibility.
Innovative, ergonomic and comfortable grip! Innovative rubberized grip design with special materials and high elasticity for outstanding comfort. The newly designed middle finger grip area enlarges the contact surface and improves the grip stability. · New aesthetic design! Smooth overall lines with a classic Kevlar patterned exterior design that exudes elegance and style.
This text is machine translated.
Features
- Slim, dynamic metal handle! The elegant metal handle has a high-gloss edge design, a great feel and is an absolute eye-catcher.
- Multicolor "Ambi-light" light control!
- Integrated dual antennas for improved signal stability!
- Trigger and steering wheel can be set in a versatile way.
- Versatile power supply! Power supply options: Supports 18650-battery and 2S-LiPo batteries (compatible with 2S-XH balance plugs and JST connectors)
- Multifunctional Type C data interface and charging port! Supports firmware upgrades, model data backup, USB emulator function and the charging of 2S LiPo batteries
- Comprehensive control options meet different model requirements! ( Self-locking switch "SW1", 3-position toggle switch "SW4", 3x trim switch "TR1, TR2, TR3", "K6" rocker switch, "TR4" touch reset switch, 2x "VR1, VR2" rotary switch, 2x 3-way "SW2, SW3" toggle switch, 6x "K1-K5, K7" touch switch)
- 3 menu languages! German, English, French
- Multi-channel, more possibilities! Supports up to 11 channels and thus fulfills all the requirements for multi-channel model applications
- Flexible channel options! Gas curve settings are flexible and versatile; three modes with five adjustable points are available for precise control.
- All WAS You need for endless fun! Supports up to 40 model groups.
- Low latency, fast response! Two coupling modes, routine/fast, can be selected according to the practical application scenarios.
- Smooth frequency change, trouble-free driving! Adaptive frequency hopping and dispersion spectrum, active avoidance of direct frequency interferences, improvement of the interference suppression power.
- Extensive GPS functions for each terrain! Supports GPS and can process real-time feedback information such as speed, longitude, latitude, and gyros (module available separately soon)

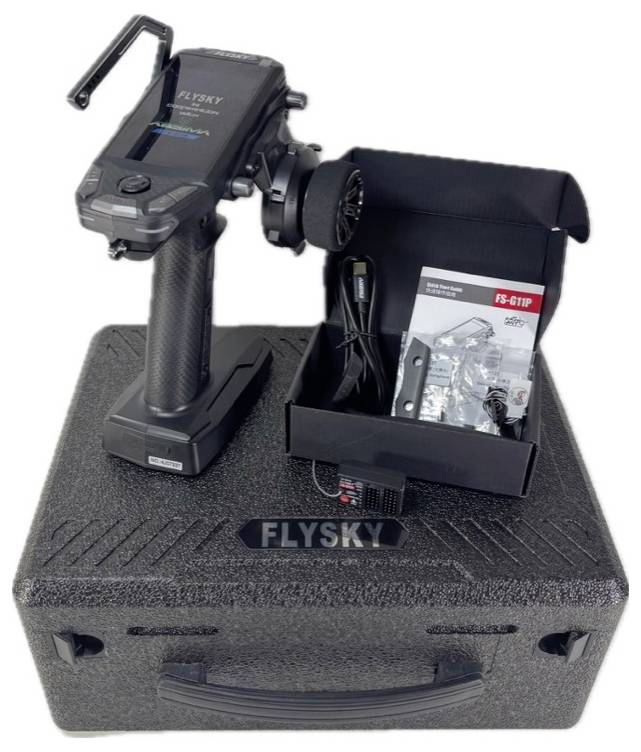

Scope of delivery
- 2.4GHz G11P transmitter
- 2.4GHz R11P receiver
- Aluminium handle with mounting material
- Handle (Dick/thin)
- USB-C cable
- High elasticity spring
- Low elasticity spring
- Transport box.
- Quick start guide
System requirements
- All you need for operation is a 2S/7.4V LiPo battery with XH balancer connection or 2 pcs. 18650pc LiPo batteries (separately available)
