Buy Reely Gen7 Pistol grip RC 2,4 GHz No. of channels: 7 Incl. receiver

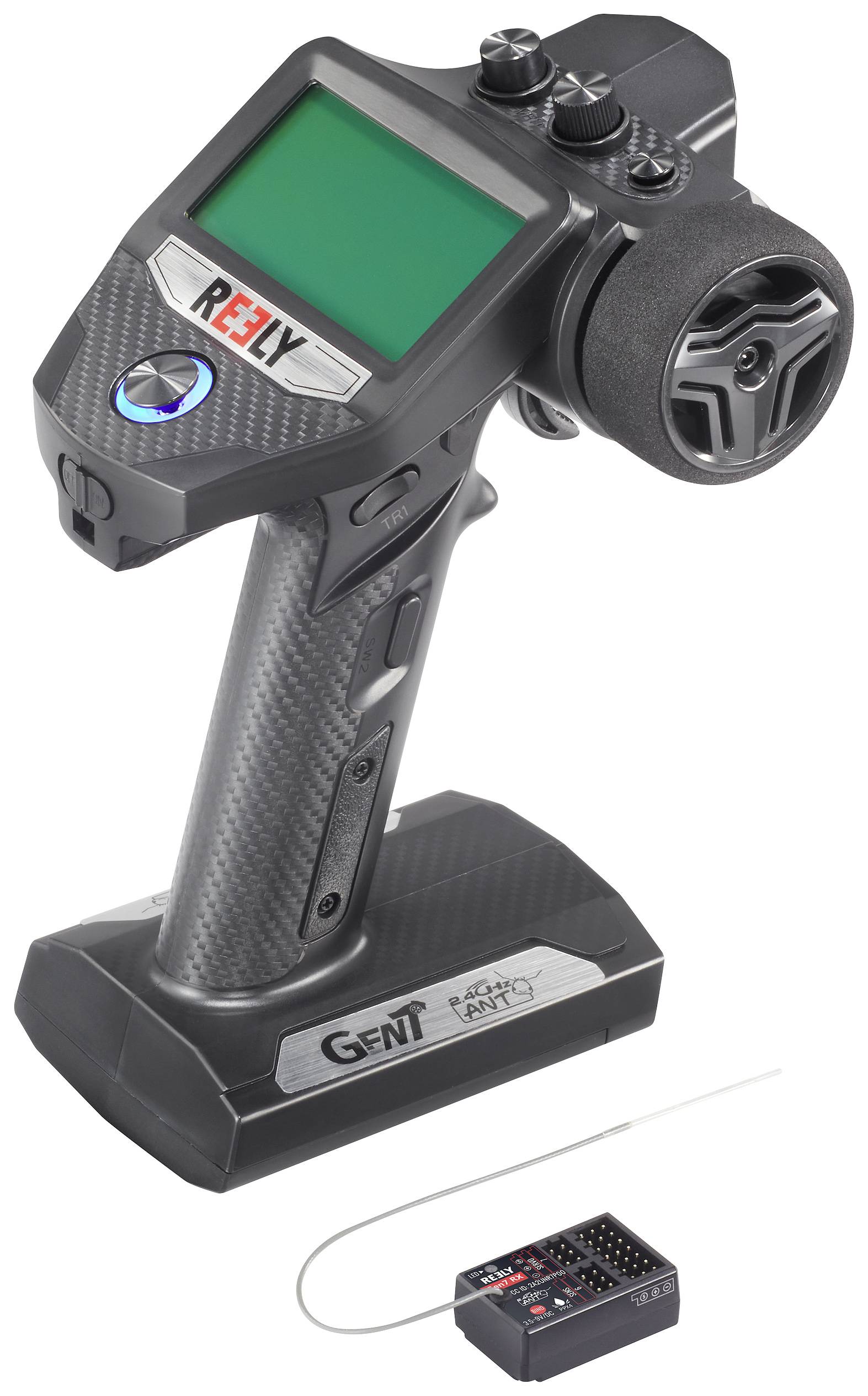

Remote control with screen and steering wheel, suitable for remote-controlled cars. Also includes a receiver with an antenna.

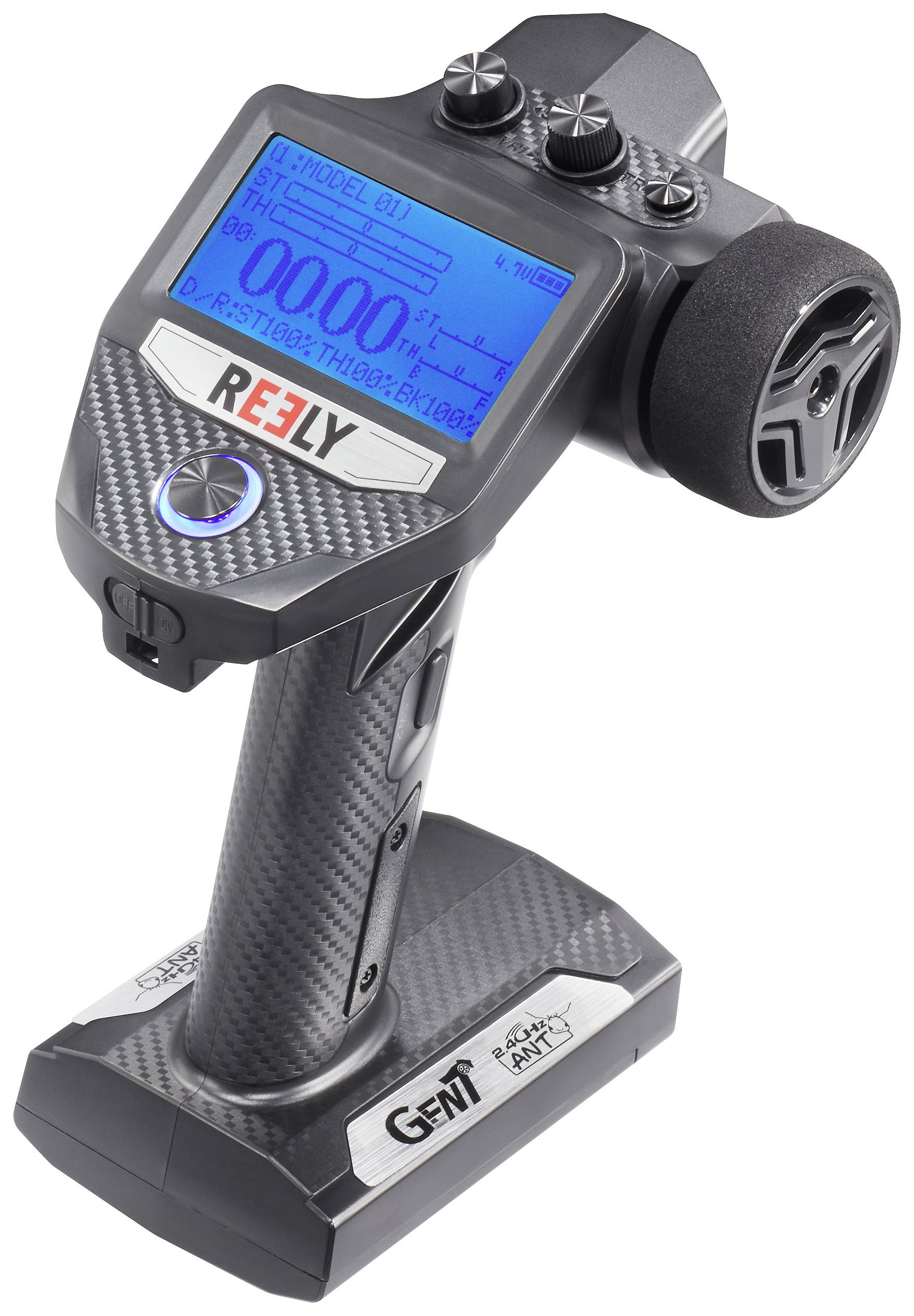

Hand-held remote control for model cars, side view. Black design with rotary dial and trigger, digital display on top.

Remote control for remote-controlled cars, black, with steering wheel and multiple buttons, standing upright.

Remote control with black handle and large rotatable wheel on the side; display and multiple buttons on top. Suitable for RC models.

Remote control for remote-controlled vehicles with a green display and four buttons, black and grey housing and foam wheel on the right.

'Thermocouple set with sensor and connection module, suitable for temperature measurements in technical applications.'

A black, ergonomic remote control with a screen and rotary control knob. Beside it, a receiver with an aerial and cables.

1/8

Our service for you

Fast track dispatch on Mon, 14 Sep

234 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 65.54 / piece)

€ 65.54

plus VAT.

Report legal concerns

Highlights & Details

Reely Gen7 pistol grip RC

7 channels
Supports Gyroscope receivers
Timer function
300 metre control range

Technical specifications

7 CH Transmitter :
Input power：4 - 9 V DC
RF Protocol ：ANT
RF Range：2.4GHz
7 CH Receiver:
RF Protocol ： ANT
Input power ： 3.5-8.4V
CH1~CH7: To output PWM signal (Additional, CH1 can output PPM signal).
Can be connected to the servos, or other compatiable components.
BVD/VCC: During the battery voltage detecting process, a BVD harness
is connected here. During normal operation, the power is applied to this
interface.
BIND interface: During the binding process, a bind cable is connected to this
interface.
SENS interface: For connecting i-BUS sensors.
SERVO interface: To output i-BUS or S.BUS signal, and support channel
expansion in i-BUS type.
USB Port (Type C)
Voltage range: DC5V±0.25V
Working current: ≥0.5A

Frequency: 2,4 GHz

Channels: 7

Length: 13.64 cm

Width: 11.18 cm

Height: 19.75 cm

Dim: (L x W x H) 13.64 x 11.18 x 19.75 cm

Weight: 305 g

Features: Incl. receiver

Power supply (details): 4x AA battery (please order separately)

Plastic free packaging: Plastic-free packaging

Product type: Pistol grip RC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2611680 Reely Gen7 Pistol grip RC 2,4 GHz No. of channels: 7 Incl. receiver

Description

Transmission and reception up to 300 meters rangeThe Reely Gen7 pistol-grip remote control is equipped with seven channels including receiver and creates a range of up to 300 meters. It is splash-proof, so that it can be used even in rainy weather. In addition, the remote control has a five-way menu switch as well as an LCD screen, has a built-in coaxial antenna and timer function.

This text is machine translated.

Features

7 channelsSupports Gyroscope receiversTimerFive-way menu switchLCD screenWarning signal via buzzerSupports phone holderBuilt-in coaxial antennaControl distance 300 metersLED ambient lightingSelf-locking switchFive-fold fine tuning buttonThird gear rocker switchTouch reset button

Scope of delivery

Bind cable
User guide

Hints

Batteries not included.
