Buy Carson Modellsport Reflex Stick Multi Pro LCD Handheld RC 2,4 GHz No. of channels: 14 Incl. receiver

A black remote control with two control sticks and multiple switches, specifically designed for model aircraft or drone remote controls.

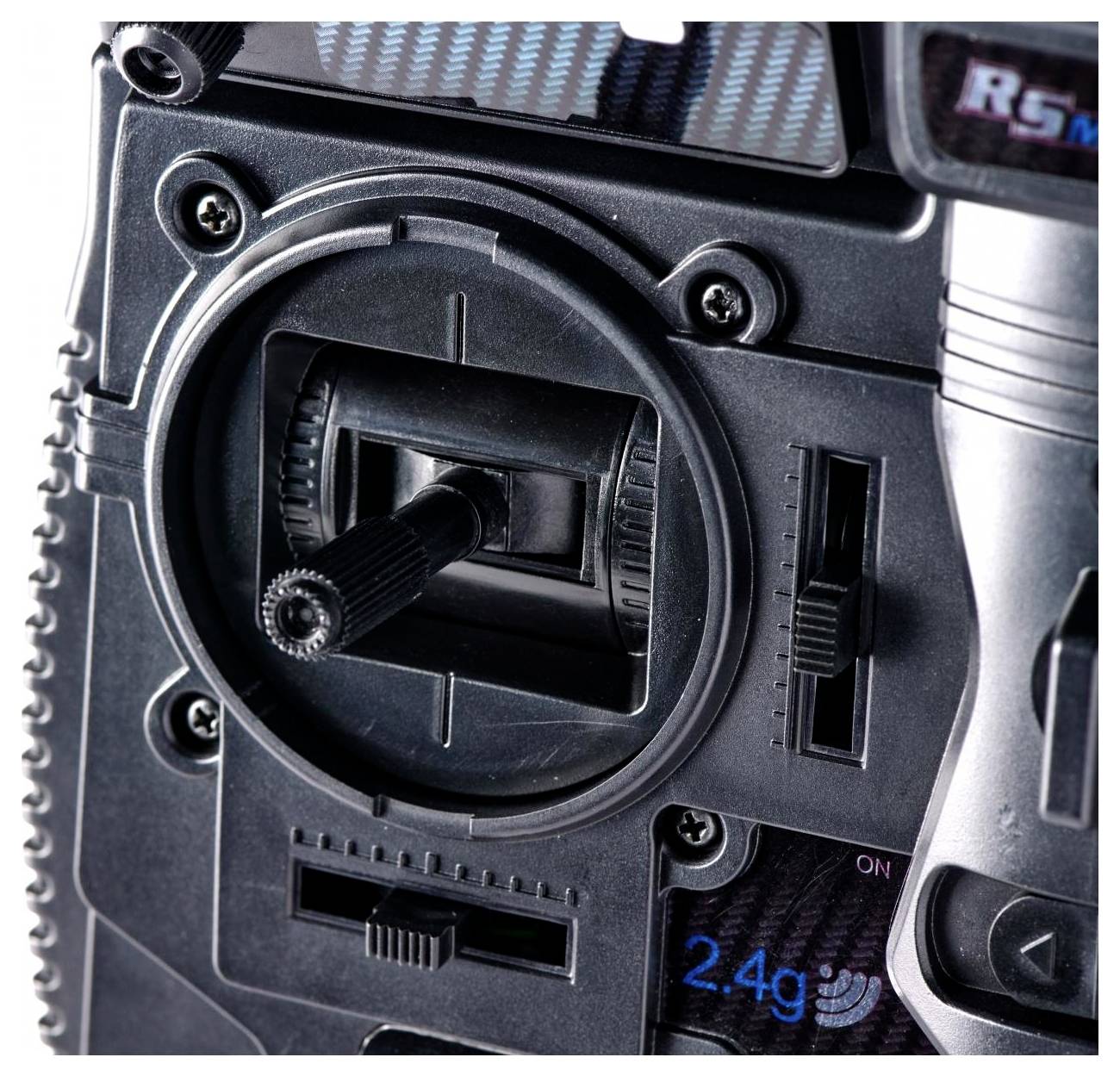

A close-up of a radio control transmitter joystick, showing a circular base, vertical sliders, and a knob, with '2.4g' text visible.

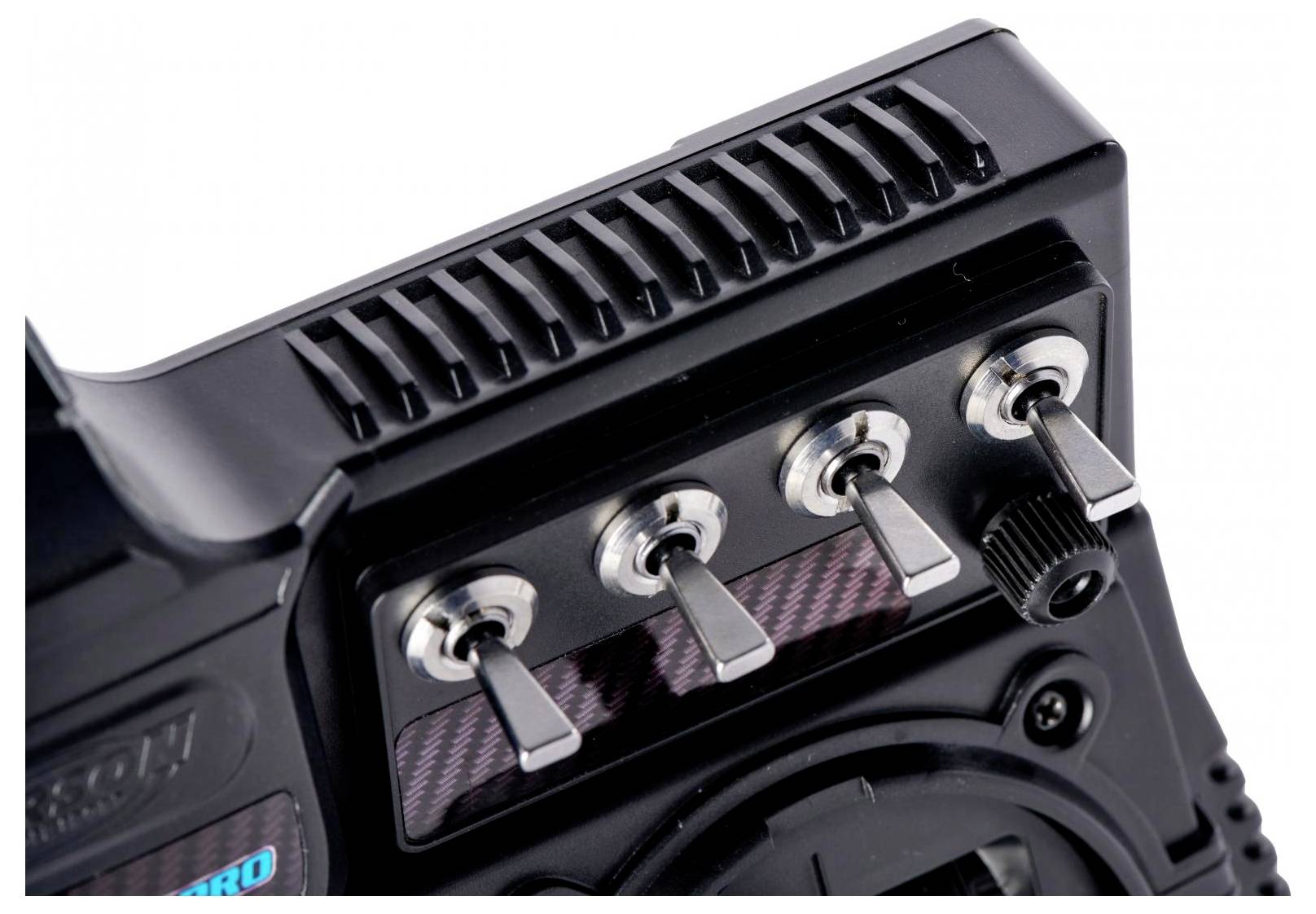

'Close-up of a black control panel with four metal toggle switches and a round button, likely part of an electronic device or remote.'

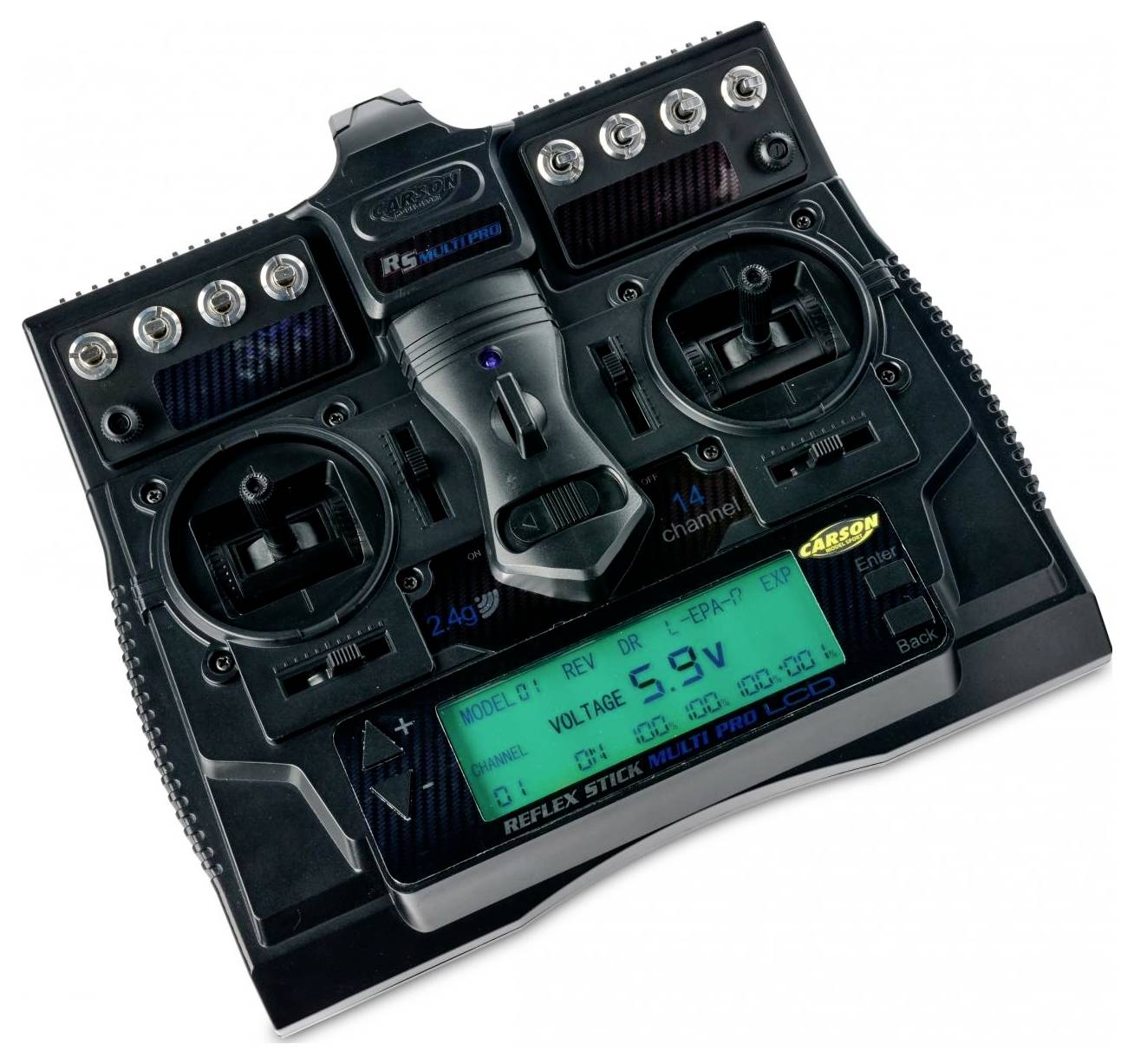

A black RC remote controller with dual joysticks and an LCD displaying 'Voltage 5.9V'.

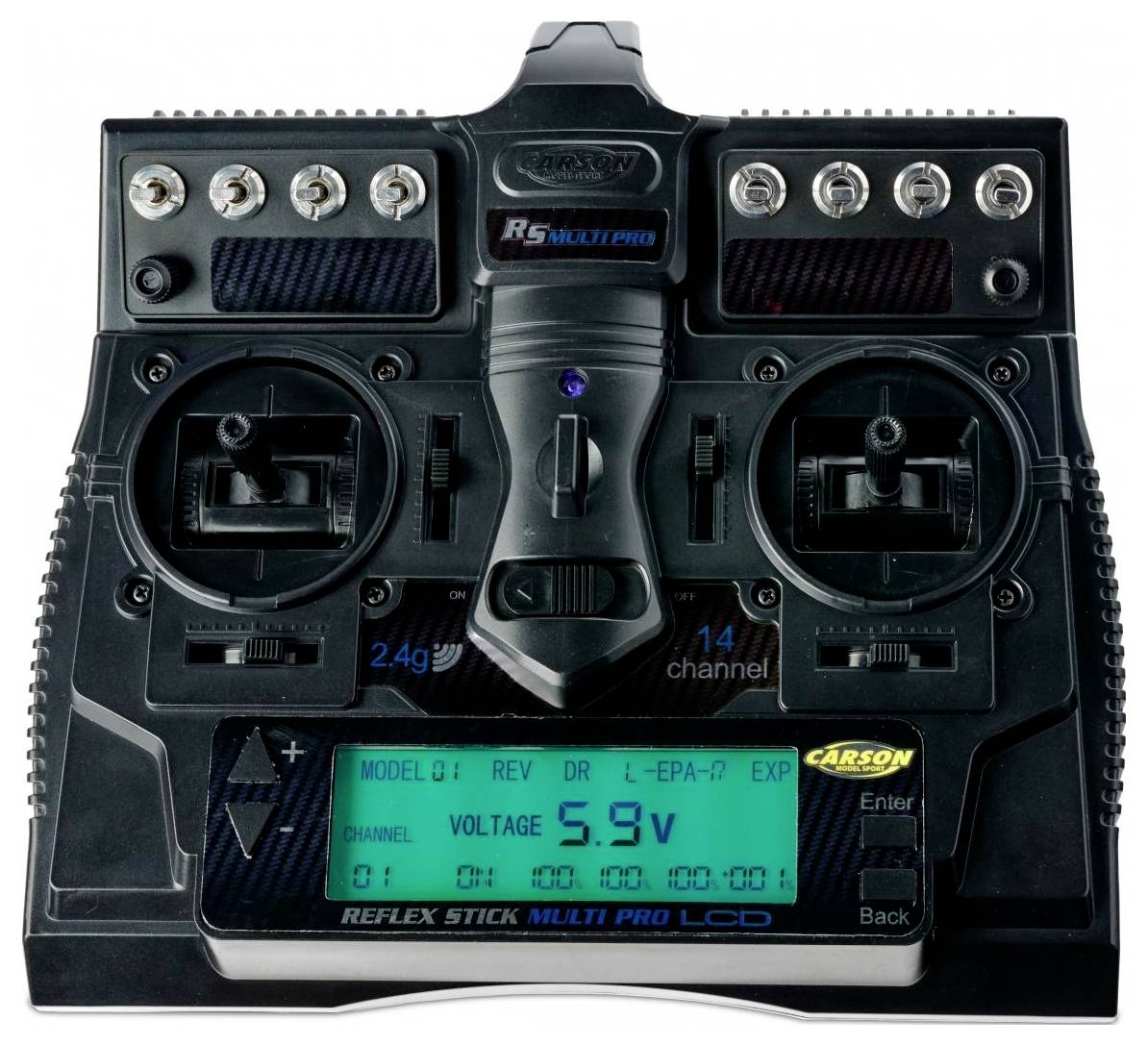

Remote control with dual joysticks, an LCD screen displaying 'VOLTAGE 5.9v', and multiple switches, used for operating RC vehicles.

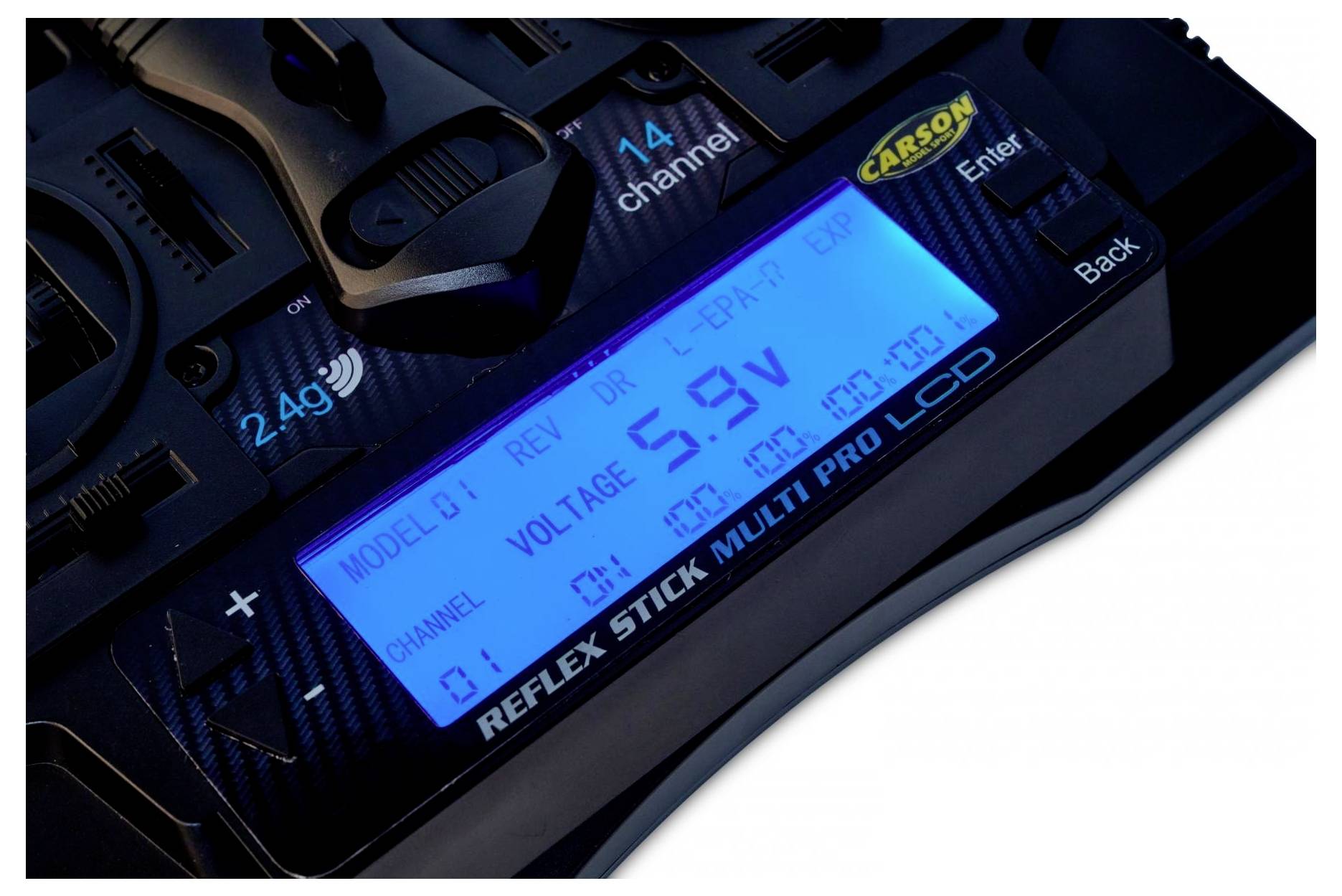

A close-up of a remote control device screen displaying 'MODEL 01' and 'VOLTAGE 5.9V', with buttons for navigation and adjustment.

1/6

Fast track dispatch on Fri, 11 Sep

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

Only 9 Piece(s) available

Report legal concerns

Highlights & Details

Remote control system Reflex Stick Multi-Pro LCD

Perfect for truck and ship models
Display with blue lighting
Failsafe feature

Technical specifications

Frequency: 2,4 GHz

Channels: 14

RC model memory: 15

HF modulation: FHSS

Features: Incl. receiver

Power supply (details): 6 V

Product type: Handheld RC

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1538756 Carson Modellsport Reflex Stick Multi Pro LCD Handheld RC 2,4 GHz No. of channels: 14 Incl. receiver

Description

Reflex Stick Multi-Pro LCD Professional, modern and technically high quality 14-channel remote control system with 15 model memory slots for universal application in many RC vehicles and ships. It can be 14 channels via 2 control stick and 10 switch (4x button/4x level switch/2x rotary potentiometer) can be controlled, for example, functions such as light/sound, horn, winch, Aufliegestutzen, water pump and water cannon. The REFLEX STICK Multi-Pro 14 Channel LCD system is with the MFC 01/03 and DMD units from TAMIYA fully compatible.

This text is machine translated.

Features

2.4 GHz FHSS system (frequency Hopping Spread Spectrum)2.4GHz Servo-Reverse (reversal of the direction of run) and trim-function for channels4x button ON/OFF/ON, 4x switch ON/OFF/ON, 2x rotary potentiometerPower supply for the receiver 4.8 – 6 V.Connector system Graupner J/RDual rate channel 1-4 (path limitation of servos)EPA channel 1-4 (servo-path limitation)ABS function channel 1-4 (stutter brake)EXP function channel 1-4 (exponential)
