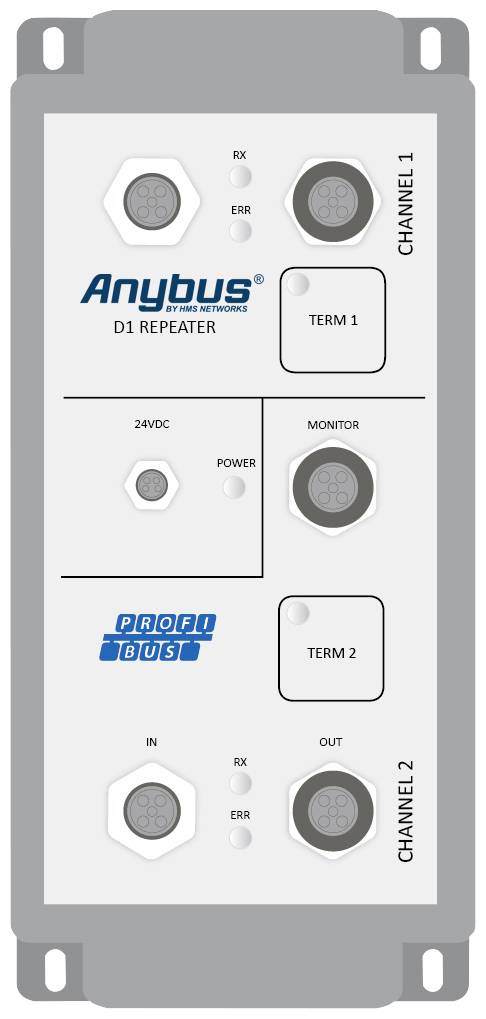

Anybus 16121 IP 66 PROFIBUS Repeater D1 Repeater Profibus 12 V DC, 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 634.45 / piece)
€ 634.45
plus VAT.
Technical specifications
- Protection class IP66
- Weight: 500g
- Product type
Repeater
- Interfaces
Profibus
- Type
IP 66 PROFIBUS Repeater D1
- Operating voltage
12 V DC
24 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
-25 °C
- Operating voltage
12-24 V DC
- Operating temperature
-25 up to 70 °C
- Dim
(W x H) 79 mm x 42 mm
- Height
42 mm
- Width
79 mm
- Manufacturer part #
16121
- Current consumption
125 mA
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2986328 Anybus 16121 IP 66 PROFIBUS Repeater D1 Repeater Profibus 12 V DC, 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2986328 Anybus 16121 IP 66 PROFIBUS Repeater D1 Repeater Profibus 12 V DC, 24 V DC 1 pc(s)
Description
The robust PROFIBUS D1 Repeater is the ideal product to create reliable PROFIBUS DP networks in demanding IP 66 environments, in which persistent dust and water belongs to the requirements
With the help of male-female M12 connectors, technicians can establish a PROFIBUS DP network quickly and easily. An additional M12 connector allows ProfiTrace to be connected to a running system using an adapter. This results in increased availability and optimization for the complete production process.
The advanced 12 Mbps core of the D1 is identical to that of the ProfiHub; it can be cascaded unlimited and increases the RS 485 signal strength. He does not have the frustrating short-circuit bug and the data is permanently monitored for glitches; these are digitally filtered out if necessary. Each channel has terminating resistors that can be switched off and is able to support 31 devices.
This text is machine translated.
With the help of male-female M12 connectors, technicians can establish a PROFIBUS DP network quickly and easily. An additional M12 connector allows ProfiTrace to be connected to a running system using an adapter. This results in increased availability and optimization for the complete production process.
The advanced 12 Mbps core of the D1 is identical to that of the ProfiHub; it can be cascaded unlimited and increases the RS 485 signal strength. He does not have the frustrating short-circuit bug and the data is permanently monitored for glitches; these are digitally filtered out if necessary. Each channel has terminating resistors that can be switched off and is able to support 31 devices.
This text is machine translated.
