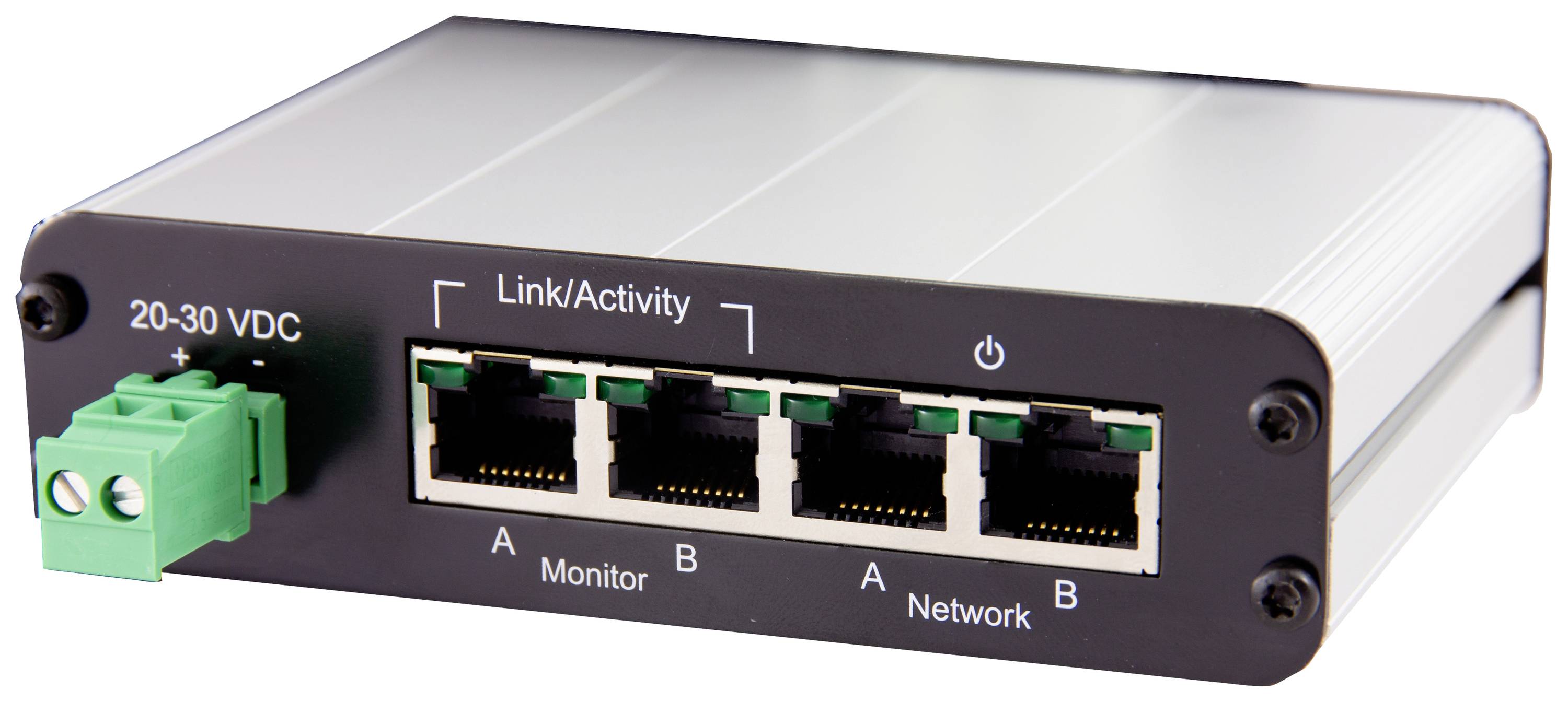

Anybus 513-00031 EtherMIRROR 10/100 Switch Ethernet, RJ-45 20 V DC, 30 V DC 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 749.00 / piece)
€ 749.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Switch
- Interfaces
Ethernet
RJ-45
- Type
EtherMIRROR 10/100
- Operating voltage
20 V DC
30 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
0 °C
- Operating voltage
20-30 V DC
- Operating temperature
0 up to 70 °C
- Dim
(W x H) 88 mm x 30 mm
- Height
30 mm
- Width
88 mm
- Manufacturer part #
513-00031
- Current consumption
50 mA at 24Vdc
Documents & Downloads
Datasheet
Datasheet 2900972 Anybus 513-00031 EtherMIRROR 10/100 Switch Ethernet, RJ-45 20 V DC, 30 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2900972 Anybus 513-00031 EtherMIRROR 10/100 Switch Ethernet, RJ-45 20 V DC, 30 V DC 1 pc(s)
Description
The EtherMIRROR from PROCENTEC was developed to enable access to passive diagnostic information without shutting down the system. It serves as a measurement access that can easily be installed in any industrial network with PROFINET or Ethernet/IP.
In conjunction with the PROCENTEC EtherTAP, the EtherMIRROR enables access to telegram traffic and diagnostic information without even actively participating in the network. The ports thereby support a transfer speed of up to 100 Mbit in a full-duplex process. The main advantage of the EtherTAP is to avoid costly plant downtime, since no connections need to be disconnected to access diagnostics. The EtherTAP and EtherMIRROR (work in harmonic symbiosis) are fully compatible with each other and continuously reflect all messages between the PLC and the first switch. Valuable information from message frame recordings, such as lost packets, jitter, cycle times and alarm messages, is therefore immediately available.
This text is machine translated.
In conjunction with the PROCENTEC EtherTAP, the EtherMIRROR enables access to telegram traffic and diagnostic information without even actively participating in the network. The ports thereby support a transfer speed of up to 100 Mbit in a full-duplex process. The main advantage of the EtherTAP is to avoid costly plant downtime, since no connections need to be disconnected to access diagnostics. The EtherTAP and EtherMIRROR (work in harmonic symbiosis) are fully compatible with each other and continuously reflect all messages between the PLC and the first switch. Valuable information from message frame recordings, such as lost packets, jitter, cycle times and alarm messages, is therefore immediately available.
This text is machine translated.
