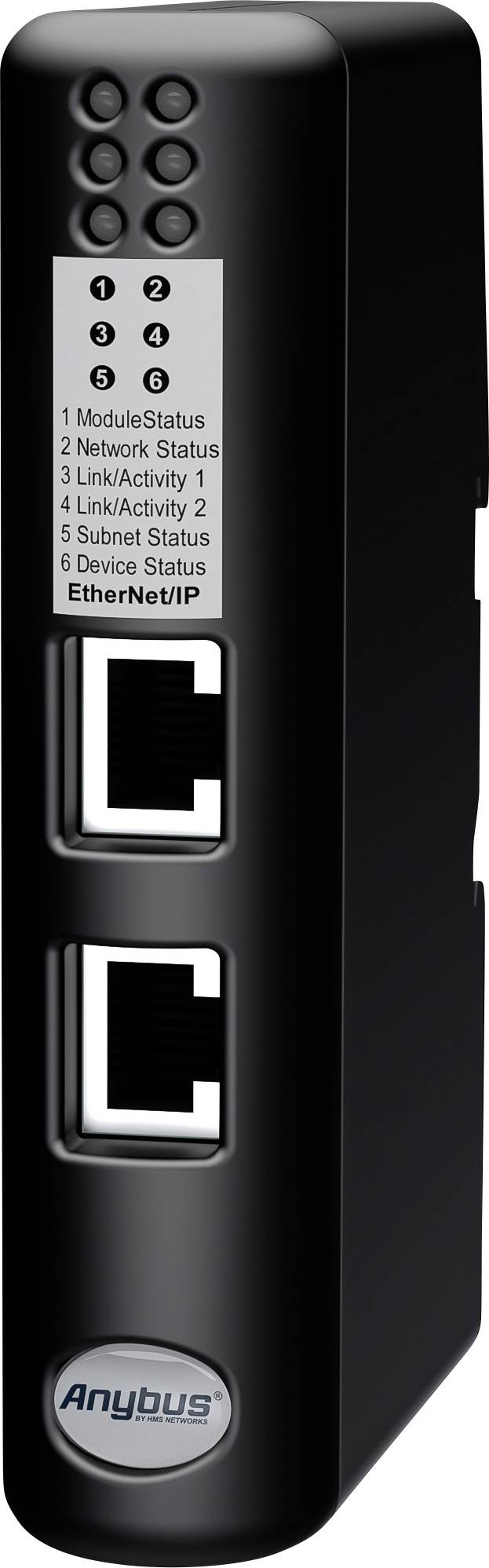

Anybus AB7306 CANopen Master/EtherNet/IP 2-Port Slave Gateway CANopen 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 923.53 / piece)
€ 923.53
plus VAT.
Technical specifications
- Length 120 mm.
- Weight: 150 g
- Configuration port: USB (USB/CAN adapter not included)
- Configuration switch: On the gateway to set the CANopen address and baud rate
- CANopen connection: 9-FU34poliger D-Sub plug (included)
- Fieldbus/Ethernet connection: (See description of interface above)
- Galvanic isolation: On CAN and BUS/Ethernet side
- CANopen baud rate: 20 kbit/s - 1 Mbit/s.
- Mounting: DIN rail (EN 50022 standard)
- Protection class IP20, NEMA rating 1
- Product type
Gateway
- Interfaces
CANopen
- Type
CANopen Master/EtherNet/IP 2-Port Slave
- Operating voltage
24 V DC
- Max. operating temperature
+55 °C
- Min. operating temperature
-25 °C
- Operating temperature
-25 up to +55 °C
- Dim
(W x H) 75 mm x 27 mm
- Max. current consumption
300 mA
- Height
27 mm
- Width
75 mm
- Manufacturer part #
AB7306
- Type
AnyBus CANopen Master/Ethernet/IP 2-Port Slave Gateway
- Current consumption
100 mA
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2390269 Anybus AB7306 CANopen Master/EtherNet/IP 2-Port Slave Gateway CANopen 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2390269 Anybus AB7306 CANopen Master/EtherNet/IP 2-Port Slave Gateway CANopen 24 V DC 1 pc(s)
Description
AnyBus X gateway - CANopen master - Ethernet/IP adapter
The AnyBus X gateway CANopen connects an Ethernet/IP network to a subordinate CANopen network and thus enables the integration of CANopen devices into an Ethernet/IPSPS system.
FAST TRANSFER OF I/O DATA
The X-gateway is primarily intended for the transmission of cyclic I/O data between the two networks. The I/O data of the Ethernet/IP network is written to CANopen objects that can be assigned to CANopen PDOs and vice versa. The gateway is a full master/manager in the CANopen network and an adapter/slave in the Ethernet/IP network. The data transfer between the two networks is transparent and up to 510 bytes can be transferred in each direction.
SIMPLE CONFIGURATION – NO PROGRAMMING REQUIRED
HMS recommends the AnyBus Configuration Manager - CANopen for CANopen configuration. The CANopen configuration can also be done with a conventional CANopen standard configurator. No programming knowledge is required for the configuration.
FEATURES AND BENEFITS
Fast exchange of cyclic I/O data between a CANopen and an Ethernet/IP network (5 ms)
Due to the full CANopen Master/Manager functionality, no PLC is required in the CANopen network
Connection of up to 126 CANopen slave devices
Compatible with PLCs from leading manufacturers
Simple CANopen configuration with the software "AnyBus Configuration Manager - CANopen". No programming required.
Possibility of designing own web pages for diagnostic purposes, for example
Robust stand-alone housing for use in harsh industrial environments
Qualified, personalized support
This text is machine translated.
The AnyBus X gateway CANopen connects an Ethernet/IP network to a subordinate CANopen network and thus enables the integration of CANopen devices into an Ethernet/IPSPS system.
FAST TRANSFER OF I/O DATA
The X-gateway is primarily intended for the transmission of cyclic I/O data between the two networks. The I/O data of the Ethernet/IP network is written to CANopen objects that can be assigned to CANopen PDOs and vice versa. The gateway is a full master/manager in the CANopen network and an adapter/slave in the Ethernet/IP network. The data transfer between the two networks is transparent and up to 510 bytes can be transferred in each direction.
SIMPLE CONFIGURATION – NO PROGRAMMING REQUIRED
HMS recommends the AnyBus Configuration Manager - CANopen for CANopen configuration. The CANopen configuration can also be done with a conventional CANopen standard configurator. No programming knowledge is required for the configuration.
FEATURES AND BENEFITS
Fast exchange of cyclic I/O data between a CANopen and an Ethernet/IP network (5 ms)
Due to the full CANopen Master/Manager functionality, no PLC is required in the CANopen network
Connection of up to 126 CANopen slave devices
Compatible with PLCs from leading manufacturers
Simple CANopen configuration with the software "AnyBus Configuration Manager - CANopen". No programming required.
Possibility of designing own web pages for diagnostic purposes, for example
Robust stand-alone housing for use in harsh industrial environments
Qualified, personalized support
This text is machine translated.
Scope of delivery
- Quick start instructions
- Configuration software available via download
- AnyBus OPC Server software (OPC Classic for Windows) available via download
- (Power supply not included)
- PLEASE NOTE: A USB/CAN adapter is required once for the configuration. If you do not have a USB/CAN adapter, we recommend the adapter "IXXAT USB-to-CAN V2 compact" as an accessory Order No.: 1.01.0281.12001
