Anybus AB7665 EtherNet/IP Slave/J1939 Slave Gateway CAN bus 24 V DC 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 829.00 / piece)
€ 829.00
incl. VAT
14-day return policy included
Technical specifications
- Length: 114 mm
- Weight 400 g
- Housing material: Aluminum and plastic
- Mounting position: Vertical / flat
- Galvanic isolation: On both BUS/Ethernet sides
- Protection class IP20, NEMA rating 1
- Mounting: DIN rail (EN 50022 standard)
- I/O configuration: Via USB port and the software "AnyBus Configuration Manager"
- Product type
Gateway
- Interfaces
CAN bus
- Type
EtherNet/IP Slave/J1939 Slave
- Operating voltage
24 V DC
- Max. operating temperature
+65 °C
- Min. operating temperature
-25 °C
- Operating temperature
-25 up to +65 °C
- Dim
(W x H) 44 mm x 127 mm
- Max. current consumption
400 mA
- Height
127 mm
- Width
44 mm
- Manufacturer part #
AB7665
- Type
AnyBus Ethernet/IP slave/J1939 slave gateway
- Current consumption
200 mA
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2390255 Anybus AB7665 EtherNet/IP Slave/J1939 Slave Gateway CAN bus 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2390255 Anybus AB7665 EtherNet/IP Slave/J1939 Slave Gateway CAN bus 24 V DC 1 pc(s)
Description

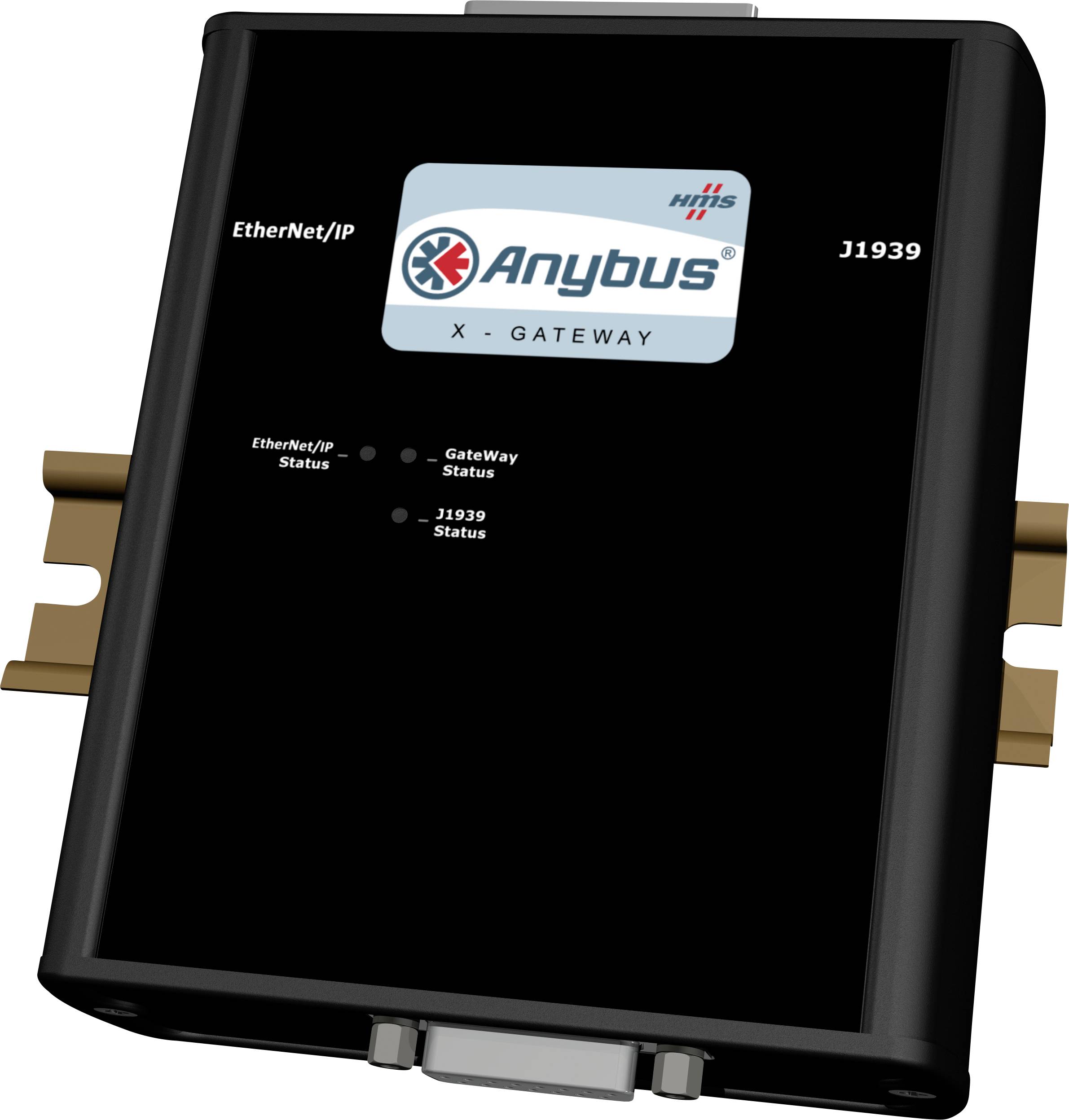

AnyBus X gateway - Ethernet Adapter/Server - J1939
The AnyBus X gateway allows you to monitor and control data from a commercial vehicle J1939 network from an Ethernet-based PLC system or device. The gateway supports Ethernet/IP and Modbus TCP protocols.
FAST I/O DATA TRANSFER BETWEEN TWO NETWORKS
J1939 message data is mapped to I/O tables so that they are accessible to the Ethernet network. In the Ethernet/IP network, the X-gateway is an adapter so that J1939 data (I/O or Explicit Messages) can be transferred to the scanner of the Ethernet/IP network. In Modbus TCP, the gateway is a server so that the J1939 data can be addressed as Modbus registers by a Modbus TCP client.
SIMPLE COMMISSIONING - NO PROGRAMMING REQUIRED
HMS provides a free Windows-based configuration tool (BWConfig) for the X-gateway. This PC-based software allows users to assign J1939 parameter data (PGN) to a memory area that can be addressed via the Gateway's Ethernet interface.
During configuration, an I/O table is created with selected J1939 PGNs that are read or written from the J1939 network. The BWConfig configuration tool assigns the I/O table to an address range that is accessible to the Gateway's Ethernet interface.
Features and benefits
Monitor and control commercial vehicle J1939 network data from an Ethernet-based PLC system or device
Supports Ethernet/IP or Modbus TCP protocols
Typical applications/industries: Power generators, oil & gas, marine, utility and heavy duty vehicles, diesel engine-based systems with J1939 support
Max. 500 bytes of I/O data in each direction
Simple configuration with the Windows-based software BWConfig, no programming required
10/100 Mbit/s Ethernet adapter interface with IT functionality: HTTP server, FTP server, Telnet server and e-mail client
Robust aluminum stand-alone housing
Qualified, technical support
This text is machine translated.
Scope of delivery
- Quick start instructions
- USB configuration cable
- Configuration software available via download
- AnyBus OPC Server software (OPC Classic for Windows) available via download
- Power supply not included
