Anybus AB7677 EtherNet/IP Master/CANopen Slave Gateway Ethernet/IP 24 V DC 1 pc(s)

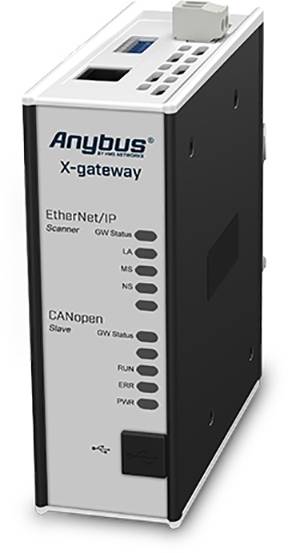

AnyBus X-gateway – Ethernet/IP Scanner – CANopen Slave
The AnyBus X gateway connects an Ethernet/IP network to a CANopen network, enabling seamless information flow between the two networks.

FAST I/O DATA TRANSFER BETWEEN TWO NETWORKS
The X-gateway is primarily intended for the transmission of cyclic I/O data between the two networks, thus relieving the PLC of additional tasks. The gateway is a scanner in the Ethernet/IP network and a slave in the CANopen network. Data transfer is transparent and up to 512 bytes of I/O data can be transferred in any direction.

SIMPLE COMMISSIONING - NO PROGRAMMING REQUIRED
The connection between the two networks is configured with the AnyBus Configuration Manager software. No programming knowledge is required for this. The I/O data volume to be transferred is preset to 20 bytes at the factory.

Features and benefits
Fast exchange of cyclic I/O data between the Ethernet/IP and CANopen network (10-15 ms)
Compatible with PLCs from leading manufacturers
Powerful scanner interface makes the PLC in the Ethernet/IP network unnecessary
Supports up to 512 bytes of input and output data in each direction
For diagnostic purposes, control and status information can be added to the I/O data
Robust stand-alone housing for use in harsh industrial environments
Qualified, personalized support
