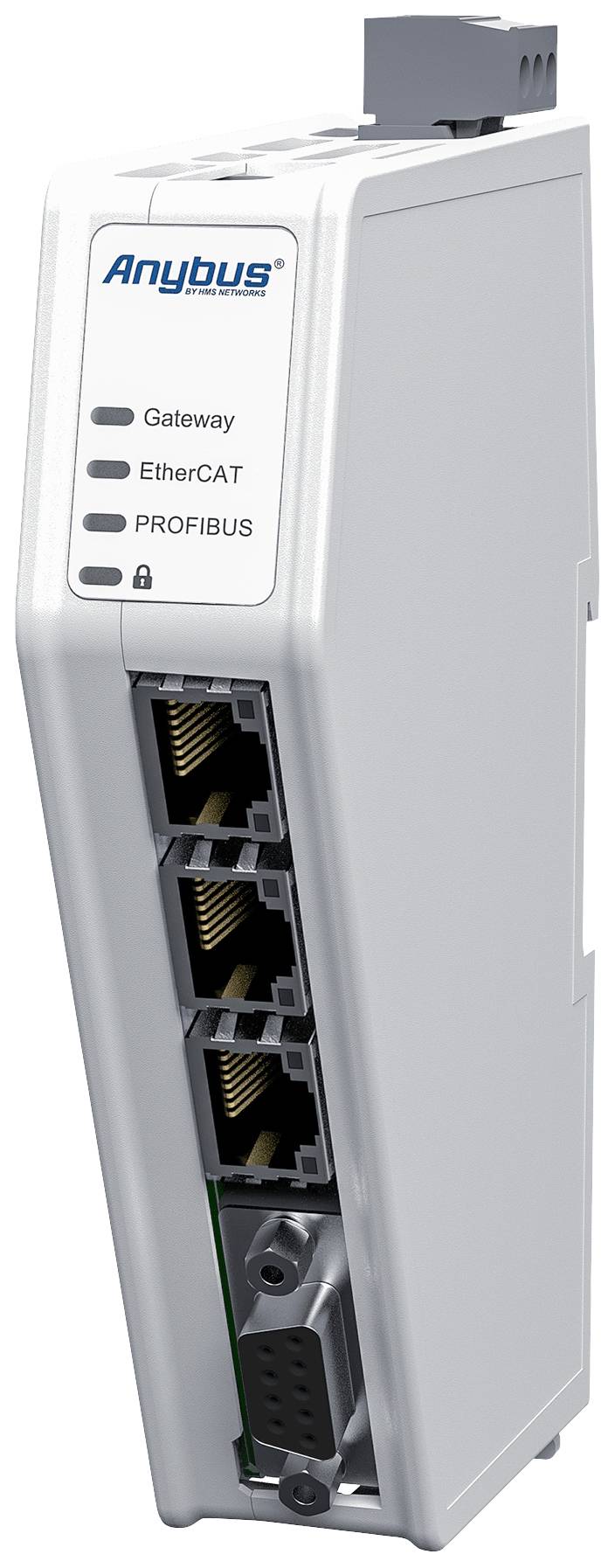

Anybus ABC3100 ABC3100 Gateway EtherCat, Profibus 24 V DC 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 726.89 / piece)
€ 726.89
plus VAT.
Highlights & Details
Anybus Communicator – EtherCAT MainDevice – PROFIBUS device (slave)
- Dedicated Ethernet configuration port: No special cables required
- Intuitive, web-based drag-and-drop configuration interface: No installation of additional software required
- Front panel connections make connecting cables easy, and the slim form factor saves space on the DIN rail
- Troubleshooting with powerful diagnostic capability, including live data monitoring, status screen, and support package.
Technical specifications
- Storage temperature: -40 to 85°C.
- Relative humidity: 0-95% non-condensing
- Mains connection 3-pin screw terminal connection
- Protection against polarity reversal and short-circuit protection
- Vibration and shock resistance IEC 60068-2-27, IEC 60068-2-6
- Configuration: Configuration software Web-based configuration
- Configuration Ports: Dedicated 10/100 Mbps RJ45 Ethernet configuration port and other Ethernet ports
- SECURITY: Secure boot: Ensures software authenticity
- Safety switch: Physical switch that enables/disables access to the Web-based configuration interface
- Product type
Gateway
- Interfaces
EtherCat
Profibus
- Type
ABC3100
- Operating voltage
24 V DC
- Max. operating temperature
70 °C
- Min. operating temperature
-25 °C
- Operating voltage
160 mA at 24 V, maximum 400 mA at 12 V
- Operating temperature
-25 up to 70 °C
- Dim
(W x H) 27 mm x 144 mm
- Max. current consumption
400 mA
- Height
144 mm
- Width
27 mm
- Manufacturer part #
ABC3100
- Outputs
Anybus communicator - coupling of EtherCAT main device - Profibus DP device (slave)
- Current consumption
160 mA
- UKCA
yes
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 2875325 Anybus ABC3100 ABC3100 Gateway EtherCat, Profibus 24 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2875325 Anybus ABC3100 ABC3100 Gateway EtherCat, Profibus 24 V DC 1 pc(s)
Description
EtherCAT MainDevice – PROFIBUS
With the new Anybus Communicator, the connection of EtherCAT subordinate devices (slaves) to PROFIBUS-based controllers (PLCs) has never been so easy. Communicator provides reliable and fast data transfer, making it ideal for applications that require fast transfer of large amounts of data. Communicator is based on proven Anybus technology and the intuitive web interface with drag-and-drop functionality makes it easy to configure the Communicator.
SEARCH FOR ETHERCAT DEVICES
With Anybus Communicator, you can scan the EtherCAT network directly from the web interface for existing devices. Communicator automatically identifies each device and maps its data to the control system, eliminating the need to manually search for and import device description files (ESI). This saves time and allows you to focus on more important tasks.
This text is machine translated.
With the new Anybus Communicator, the connection of EtherCAT subordinate devices (slaves) to PROFIBUS-based controllers (PLCs) has never been so easy. Communicator provides reliable and fast data transfer, making it ideal for applications that require fast transfer of large amounts of data. Communicator is based on proven Anybus technology and the intuitive web interface with drag-and-drop functionality makes it easy to configure the Communicator.
SEARCH FOR ETHERCAT DEVICES
With Anybus Communicator, you can scan the EtherCAT network directly from the web interface for existing devices. Communicator automatically identifies each device and maps its data to the control system, eliminating the need to manually search for and import device description files (ESI). This saves time and allows you to focus on more important tasks.
This text is machine translated.
Scope of delivery
- Communicator
- 3-pin power supply plug
- Brief instructions (English)
- Compliance Information Sheet
