A modern industrial module with three network interfaces and a serial port. Labelled: 'Gateway', 'EtherNet/IP', 'PROFIBUS'.

A modern industrial module with three network interfaces and a serial port. Labelled: 'Gateway', 'EtherNet/IP', 'PROFIBUS'.

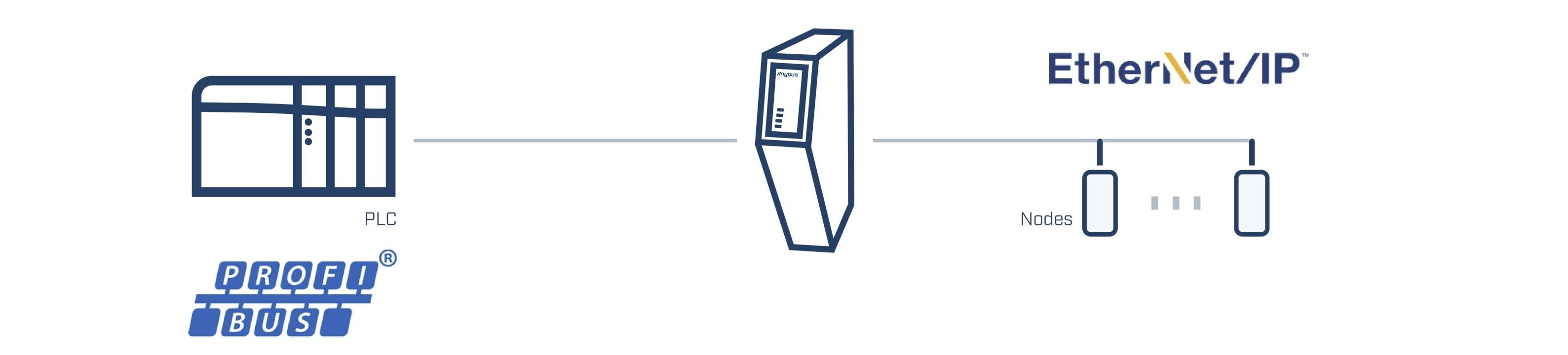

Diagram shows the connection of a PLC via PROFIBUS and Ethernet/IP to two nodes.

1/2

Anybus

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,465.00 / piece)

€ 1,465.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Anybus communicator Ethernet/IP scanner - Profibus DP device

Transmission of up to 1500 bytes (depending on the network)
Import EDS files into the Web UI
diagnostics
Endian conversion (byte swap)

Technical specifications

Product type: Gateway

Interfaces: Ethernet/IP
Profibus

Type: ABC3300-A

Operating voltage: 24 V DC

Max. operating temperature: 70 °C

Min. operating temperature: -25 °C

Operating voltage: 12-30 V DC

Operating temperature: -25 up to 70 °C

Dim: (W x H) 27 mm x 144 mm

Max. current consumption: 125 mA

Height: 144 mm

Width: 27 mm

Manufacturer part #: ABC3300-A

Interfaces: Ethernet/IP scanner
Profibus device

Current consumption: 90 mA

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3368933 Anybus ABC3300-A Gateway Ethernet/IP, Profibus 24 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3368933 Anybus ABC3300-A Gateway Ethernet/IP, Profibus 24 V DC 1 pc(s)

Description

The Anybus Communicator Ethernet/IP scanner on PROFIBUS allows you to connect Ethernet/IP devices to PROFIBUS controllers. Anybus communicators ensure reliable, secure and fast data transfer between various industrial networks. Thanks to the intuitive, web-based user interface they are also easy to use.

This text is machine translated.

Description

The Anybus Communicator Ethernet/IP scanner on PROFIBUS allows you to connect Ethernet/IP devices to PROFIBUS controllers. Anybus communicators ensure reliable, secure and fast data transfer between various industrial networks. Thanks to the intuitive, web-based user interface they are also easy to use.

This text is machine translated.
