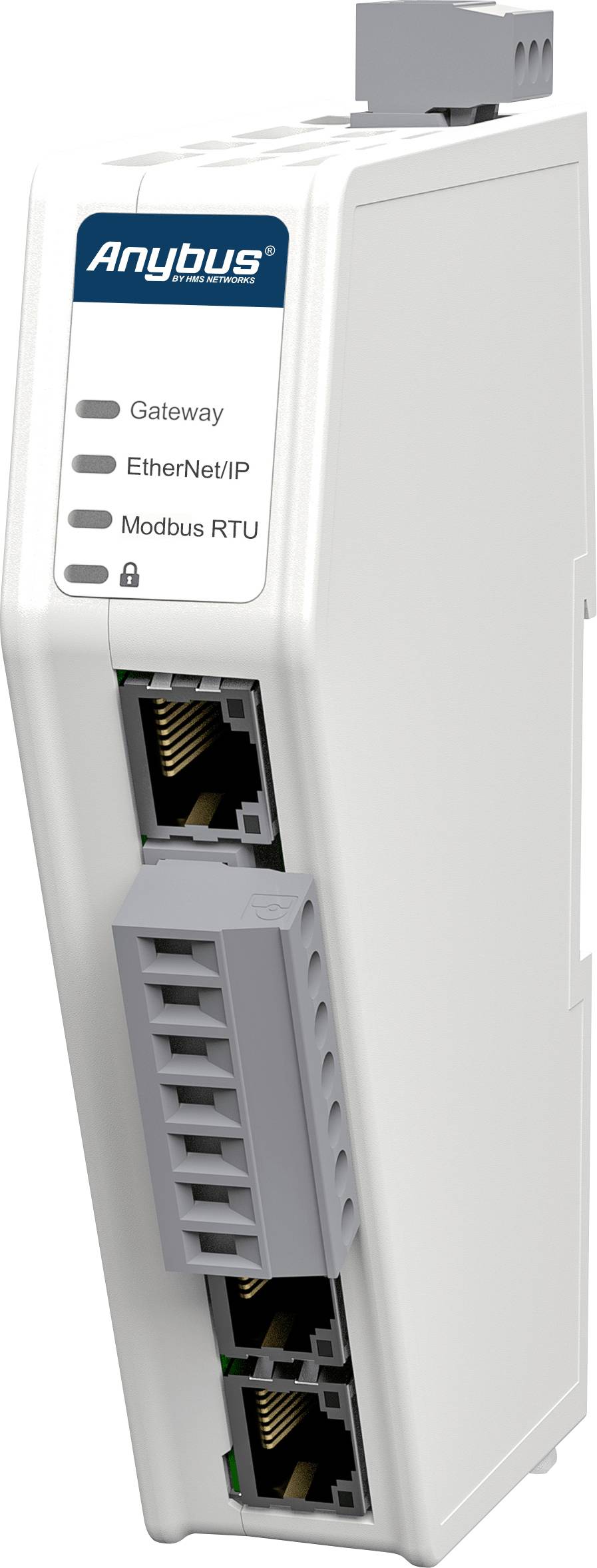

Electronic gateway device by Anybus, suitable for EtherNet/IP and Modbus RTU connections, with multiple Ethernet ports.

Electronic gateway device by Anybus, suitable for EtherNet/IP and Modbus RTU connections, with multiple Ethernet ports.

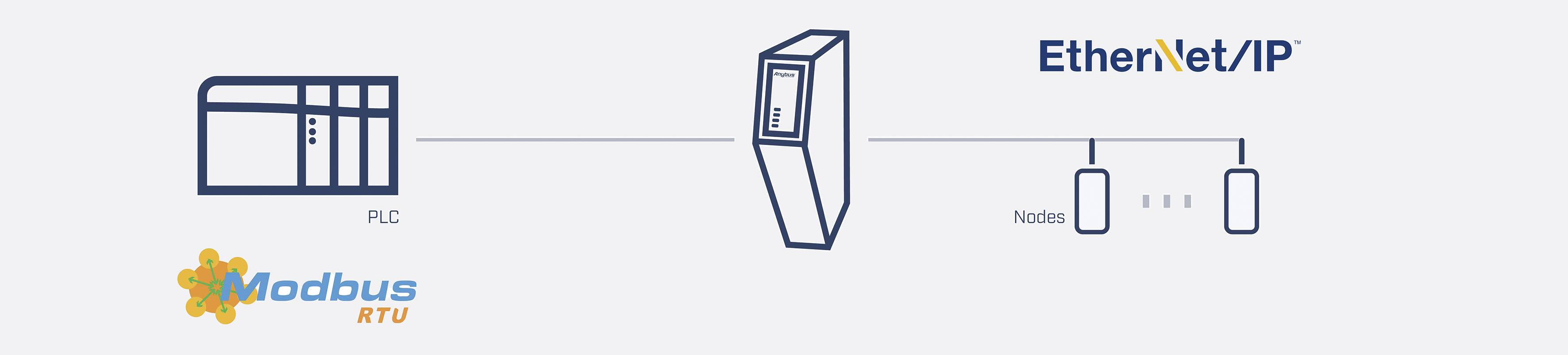

'Diagram shows the connection between PLC-Modbus RTU and EtherNet/IP nodes. Illustrates control system structure.'

1/2

Anybus

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 1,205.00 / piece)

€ 1,205.00

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Anybus Communicator - Ethernet/IP scanner on Modbus RTU server

Import EDS files
Immediate data transfer
Transfer of 1500 bytes from and to Modbus RTU control (SPS)
Diagnostics and support
Secure and segment networks
Easy configuration via web interface

Technical specifications

Product type: Gateway

Interfaces: Modbus-TCP
Modbus-RTU

Type: ABC3310-A

Operating voltage: 24 V DC

Max. operating temperature: 70 °C

Min. operating temperature: -25 °C

Operating voltage: 12-30 V DC

Operating temperature: -25 up to 70 °C

Dim: (W x H) 27 mm x 144 mm

Max. current consumption: 125 mA

Height: 144 mm

Width: 27 mm

Manufacturer part #: ABC3310-A

Interfaces: Ethernet/IP scanner
Modbu-RTU Server

Current consumption: 90 mA

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3413045 Anybus ABC3310-A Gateway Modbus-TCP, Modbus-RTU 24 V DC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3413045 Anybus ABC3310-A Gateway Modbus-TCP, Modbus-RTU 24 V DC 1 pc(s)

Description

The Anybus Communicator Ethernet/IP scanner on Modbus RTU server allows you to connect Ethernet/IP devices to Modbus RTU controls. Anybus Communicator ensures reliable, secure and fast data transfer between various industrial networks. Thanks to the intuitive, web-based user interface they are also easy to use.

This text is machine translated.

Description

The Anybus Communicator Ethernet/IP scanner on Modbus RTU server allows you to connect Ethernet/IP devices to Modbus RTU controls. Anybus Communicator ensures reliable, secure and fast data transfer between various industrial networks. Thanks to the intuitive, web-based user interface they are also easy to use.

This text is machine translated.
