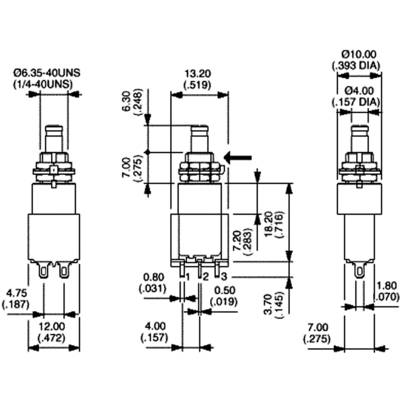

Image similar
APEM 8636A 8636A Pushbutton switch 250 V AC 3 A 1 x On/On latch 1 pc(s)
Product type
Pushbutton switch
Lighting type
None
Switch position
1 x On/On
Contact type
1 change-over
Connection
Solder tag
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 13.10 / piece)
€ 13.10
incl. VAT
14-day return policy included
Technical specifications
- Product type
Pushbutton switch
- Switch/button features
Protruding
- Casing/button colour
Metal
- Functions
latch
- Type
Pressure switches 1-pin
- Lighting type
None
- Switch position
1 x On/On
- Contact type
1 change-over
- Contact material
Silver (Ag)
- Connection
Solder tag
- Switching voltage
250 V AC
- Switching current (max.)
3 A
- Dielectric strength
1000 Vrms/50 Hz (between connections), 2000 Vrms/50 Hz (between connections and earth)
- Recess diameter
6.35 mm
- Electrical lifespan
30000 cycles
- Content
1 pc(s)
- Insulation resistance
(500 V) 1000 MΩ
- Contact resistance
10 mΩ
- Board thickness (max.)
7 mm
- Type
8636A
- Switching capacity
(with nominal resistive load) 3 A/250 V/AC, 6 A/125 V/AC, 4 A/30 V DC
- Switching voltage
250 V AC
- Switching current
3 A
- Connection
Solder lugs
Documents & Downloads
Datasheet
Datasheet 700036 APEM 8636A 8636A Pushbutton switch 250 V AC 3 A 1 x On/On latch 1 pc(s)
User & Safety Instructions
User & Safety Instructions 700036 APEM 8636A 8636A Pushbutton switch 250 V AC 3 A 1 x On/On latch 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
