APEM PHAP3361 PHAP3361 Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary 1 pc(s)

A small, rectangular SMD push button, suitable for electronic circuits. It has two contacts for PCB mounting.

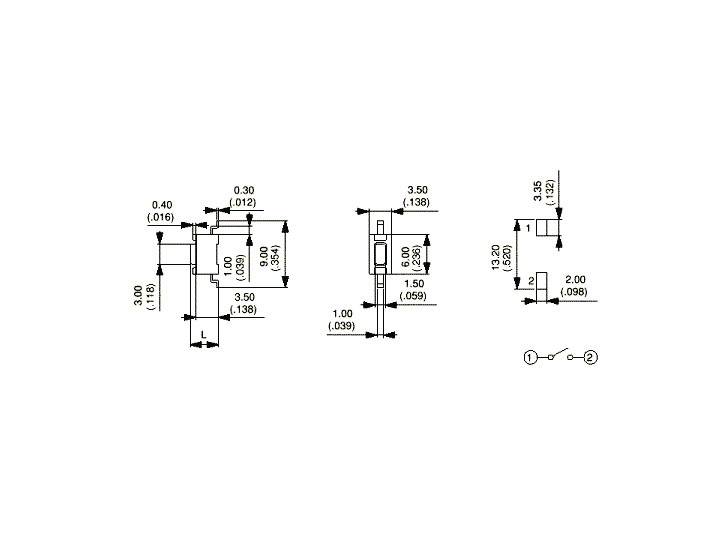

Technical drawing with various views and dimensions of a mechanical component, measurements given in inches.
1/2
Product type
Pushbutton
Lighting type
None
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
SMD
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
705 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 3
Total (€ 0.83 / piece)
€ 0.83
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Vibrations 10 - 500 Hz/10 g
Product type

Pushbutton

Switch/button features

Planar

Functions

momentary

Type

Push button for surface mounting

Lighting type

None

Switch position

1 x Off/(On)

Contact type

1 maker

Connection

SMD

Switching voltage

12 V DC

Switching current (max.)

0.05 A

Dielectric strength

250 V/AC/60 (4)

Min. temperature

-20 °C

Max. temperature

+70 °C

Electrical lifespan

30000 cycles

Actuating force

1.8 N

Content

1 pc(s)

Insulation resistance


100 MΩ

Front panel cut-out

6 x 3.5 mm

Board thickness (max.)

5 mm

Type

PHAP3361

Actuating force

(±0.5) 1.8 N

Temperature range

-20 - +70 °C

Storage temperature

-30 - +80 °C

Documents & Downloads

Datasheet

Datasheet 700256 APEM PHAP3361 PHAP3361 Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary 1 pc(s)

User & Safety Instructions

User & Safety Instructions 700256 APEM PHAP3361 PHAP3361 Pushbutton 12 V DC 0.05 A 1 x Off/(On) momentary 1 pc(s)

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
