Two digital sound engines per voice with 30 selectable oscillator modes: Superwave, wavetable, Karplus Strong, Noise and much more
Extensive modulation possibilities including FM, ring modulation and mutual influence of the sound engines
Per voice: ADSR envelope, multi-segment envelope/LFO, two LFOs and analog multimode filters (low pass, band pass, high pass)
Modulation matrix with 7 sources and 13 targets
3 effect slots (as insert or send effect) with 10 effect types
Performance arpeggiator with ratchet and random functions
Step sequencer with 64 steps
Intuitive operation via OLED display as well as 40 controllers, encoders and buttons
Memory for 320 Factory- and 256 User-Presets
Stereo line output: 2 x 6.3 mm jack
Line input 6.3 mm jack
Stereo headphone output 6.3 mm jack
Sustain pedal connection 6.3 mm jack
Clock input / output and reset output 3.5 mm mini jack
MIDI in/out/Thru
USB-B ports
Dimensions (W x D x H) 578 x 231 x 55 mm
Weight: 2.94 kg
Incl. external power supply (12 V DC, 1 A), USB-cable and MiniFreak V software (download)
Technical specifications
Memory for 320 Factory- and 256 User-Presets
Stereo line output: 2 x 6.3 mm jack
Line input 6.3 mm jack
Stereo headphone output 6.3 mm jack
Sustain pedal connection 6.3 mm jack
Clock input / output and reset output 3.5 mm mini jack
MIDI in/out/Thru
USB-B ports
Product type
Synthesizer
Weight
2.94 kg
Width
57.8 cm
Height
5.5 cm
Length
23.1 cm
Factory colour
Black
Features
incl. software
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3429039 Arturia MiniFreak Synthesizer
Description

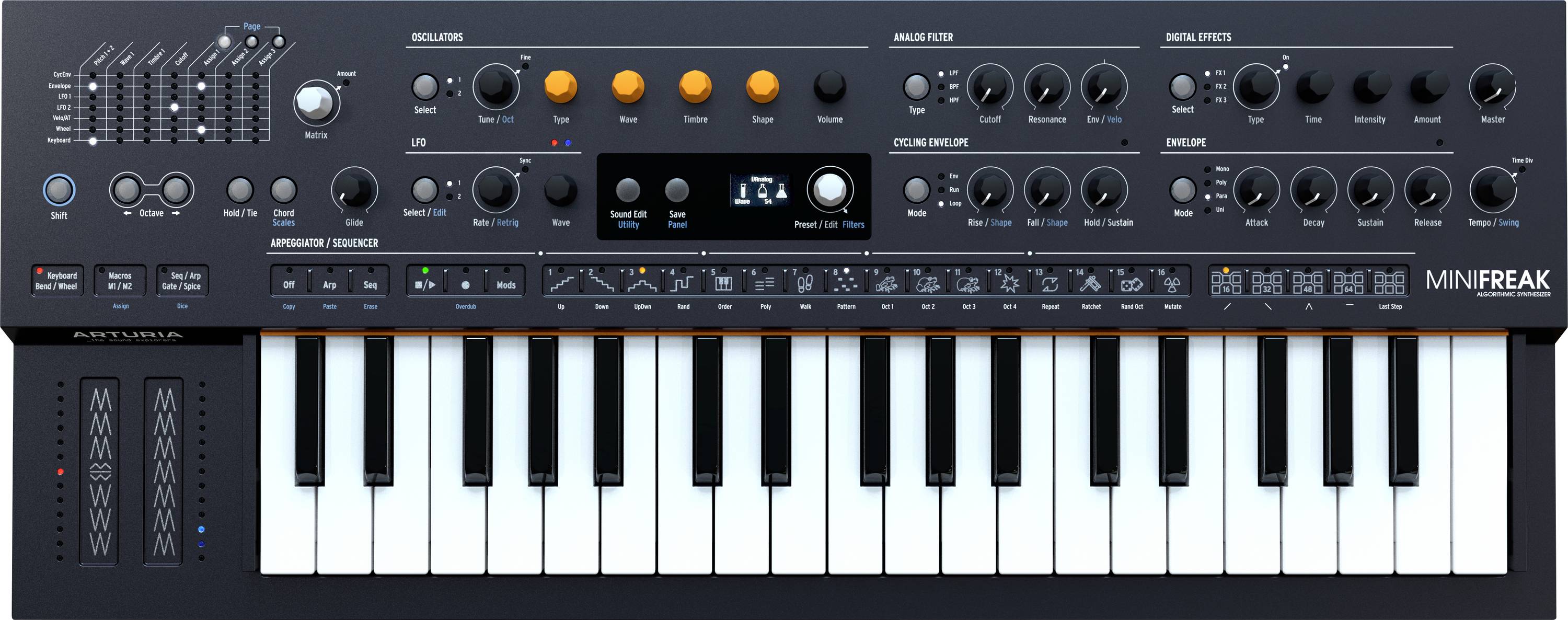

The MiniFreak combines two digital sound generators with over 20 modes, which can be used individually, stacked or used for mutual sound processing. Six digital voices meet polyphonic analog filters and combine crystal clear digital with warm analog resonance.
An advanced modulation matrix enables deep sound design with polyphonic ADSR envelope curves, customizable multi-segment LFOs, FM and ring modulation as well as random Spice & Dice functions.
With stereo outputs and three digital effect slots, including chorus, EQ and distortion, MiniFreak delivers a powerful, ready-to-mix stereo sound. The touch-sensitive 37-key claviature with aftertouch and flexible sequencer and arpeggiator functions provide for expressive performance.
The accompanying software MiniFreak V offers an identical virtual version of the synthesizer as a VST plug-in, so that sounds can be exchanged seamlessly between hardware and DAW.
This text is machine translated.
Features
Including external power supply (12 V DC, 1 A)
USB-cable and MiniFreak V software (download)
Description
The MiniFreak combines two digital sound generators with over 20 modes, which can be used individually, stacked or used for mutual sound processing. Six digital voices meet polyphonic analog filters and combine crystal clear digital with warm analog resonance.
An advanced modulation matrix enables deep sound design with polyphonic ADSR envelope curves, customizable multi-segment LFOs, FM and ring modulation as well as random Spice & Dice functions.
With stereo outputs and three digital effect slots, including chorus, EQ and distortion, MiniFreak delivers a powerful, ready-to-mix stereo sound. The touch-sensitive 37-key claviature with aftertouch and flexible sequencer and arpeggiator functions provide for expressive performance.
The accompanying software MiniFreak V offers an identical virtual version of the synthesizer as a VST plug-in, so that sounds can be exchanged seamlessly between hardware and DAW.
