AS Schwabe 46713 LED tape light reel EEC: E (A - G) + plug 230 V 15 m Natural white 1 pc(s)

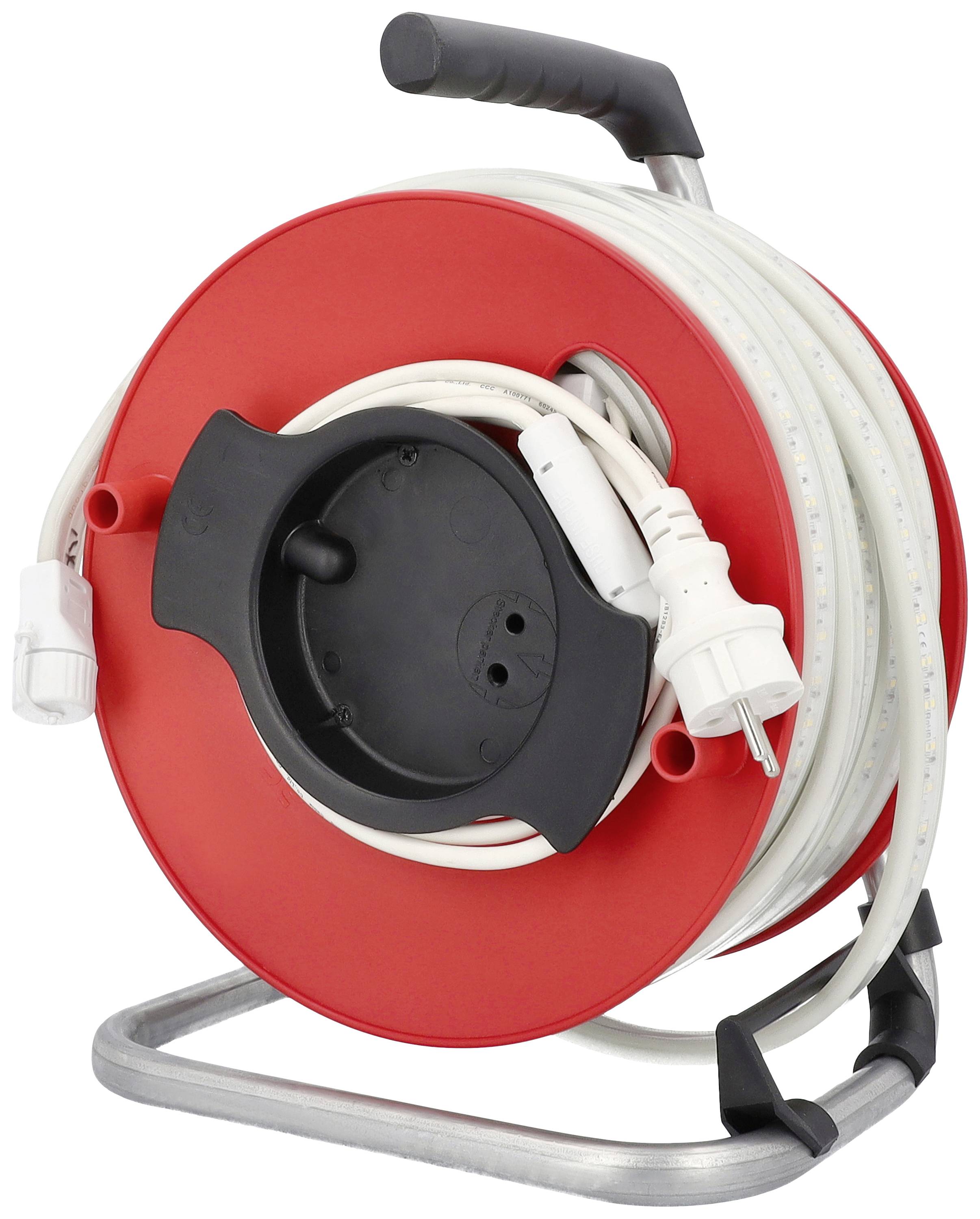

A red cable reel with a white cable wound around it and a black handle, mounted on a silver stand.

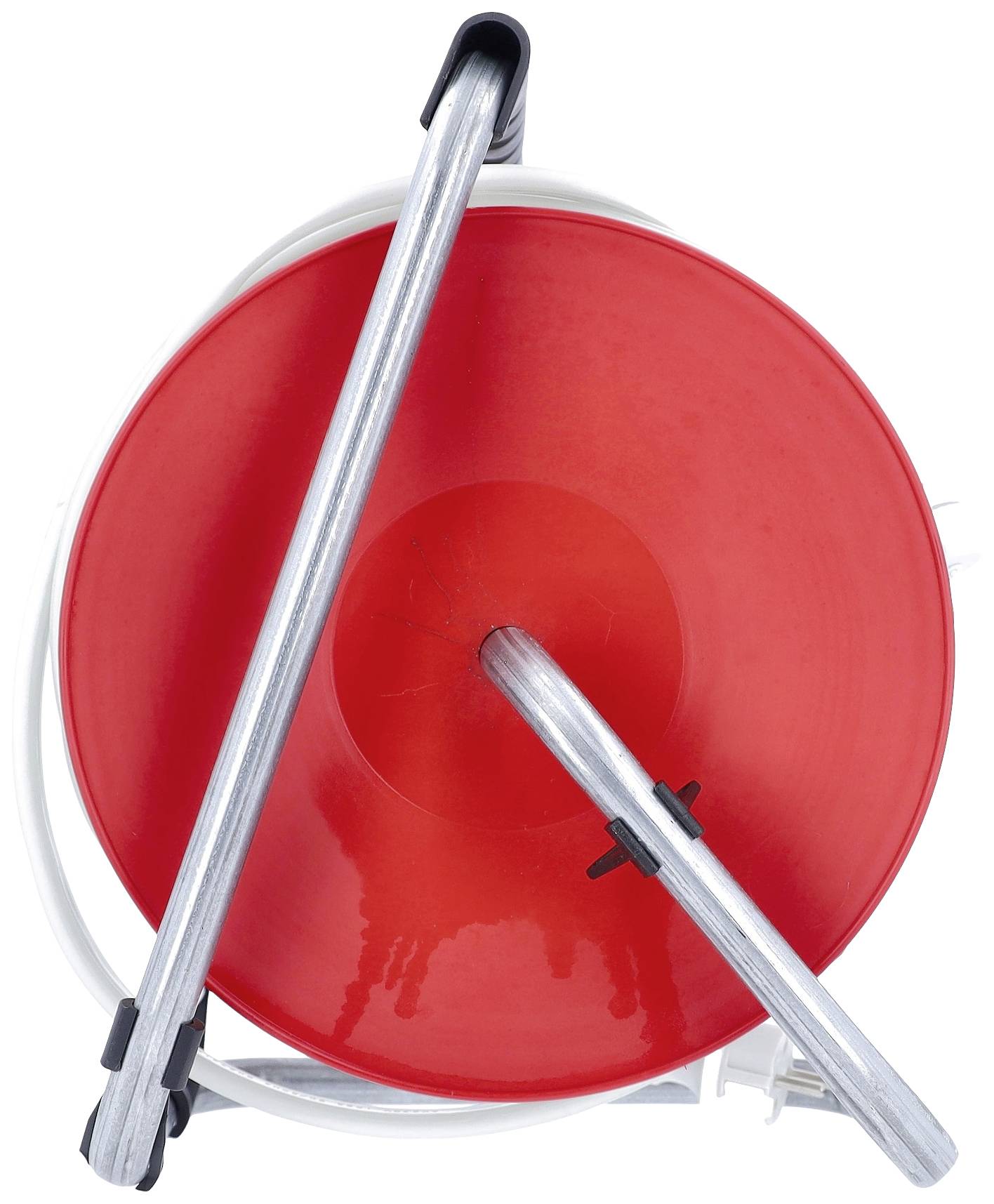

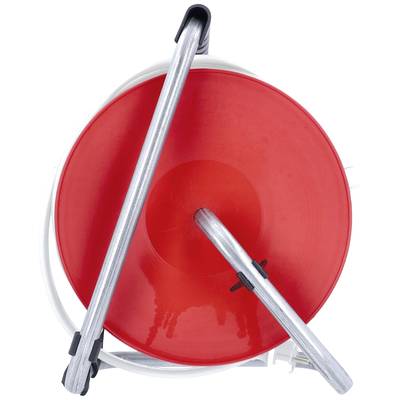

A red bucket with a lid and two metal handles, viewed from above.

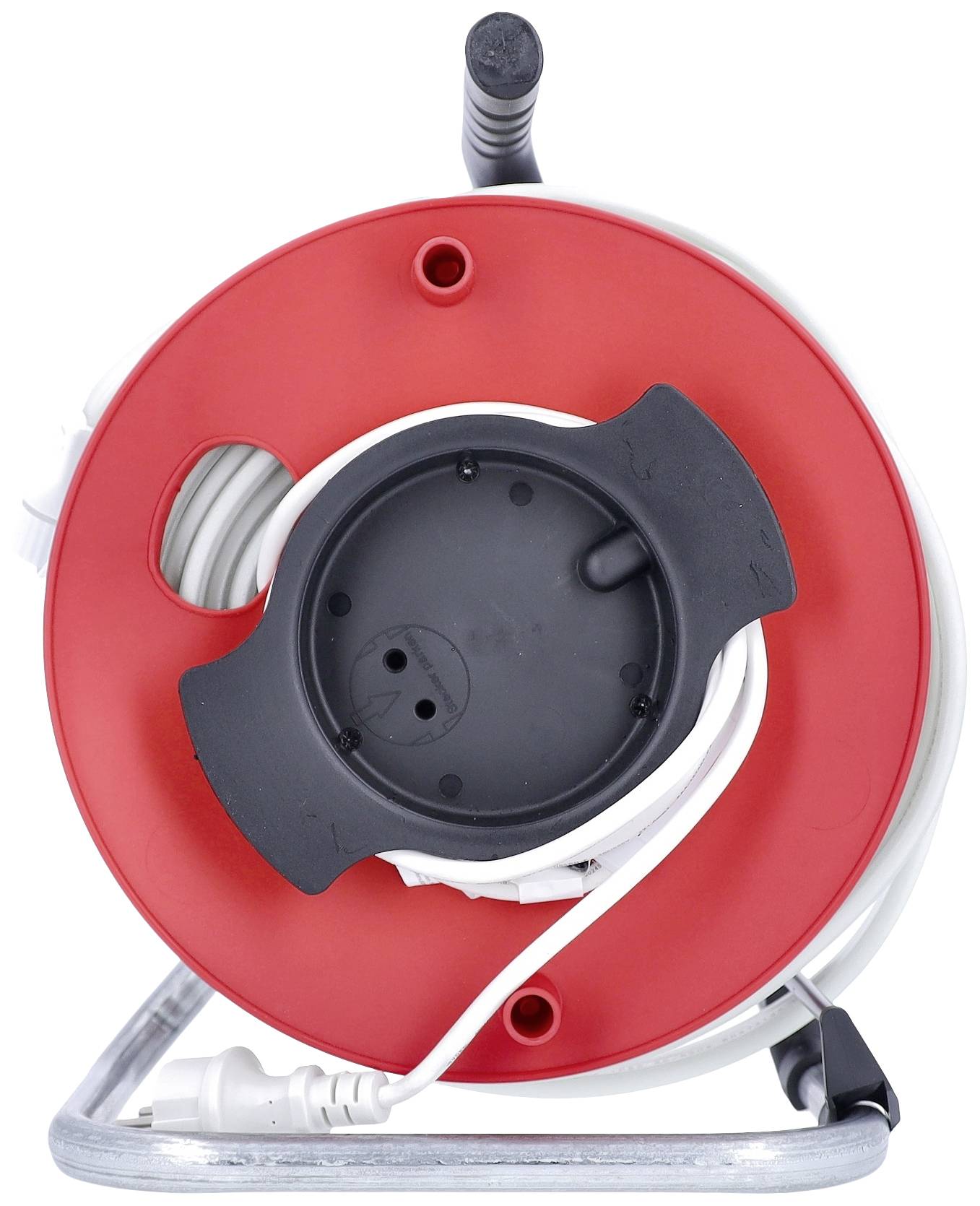

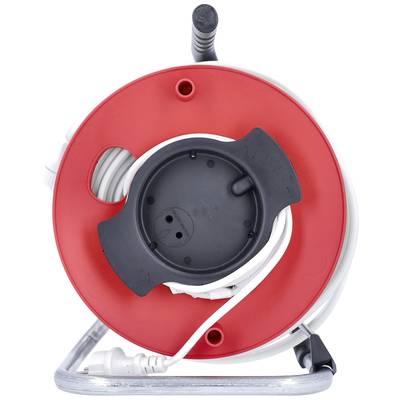

Red cable drum with black cover and coiled white cable, standing on a metal stand.

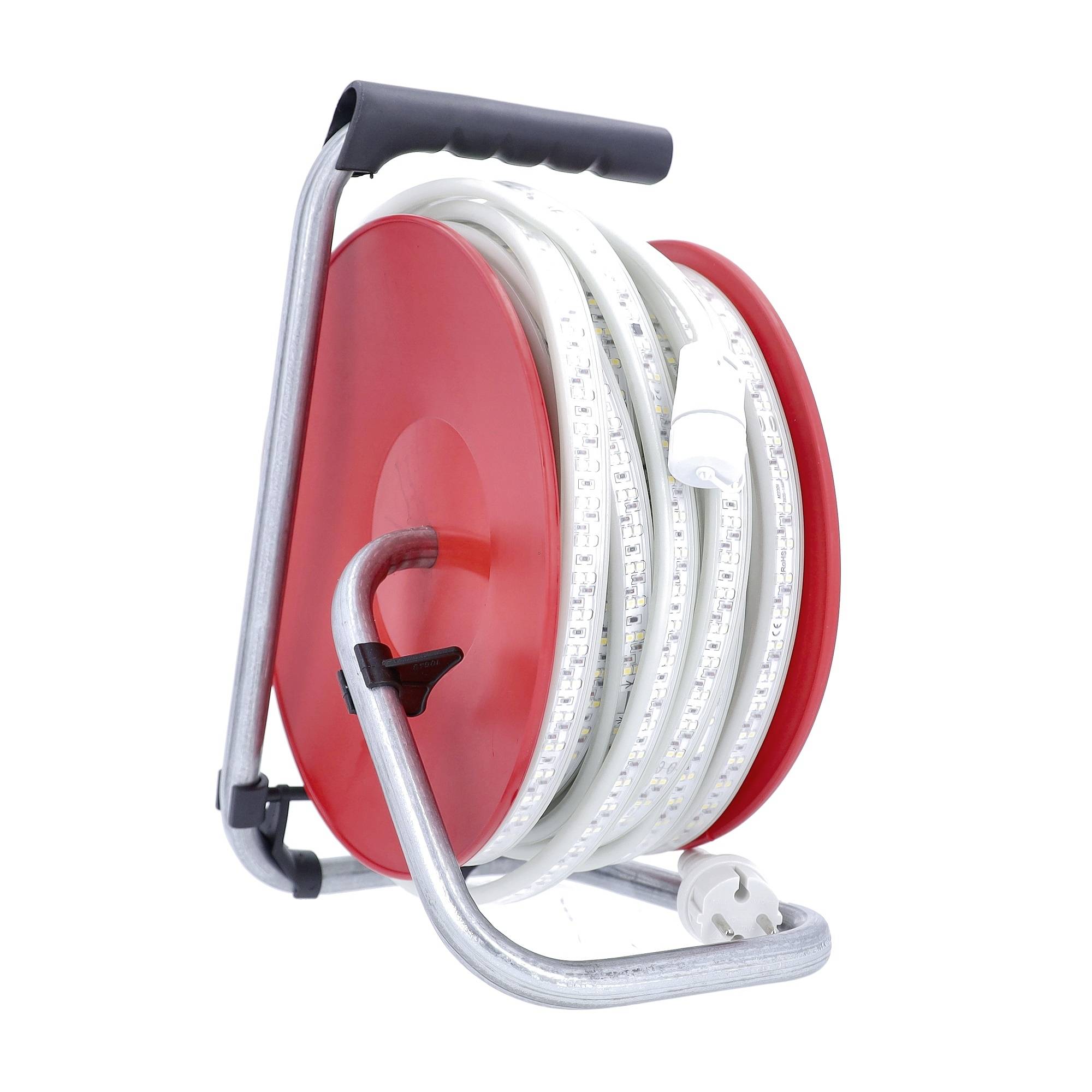

White cable drum on a grey metal stand with a black handle and red plastic rim. Suitable for safe storage and use of cables.

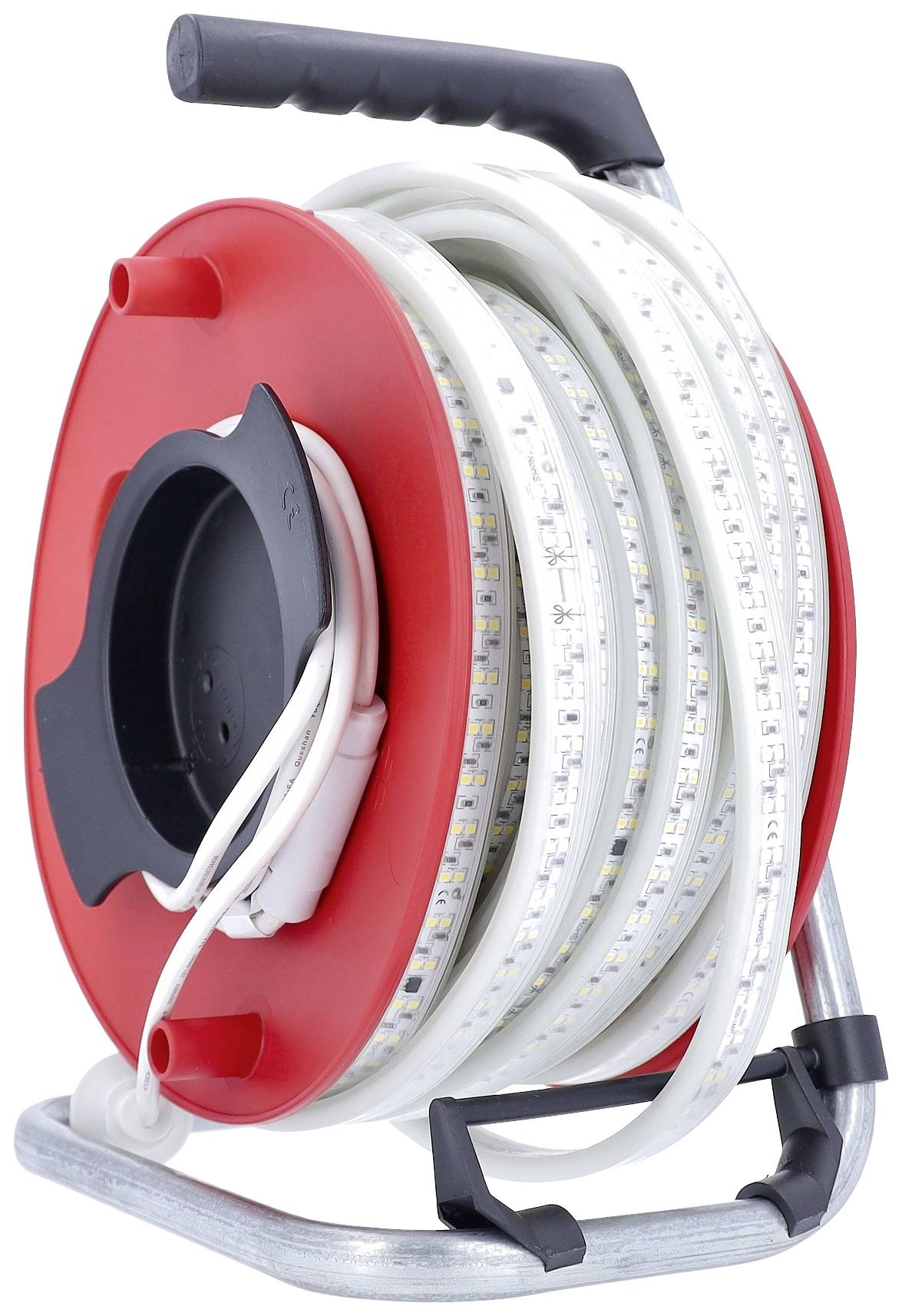

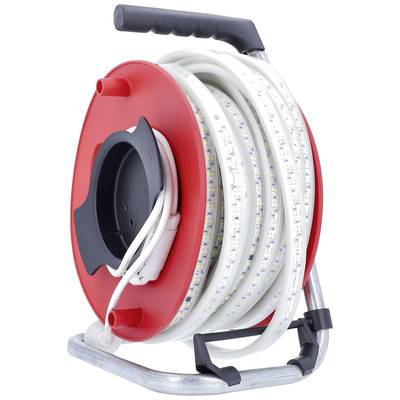

A red cable reel with a long white LED strip is wound on a metal stand.

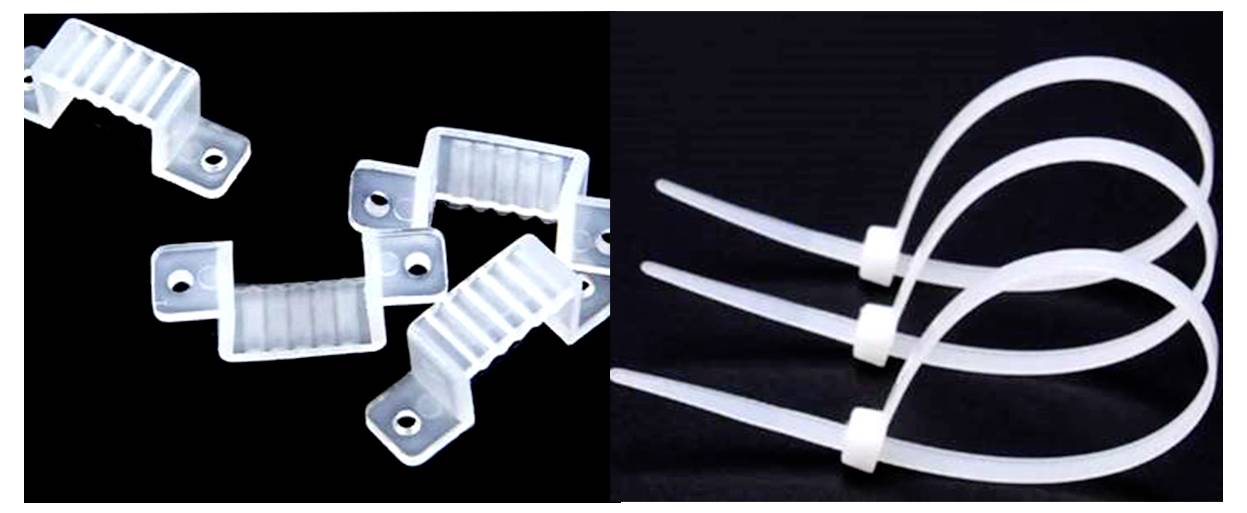

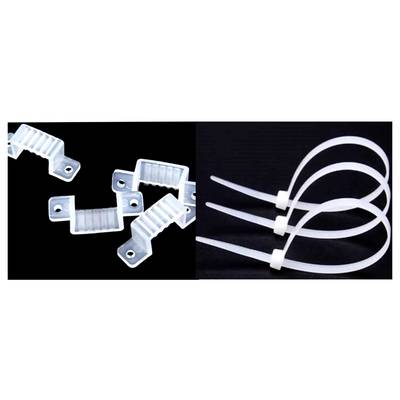

Plastic cable ties and seals are displayed against a black background, illustrating their design and use for securing items.

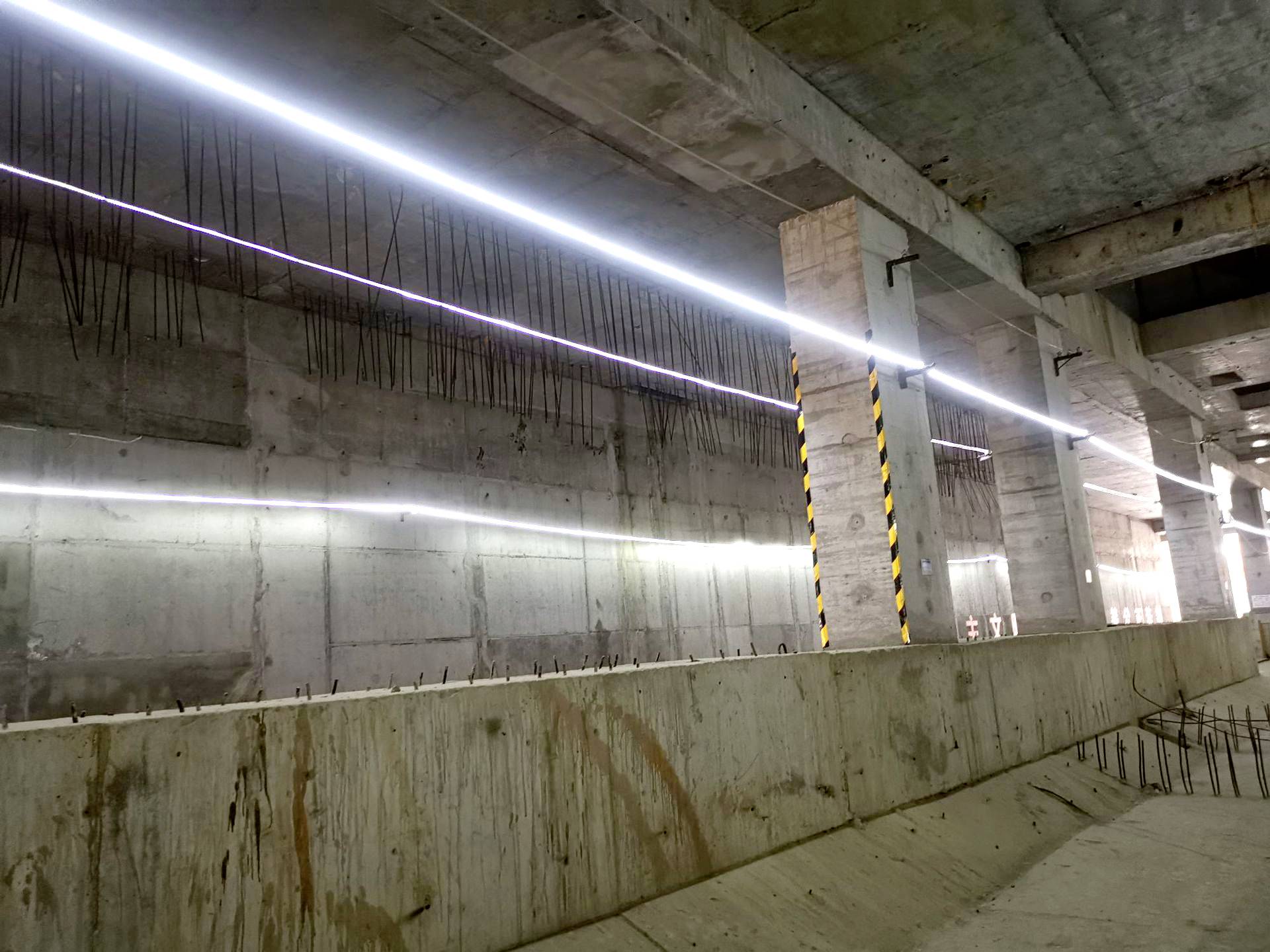

A grey, unfinished concrete structure with visible reinforcement bars and glowing lines. Construction site with columns and concrete walls.
A half-completed underground railway tunnel with an illuminated ceiling; a red fire extinguisher station on the wall, with a pipe running along the left side.
1/8
Product type
LED tape light reel
Connectors (LED strips)
+ plug
LED strip features
Extendable
Colour
Natural white
Total luminous flux
22500 lm
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
3 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (1 m = € 12.67)
€ 189.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 3 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

LED-light band drum 15m 180W 22.500lm IP65

  • Luminiscent approx. 10 min
  • Extendable up to 150 m total length
  • Flexible, can be bent up to radius 40 mm
  • Luminous flux: 1,500 lm/m (~ 125 lm/W)

Technical specifications

Product type

LED tape light reel

Connectors (LED strips)

+ plug

LED strip features

Extendable

Factory colour

White

Red

Colour

Natural white

Colour temperature type

4000 K

Total luminous flux

22500 lm

Use

Inside/outside

180 W

Radiation angle

120°

Luminous flux (Φ) per unit

1.500 lm

Operating voltage

230 V

Connection

#####Konturenstecker

Operating current

16 A

Dim

(L x W x H) 15 m x 18 mm x 8 mm

Power consumption per unit

12 W

Width

18 mm

Height

8 mm

Length

15 m

IP65

E (A - G)

RoHS-compliant

Yes

Protection class

IP65

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 3064991 AS Schwabe 46713 LED tape light reel EEC: E (A - G) + plug 230 V 15 m Natural white 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3064991 AS Schwabe 46713 LED tape light reel EEC: E (A - G) + plug 230 V 15 m Natural white 1 pc(s)

Description

LED light band 15m on drum Ø230mm With cable reel, galvanized base frame, shaped handle and locking brake.

This text is machine translated.

Features

  • With cable reel
  • Galvanized base frame with hose guidance
  • Formed handle and parking brake
  • Design of the LED-light band: Fluorescent
  • INPUT AC 230V 16A
  • Output 12 W/m
  • Luminous flux: 1,500 lm/m
  • Color Rendering Index CRI: >80
  • Beam angle 120 degrees.
  • LED life: 30,000 hours
  • Colour temperature: 4,000K
  • High quality LED
  • Light band dimensions (WxH) 18 x 8mm
  • Can be extended up to 150m total length
  • Protection system: IP65
