ASSMANN WSW V7236B1 V7236B1 Heat sink 24 K/W (L x W x H) 19.05 x 13.21 x 9.53 mm TO 220

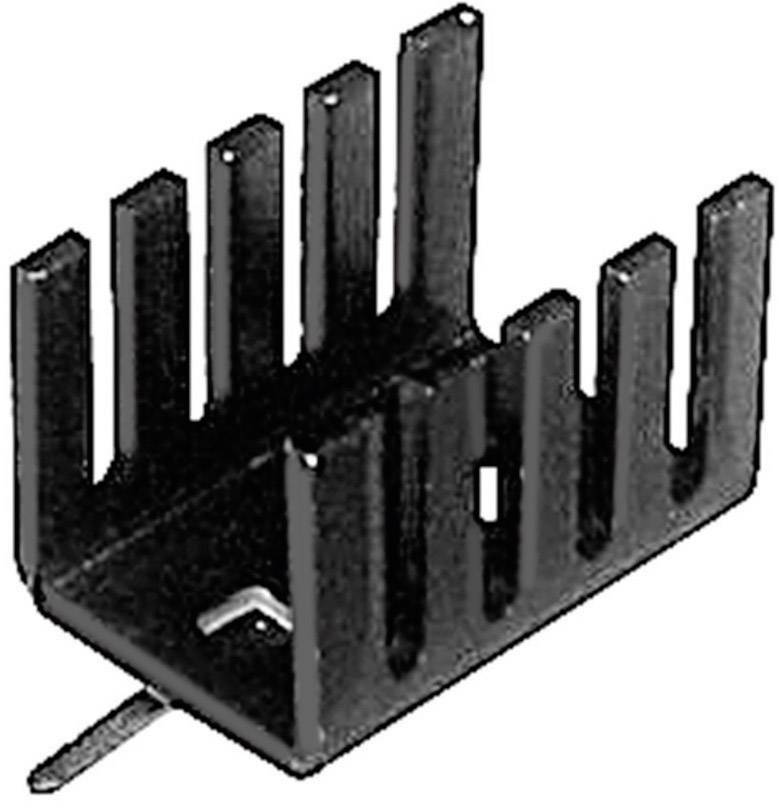

Black metal heatsink with multiple fins for heat dissipation, used in electronic devices to cool components.
Graph shows a jagged line with vertical and horizontal sections. Measurements: 1.65, 2.50 and 4.00 units indicated.
Technical drawing of a component with dimensions: Width 13.21 mm, Height 19.05 mm, Inner diameter 3.81 mm, Hole diameter 1.20 mm.
1/3
Image similar
Product type
Heat sink
Suitable for
TO 220
Thermal resistance R(th)
24 K/W
Material
Aluminium
Length
19.05 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
287 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 0.23 / piece)
€ 0.68
-66 %
€ 0.23
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Finger-shaped-heatsink for TO-220

Our service for you

Technical specifications

Product type

Heat sink

Type

V7236B1

Suitable for

TO 220

Factory colour

Black

Thermal resistance R(th)

24 K/W

Material

Aluminium

Material properties

anodised

Length

19.05 mm

Width

13.21 mm

Height

9.53 mm

Dim

(L x W x H) 19.05 x 13.21 x 9.53 mm

RoHS-compliant

Yes

Type

V7236B1
