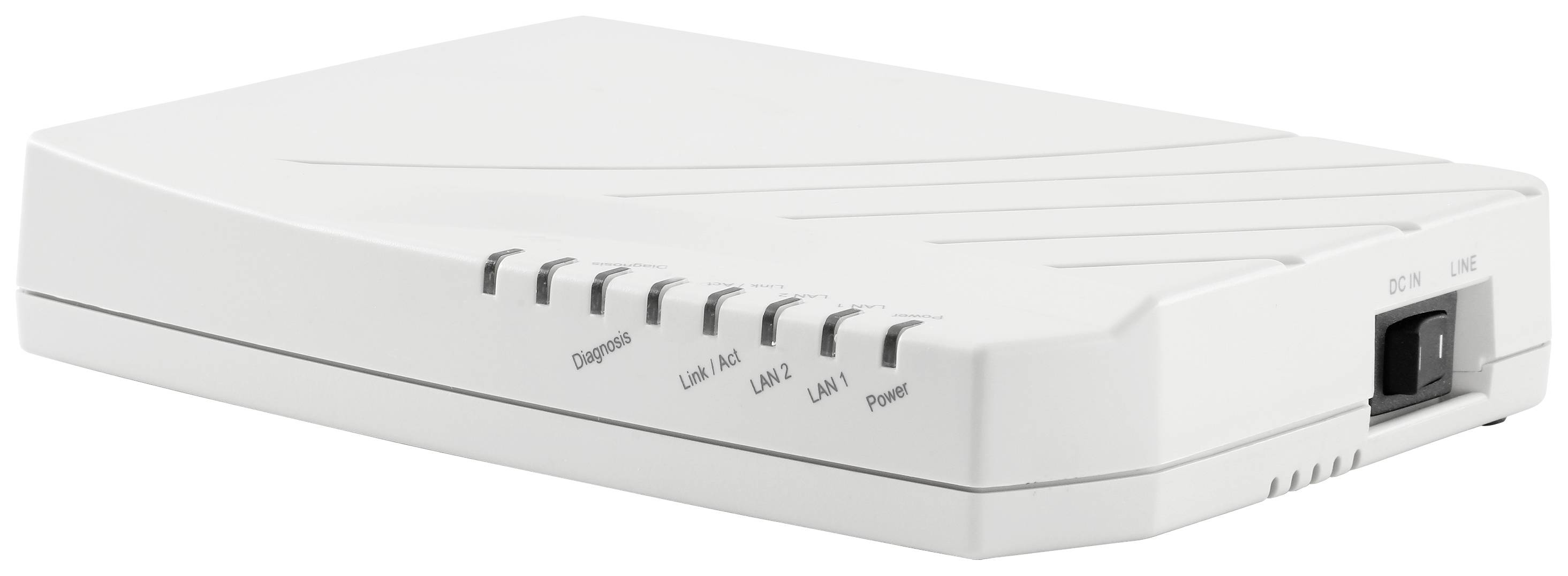

Axing Dual-Master 1800 Ethernet over Coax IP feeder

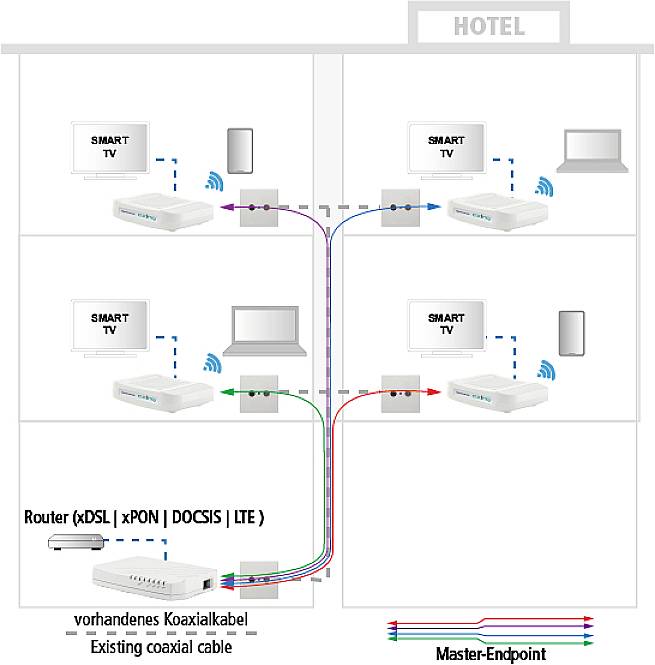

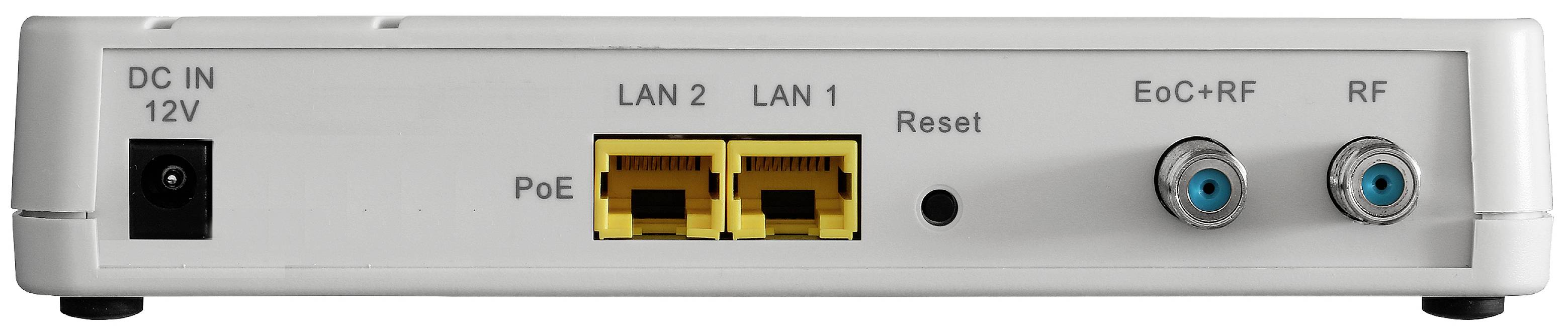

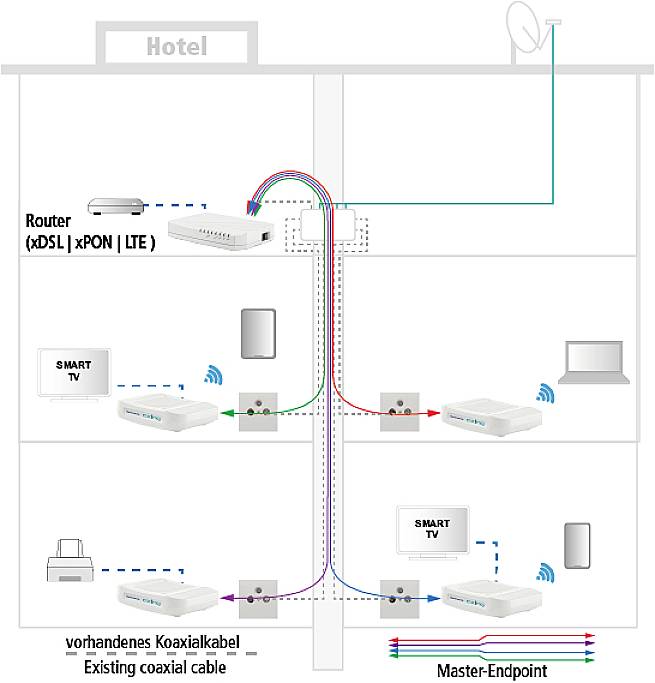

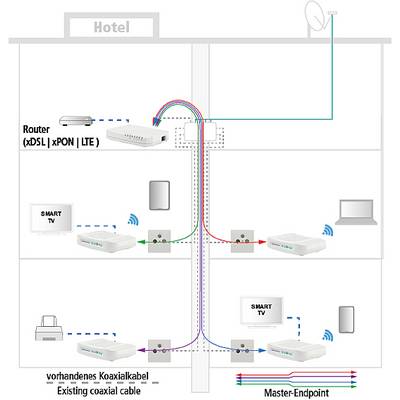

The EOC Master is connected to the Internet via Gigabit Ethernet. The EOC-devices develop by the help of the G.hn standard an encrypted Ethernet over coaxial network via the coaxial cable of the TV cabling (television and radio are of course transmitted). The EOC 30-xx uses the return channel range from 5 to 204 MHz and achieves a net data rate of 1800 Mbps (PHY) due to its bandwidth. This is possible with a SAT receiver system without any problems. In the CATV network, however, only if the forward travel frequency range starts at 258 MHz.Each endpoint has 2 Gigabit Ethernet ports. You can use it to connect common network devices such as PC, Smart TV, game console or streaming box, or even switches for even more connections. In addition, WLAN is available at the EOC 30-02 end-points in order to connect smartphones, tablets, laptops wirelessly.All settings (also those of the WLAN) are made on the Master. The highest possible security for the users is achieved by a security-oriented administration with encryption of the signals and access protection. The example shows hotel rooms with endpoints and connected smart TVs as well as Wi-Fi and below the Master with internet access.
