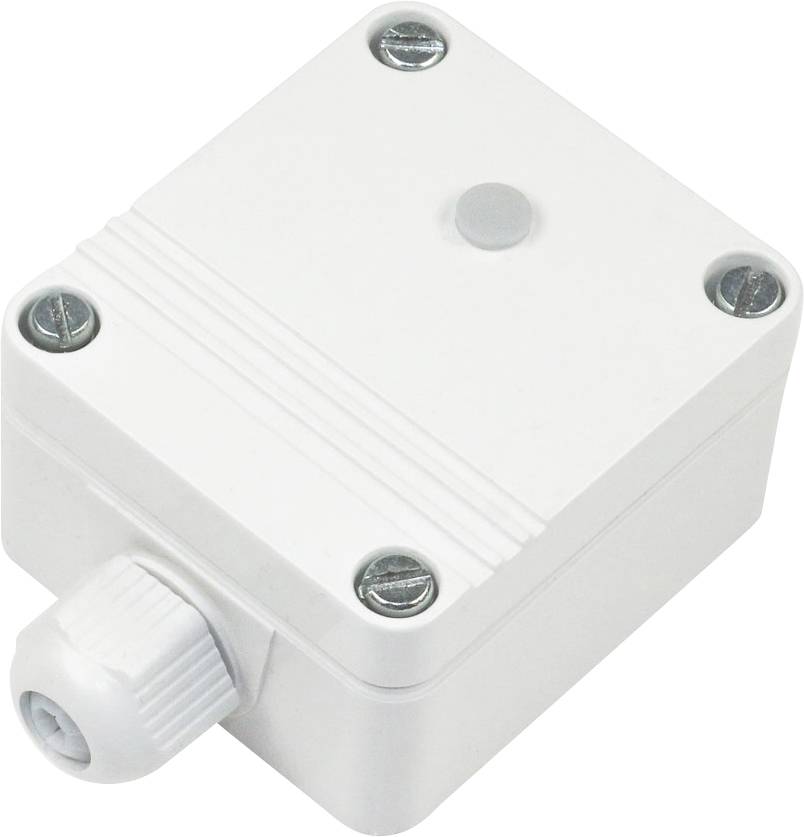

B + B Thermo-Technik 0555 3005 Photo sensor 12 V, 24 V 13 mA 1 pc(s) (L x W x H) 40.7 x 59.3 x 65.7 mm
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Technical specifications
- Measuring range: Selectable via DIP switch: 0...1,000 lux, 0...10,000 lux, 0...100,000 lux
- Accuracy < ±10% at vertical light
- Material: Polyamide PA6, 30% GK
- Output voltage: 0...10 V DC, linear scaling
- Spectral sensitivity: Corresponds to the sensitivity of the eye, with a Maximum at 550 nm
- EMC EMISSION DIN EN 61000-6-3 2022
- EMC IMMUNITY TO INTERFERENCE DIN EN 61000-6-1 2019
- Type
0555 3005
- Connector
M16
Cable gland
Clip
- Factory colour
White
- Nominal voltage
12 V
24 V
- Nominal current
13 mA
- Nominal current - rounded value
13 mA
- Min. temperature
-20 °C
- Max. temperature
75 °C
- Length
40.7 mm
- Width
59.3 mm
- Height
65.7 mm
- Dim

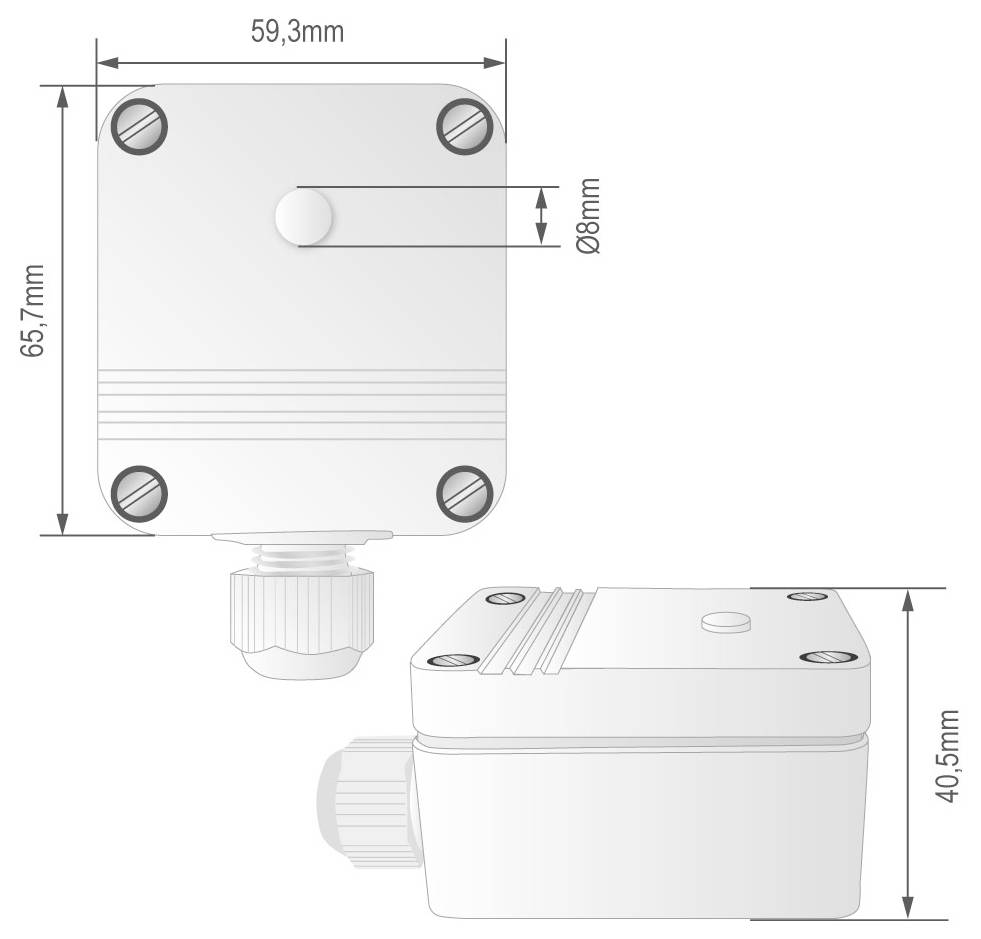

(L x W x H) 40.7 x 59.3 x 65.7 mm
IP65
- RoHS-compliant
Yes
- Product type
Photo sensor
Documents & Downloads
Datasheet
Datasheet 3736856 B + B Thermo-Technik 0555 3005 Photo sensor 12 V, 24 V 13 mA 1 pc(s) (L x W x H) 40.7 x 59.3 x 65.7 mm
User & Safety Instructions
User & Safety Instructions 3736856 B + B Thermo-Technik 0555 3005 Photo sensor 12 V, 24 V 13 mA 1 pc(s) (L x W x H) 40.7 x 59.3 x 65.7 mm
Description
Measuring the illuminance level is the basis for efficient building automation, productive agriculture and safe industrial processes. To better meet these requirements, the B+B brightness sensor with transmitter offers an all-in-one solution. Instead of having to define itself in advance on a measuring range, the new version enables the user full flexibility.
Three practical measuring ranges can be set directly on the device via DIP switches: 0 ... 1,000 lux, 0 ... 10,000 lux and 0 ... 100,000 Lux. Next to the 0 ... 10 V output voltage is additionally supplied with a 0 ... 5 V output voltage is available. In addition, the output voltage is invertable, WAS is especially suitable for controlling LED controllers or dimmers.
For control tasks a switching output is available, whose switching threshold can be set comfortably via potentiometer. As soon as the detected brightness exceeds the set value, the semiconductor relay switches. If the value falls below 10% again, the switching output will be disabled.
The housing with protection class IP65 reliably protects the electronics. The B+B brightness sensor with measuring transducer and switchable measurement range is ideally suited for use in various applications, indoor as well as outdoor.
Typical applications
-Building technology, lighting control
-Brightness sensor for rain-proof weather stations
-Brightness sensor for switching consumers in applications with solar modules
-Control of wiring systems
-Agricultural technology, brightness measurement in greenhouses
This text is machine translated.
