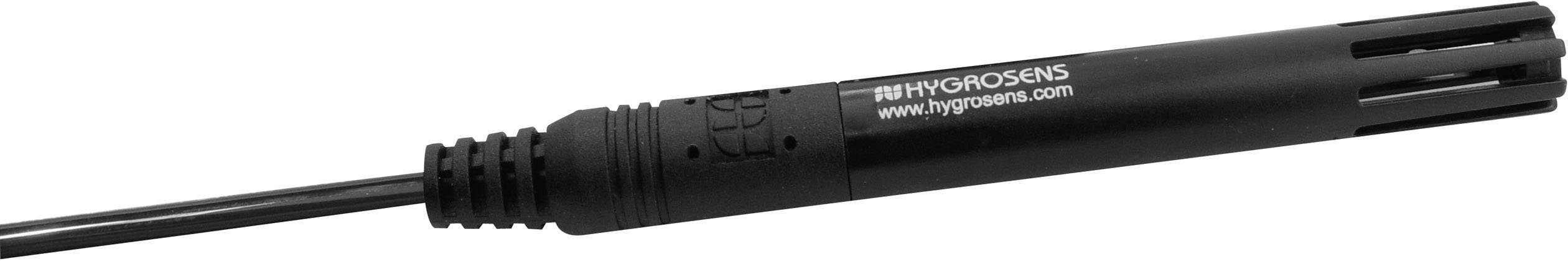

B + B Thermo-Technik Moisture probe 1 pc(s) HYTEMOD-I2C Reading range: 0 - 100 RH (Ø x L) 12 mm x 70 mm
EAN:
Part number:
Item no:
Product type
Moisture probe
Connector
RJ11
Max. operating voltage
12 V DC
Reading range (max.)
100 RH
Type
HYTEMOD-I2C
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
14-day return policy included
Technical specifications
- Product type
Moisture probe
- Type
HYTEMOD-I2C
- Connector
RJ11
- Min. operating voltage
6 V DC
- Max. operating voltage
12 V DC
- Operating voltage
6 - 12 V DC
- Max. current consumption
3 mA
- Reading range (min.)
0 RH
- Reading range (max.)
100 RH
- Reading range
0 - 100 RH
- Outputs
Analogue
I2C
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Content
1 pc(s)
- Length
70 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 70 mm
- RoHS-compliant
Yes
- Type
Humidity sensor with analogue output and I²C bus interface
- Current consumption
3 mA
- Type
HYTEMOD-I2C
- Connection
RJ11
- Temperature range
-20 - +60 °C
- Reading range
0 - 100 RH
- Operating voltage
6 - 12 V DC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 501994 B + B Thermo-Technik Moisture probe 1 pc(s) HYTEMOD-I2C Reading range: 0 - 100 RH (Ø x L) 12 mm x 70 mm
Description
Innovative humidity / temperature sensor with a digital I ² C bus interface and voltage output 0 - 5 V for connection to microcontrollers, PC or controller. via the additionally supplied USB cable No. 50 20 07, the module can be operated directly on the PC
Features
- 3 m connection cable
Hints
The module is also suitable for connection to the Conrad C-Control.
