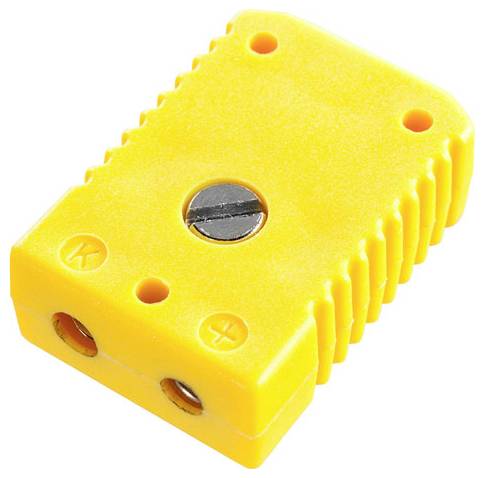

B + B Thermo-Technik Standard coupling type K, yellow | -50…+120 °C. Yellow Content: 1 pc(s)
Part number:
Item no:
Product type
Connector
Sensor type
K
Factory colour
Yellow
Dim
(L x W x H) 36 x 25.4 x 12.5 mm
Manufacturer part #
0220 0003
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
5
6% = € 0.46
€ 7.09
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
14-day return policy included
Highlights & Details
Standard coupling type K, yellow | -50…+120 °C.
Our service for you
Technical specifications
- Product type
Connector
- Factory colour
Yellow
- Dim
(L x W x H) 36 x 25.4 x 12.5 mm
- Sensor type
K
- Manufacturer part #
0220 0003
- Content
1 pc(s)
- Contact material
NiCr-Ni
- Dimensions
(LxBxH) 36 x 25,4 x 12,5 mm
- Width
25.4 mm
- Height
12.5 mm
- Length
36 mm
- RoHS-compliant
Yes
- Max. temperature
+120 °C
- Min. temperature
-50 °C
- Type
0220 0003
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3736850 B + B Thermo-Technik Standard coupling type K, yellow | -50…+120 °C. Yellow Content: 1 pc(s)
Description
Thermocouple connectors are particularly used where temperatures are to be measured and tested using thermocouples, whereby an important criterion is the portability of the meter or sensor. Due to the fact that all contacts are made of thermocouple material, it is possible to avoid possible measurement errors due to fluctuations in the ambient temperature. Therefore, there are no new thermal voltages at the connection points between the sensor, extension leads and the measuring device, which can falsify the measured value.
