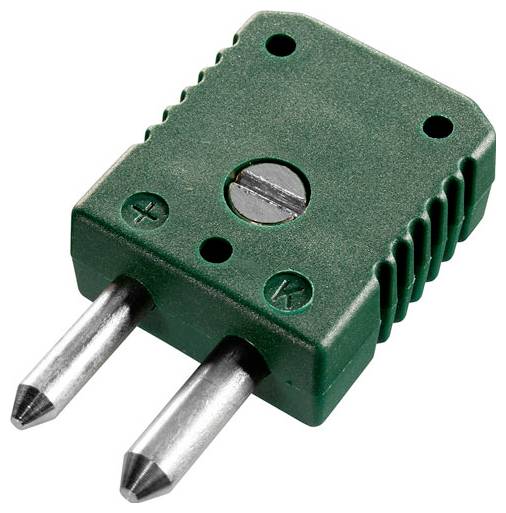

B + B Thermo-Technik Standard plug type K, green | -50…+120 °C Green Content: 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Technical specifications
- Content
1 pc(s)
- Dim
(L x W x H) 45 x 25.4 x 12.5 mm
- Factory colour
Green
- Height
12.5 mm
- Length
45 mm
- Width
25.4 mm
- Dimensions
(LxBxH) 30 x 25,4 x 12,5 mm
- Industrial packaging
Yes
- Manufacturer part #
0220 0034
- Type
0220 0034
- Contact material
NiCr-Ni
- RoHS-compliant
Yes
- Max. temperature
120 °C
- Min. temperature
-50 °C
- Product type
Plug
Documents & Downloads
Datasheet
Datasheet 3736848 B + B Thermo-Technik Standard plug type K, green | -50…+120 °C Green Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3736848 B + B Thermo-Technik Standard plug type K, green | -50…+120 °C Green Content: 1 pc(s)
Description
Thermocouple connectors are particularly used where temperatures are to be measured and tested using thermocouples, whereby an important criterion is the portability of the meter or sensor. Due to the fact that all contacts are made of thermocouple material, it is possible to avoid possible measurement errors due to fluctuations in the ambient temperature. Therefore, there are no new thermal voltages at the connection points between the sensor, extension leads and the measuring device, which can falsify the measured value.
