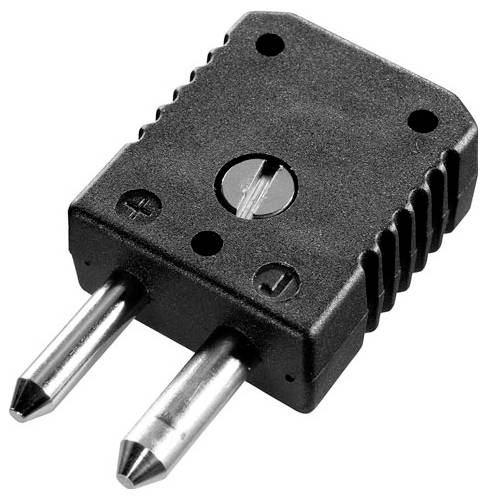

B + B Thermo-Technik Standard plug type J, black | -50…+120 °C Black Content: 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
Technical specifications
- Content
1 pc(s)
- Dim
(L x W x H) 30 x 25.4 x 12.5 mm
- Factory colour
Black
- Height
12.5 mm
- Length
30 mm
- Width
25.4 mm
- Dimensions
(LxBxH) 30 x 25,4 x 12,5 mm
- Industrial packaging
Yes
- Sensor type
J
- Manufacturer part #
0220 0009
- Type
0220 0009
- Contact material
NiCr-Ni
- RoHS-compliant
Yes
- Max. temperature
120 °C
- Min. temperature
-50 °C
- Product type
Plug
Documents & Downloads
Datasheet
Datasheet 3736849 B + B Thermo-Technik Standard plug type J, black | -50…+120 °C Black Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3736849 B + B Thermo-Technik Standard plug type J, black | -50…+120 °C Black Content: 1 pc(s)
Description
Thermocouple connectors are particularly used where temperatures are to be measured and tested using thermocouples, whereby an important criterion is the portability of the meter or sensor. Due to the fact that all contacts are made of thermocouple material, it is possible to avoid possible measurement errors due to fluctuations in the ambient temperature. Therefore, there are no new thermal voltages at the connection points between the sensor, extension leads and the measuring device, which can falsify the measured value.
