Barthelme 51542228 LED strip 24 V 5000 mm Warm white 5 m

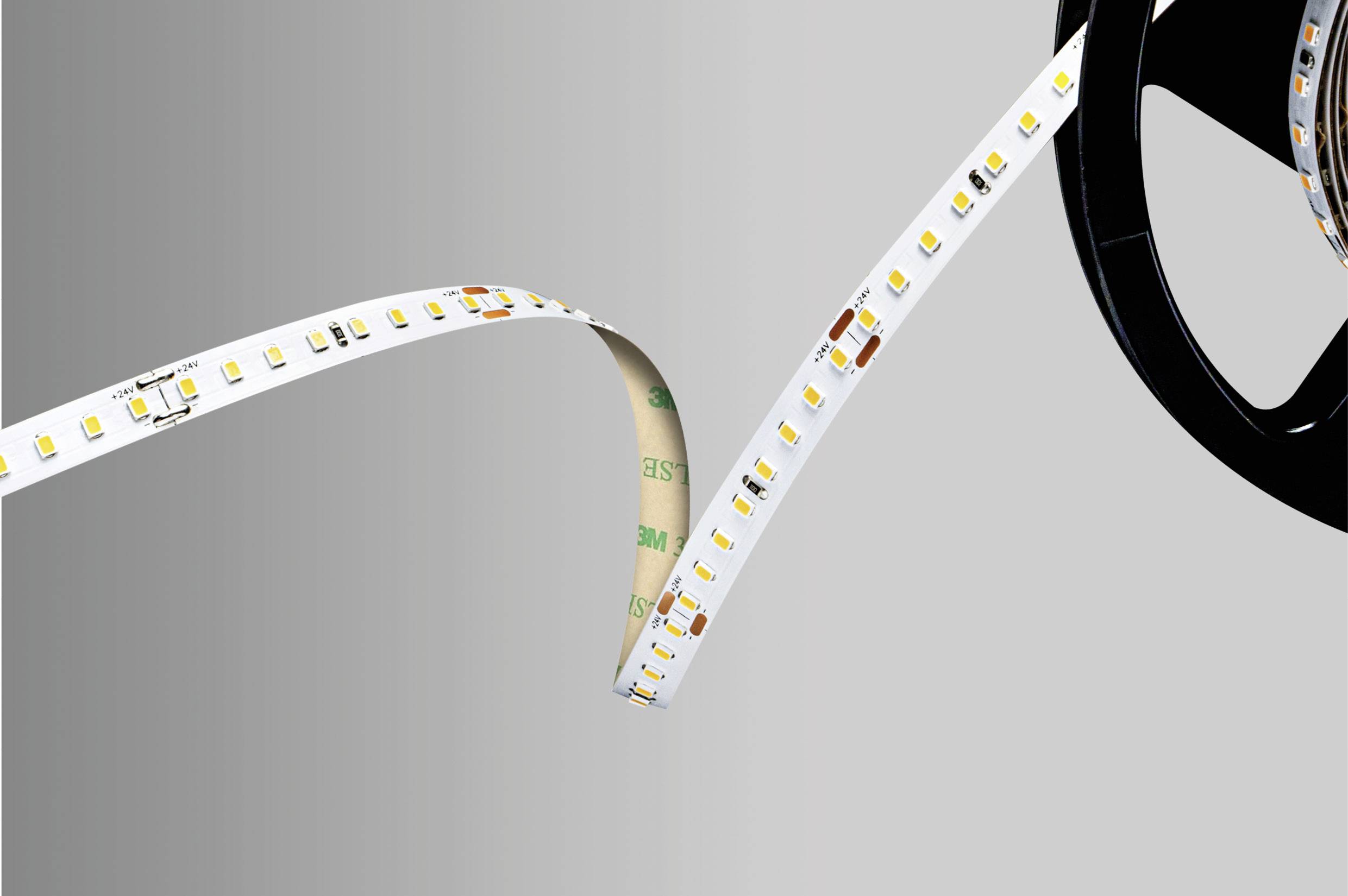

LED strip on a reel, partially unrolled. The strip shows many small, rectangular LEDs and some copper connections.
Product type
LED strip
LED strip features
Can be shortened
Self-adhesive
Colour
Warm white
Total luminous flux
10610 lm
Use
Inside
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (1 m = € 13.20)
€ 65.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

LED strips BASIC 128, roll 500 cm, 24 V DC, typ. 96 W, type. 2700 K

  • Light color warm white 2700K
  • Luminous flux per meter: 2112 lm/m
  • Efficiency 110 lm/W
  • Power per meter: 19.2 W/m

Technical specifications

Product type

LED strip

LED strip features

Can be shortened

Self-adhesive

Colour

Warm white

Colour temperature type

2700 K

Total luminous flux

10610 lm

Use

Inside

96 W

Colour rendering index

90 Ra

Radiation angle

120°

Luminous flux (Φ) per unit

132.6 lm

Operating voltage

24 V

Operating current

4 A

Dim

(L x W x H) 5000 x 10 x 1.4 mm

Operational current per unit

50 mA

Power consumption

96 W

Power consumption per unit

1.2 W

LEDs

640

LED number per unit

8

Width

10 mm

Height

1.4 mm

Length

5000 mm

Unit length

62.5 mm

IP00

n.rel.

16.6 lm

RoHS-compliant

Yes

Documents & Downloads

Datasheet

Datasheet 2979712 Barthelme 51542228 LED strip 24 V 5000 mm Warm white 5 m

User & Safety Instructions

User & Safety Instructions 2979712 Barthelme 51542228 LED strip 24 V 5000 mm Warm white 5 m

Description

High light quality and natural representation of colors by high color reproduction index CRI of greater than 90. Suitable for applications with Hohem brightness requirements.

This text is machine translated.

Features

  • Can be split using scissors at the markings
  • With high-quality 3M double-sided adhesive tape on the rear for easy installation
  • For profile use, see data sheet

Hints

Safety relevant component - Only by skilled workers
