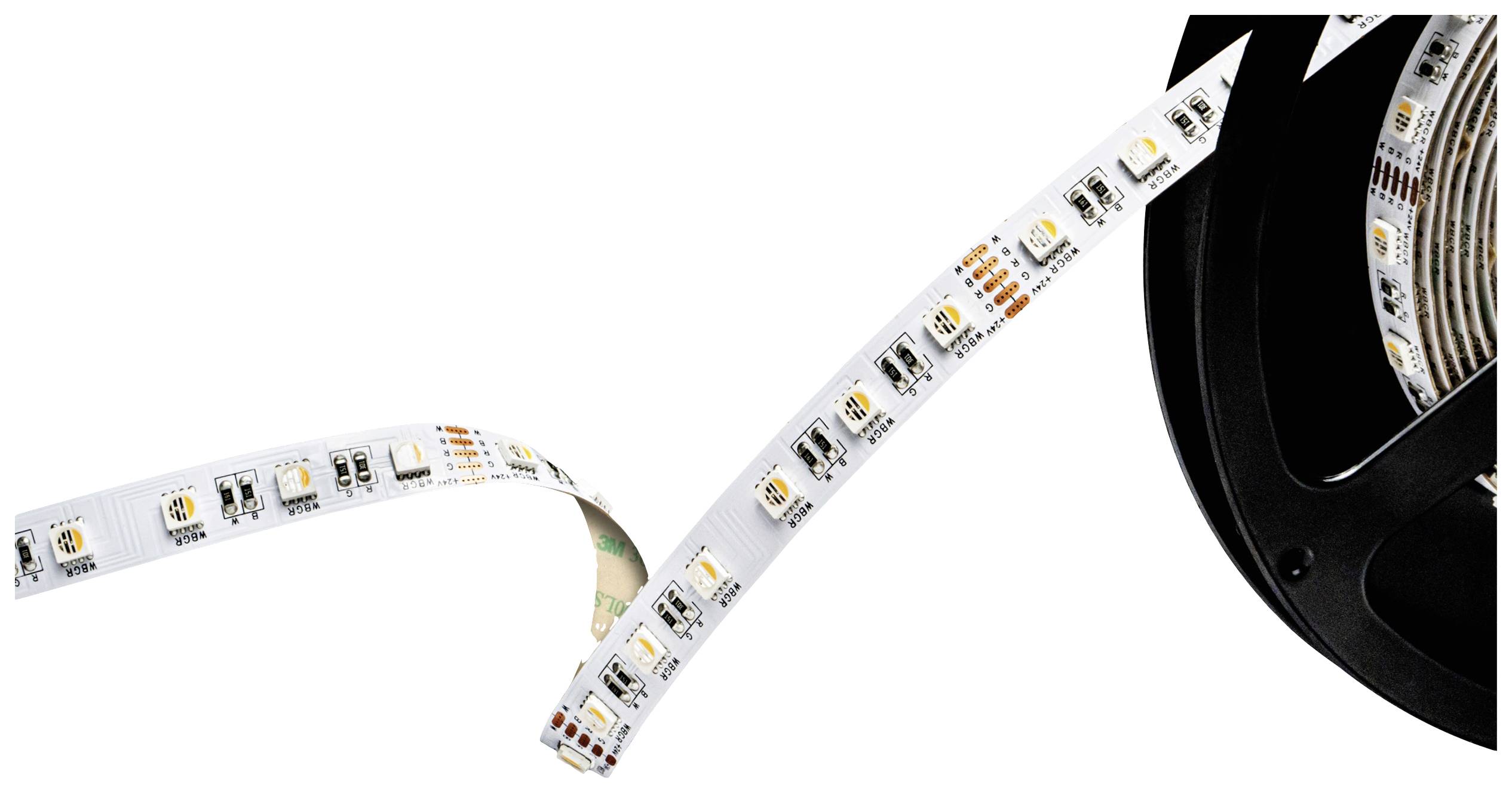

Barthelme 51542428 LED strip 24 V 5000 mm RGBW 5 m
EAN:
Part number:
Item no:
Product type
LED strip
LED strip features
Can be shortened
Self-adhesive
Colour
RGBW
Total luminous flux
5600 lm
Use
Inside
Datasheet (PDF)
Number
Total (1 m = € 21.85)
€ 109.24
plus VAT.
Highlights & Details
LED strip BASIC RGBW, roll 500 cm, 24 V DC, typ. 96 W, RGB+typ. 2700 K
- Light color warm white 2700K
- Luminous flux per meter: 1120 lm/m
- Efficiency 58 lm/W
- Power per meter: 19.2 W/m
Technical specifications
- Product type
LED strip
- LED strip features
Can be shortened
Self-adhesive
- Colour
RGBW
- Colour temperature type
2700 K
- Total luminous flux
5600 lm
- Use
Inside
19.2 W/m
- Radiation angle
120°
- Luminous flux (Φ) per unit
112 lm
- Operating voltage
24 V
- Operating current
4 A
- Dim
(L x W x H) 5000 x 12 x 2 mm
- Operational current per unit
80 mA
- Power consumption
96 W
- Power consumption per unit
1.92 W
- LEDs
300
- LED number per unit
6
- Width
12 mm
- Height
2 mm
- Length
5000 mm
- Unit length
100 mm
IP00
n.rel.
- No. of bulbs
1
Yes
18.7 lm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2979721 Barthelme 51542428 LED strip 24 V 5000 mm RGBW 5 m
User & Safety Instructions
User & Safety Instructions 2979721 Barthelme 51542428 LED strip 24 V 5000 mm RGBW 5 m
Description
Flexible LED strips for simple applications. Ideal for indirect interior lighting in the living area. Individual colors can be set through the simple control via com+
This text is machine translated.
This text is machine translated.
Features
- Can be split using scissors at the markings
- With high-quality 3M double-sided adhesive tape on the rear for easy installation
- For profile use, see data sheet
Hints
Safety relevant component - Only by skilled workers
