Barthelme 51543131 LED strip + solder lugs 24 V DC 5000 mm RGB 5 m

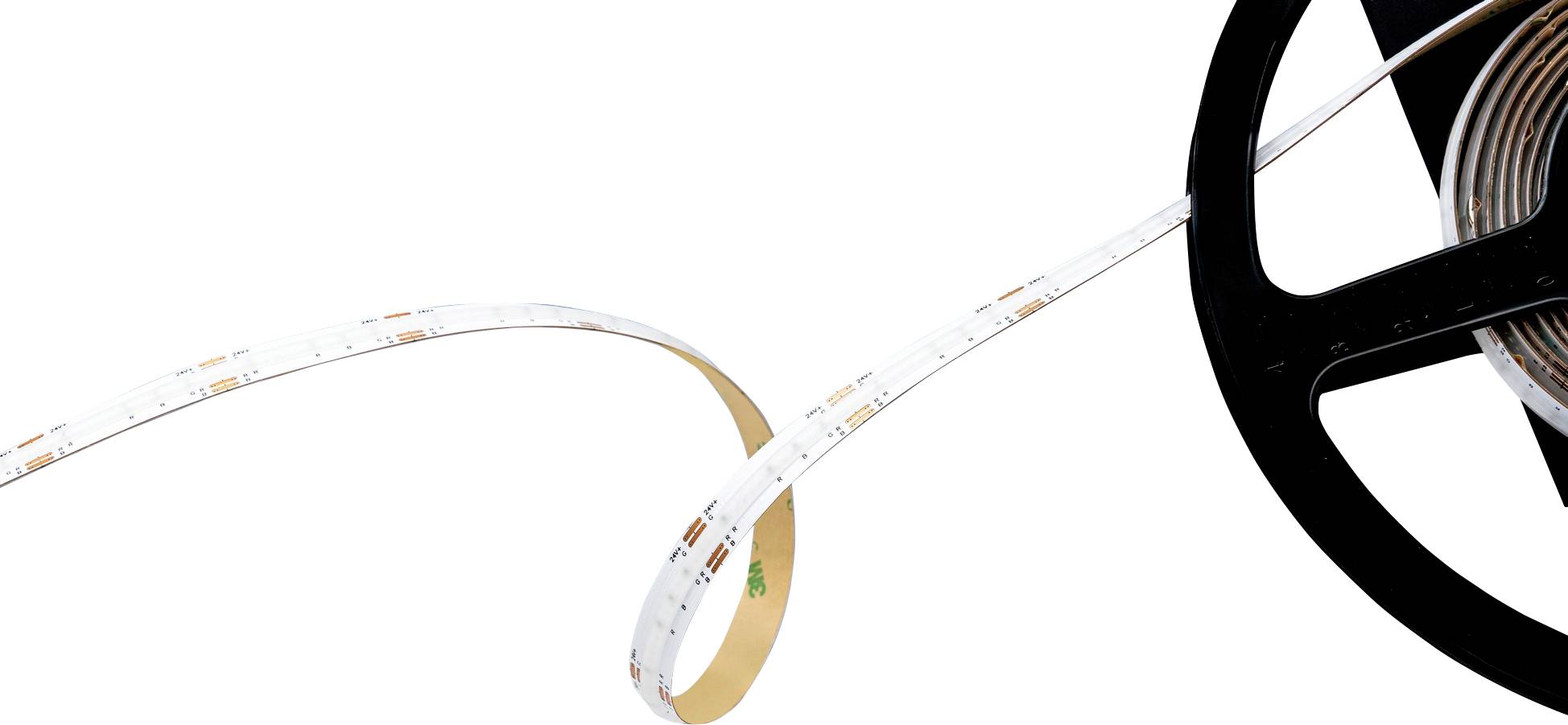

A roll of flexible LED strip light partially unwound, showing white segmented design on a black spool against a white background.

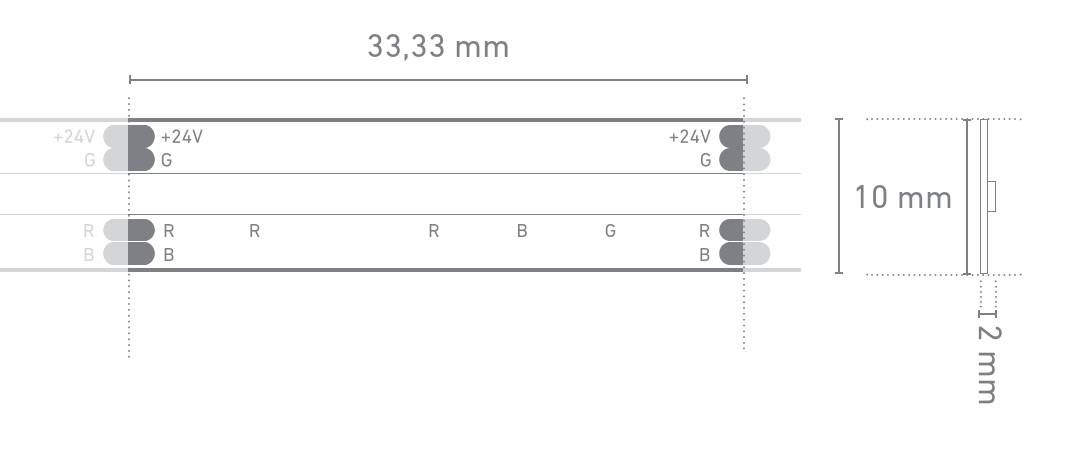

Diagram of an LED strip showing dimensions. Length is 33.33 mm, height is 10 mm, and width is 12 mm. Labels: '+24V', 'G', 'R', 'B'.
1/2
Product type
LED strip
Connectors (LED strips)
+ solder lugs
LED strip features
Flexible
Colour
RGB
Total luminous flux
2750 lm
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
8 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (1 m = € 19.60)
€ 97.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 8 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

LED STRIP BASIC CSP 540 RGB, roll 500 cm, 24 V DC, typ. 15 W/m, type. 550 lm/m

  • Flexible CSP (chip-scale package) LED strip in an advanced package
  • LED technology
  • Setting option for individual colors - thus Ideal for
  • Ambient lighting in the living area
  • Very well suited for installation in flat profiles
  • High quality 3M double-sided adhesive tape on the back for simple
  • Installation
  • The very short pitch of only 33 mm offers great flexibility
  • In Light Construction
  • Can be dimmed continuously without loss of efficiency
  • Extremely high chip density: 540 LED chips per meter
  • The angle of radiation of the CSP LED strip is 150°
  • Service life: L70 > 50,000 h in Ta < 25 ° C.
  • This text is machine translated.

Our service for you

Technical specifications

  • Number of LEDs per cut 18
  • Number of LEDs per meter 540
  • Number of Cuts 150
  • Length per cut: 33 mm
  • Protection class IP 00
  • Bending radius: ≥ 30 mm
  • Long connection cable, 150 mm
Product type

LED strip

Connectors (LED strips)

+ solder lugs

LED strip features

Flexible

Colour

RGB

Total luminous flux

2750 lm

Use

Inside

75 W

Radiation angle

150°

Operating voltage

24 V DC

Connection

Soldering

Operating current

3.125 A

Dim

(L x W x H) 5000 x 10 x 2 mm

Power consumption

75 W

Power consumption per unit

15 W

LED number per unit

540

Width

10 mm

Height

2 mm

Length

5000 mm

Unit length

100 cm

IP00

Min. temperature

-25 °C

Max. temperature

45 °C

n.rel.

Yes

RoHS-compliant

Yes

Protection class

IP00

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3462357 Barthelme 51543131 LED strip + solder lugs 24 V DC 5000 mm RGB 5 m

Information

Information 3462357 Barthelme 51543131 LED strip + solder lugs 24 V DC 5000 mm RGB 5 m

Description

Scope of delivery

  • 1x LED strip
