Bauser 3800/008.3.1.0.1.2-003 Battery Monitor (22 x 33mm)
EAN:
Part number:
Item no:
Number
Total (€ 30.99 / piece)
€ 30.99
incl. VAT
Only 5 Piece(s) available
Highlights & Details
Bauser 3800/008.3.1.0.1.2-003 Battery Monitor (22 x 33mm)
- Suitable for starter batteries
- Deep-discharge protection for batteries
Technical specifications
- Product type
Digital display
- Reading type
Battery monitor
- Type
3800/008.3.1.0.1.2-003
- Display technology
LED
IP65 (on front)/IP40 (on back)
- Recess width
22 mm
- Display (counts)
3
- Recess height
33 mm
- Operating voltage
18 V DC
30 V DC
- Dim
(W x H x D) 36 x 24 x 58 mm
- Max. operating voltage
30 V DC
- Min. operating voltage
18 V DC
- Width
36 mm
- Height
24 mm
- Interfaces
none
- Depth
58 mm
- Connections
4 flat plugs (DIN 46244) 6.3 x 0.8 mm
- Digits
3
- Display (details)
LED
- Assembly dimensions
22 x 33 mm
- Power supply (details)
18 - 30 V DC
- Current consumption
< 45 mA
- Display range
green/yellow/red
- Reading range
green: ≥ 24 V, yellow: < 24 V ≥ 22 V, red: < 22 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 123011 Bauser 3800/008.3.1.0.1.2-003 Battery Monitor (22 x 33mm)
Information
Information 123011 Bauser 3800/008.3.1.0.1.2-003 Battery Monitor (22 x 33mm)
Description

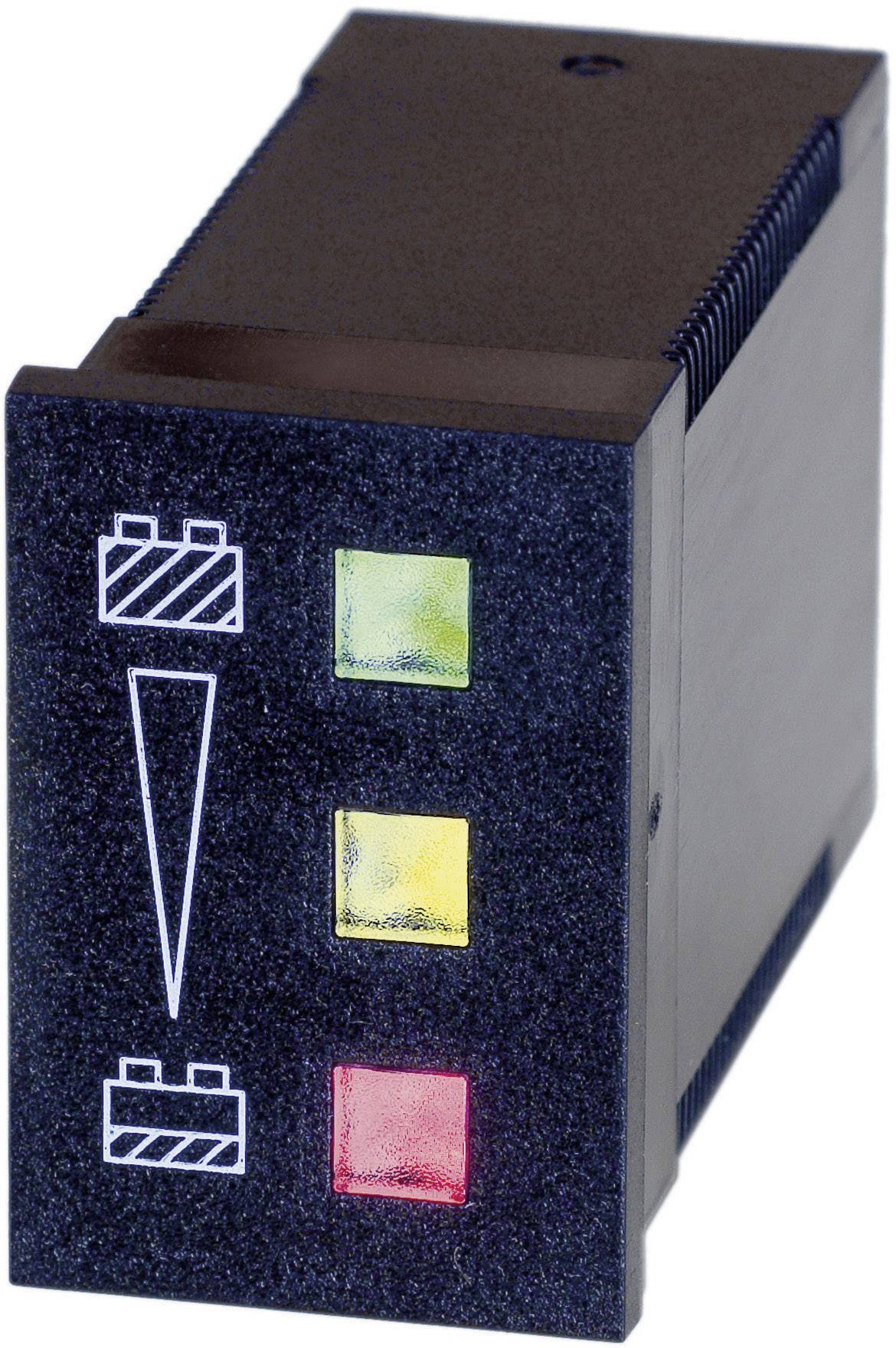

The Bauser 3800/008.3.1.0.1.2-003 Battery Monitor (22 x 33mm) is used to display the battery charge in 3 steps with the help of 3 LEDs (green, yellow, red). When falling below the first threshold 'green / yellow' the yellow LED lights up. Upon reaching the second threshold 'yellow / red' the red LED will light up and the relay contact opens. To reset the device, it must be switched off and on again.
Features
- Relay output:
- Integrated time delay
- Restart interlock
