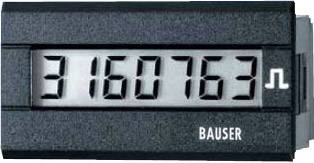

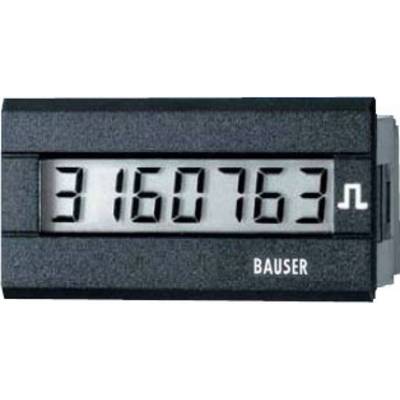

Bauser 3810/008.2.1.7.0.2-003
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 27.99 / piece)
€ 27.99
incl. VAT
Only 3 Piece(s) available
Highlights & Details
Digital timer or pulse counter - new! Twin solution
- 48 x 24 mm
- With electrical reset, without key
- Terminal connection
- AC-supplied
- This text is machine translated.
Technical specifications
- Electrical connection: Clamp connection
- Ambient temperature: -30 to +70 °C
- Counter frequency: 30 Hz for DC-counters
- Pulse counter: 10 Hz for AC-counters
- Mounting: spanning bracket
- Reading type
Pulse
- Type
3810/008.2.1.7.0.2-003
IP65 (on front)
- Recess width
48 mm
- Recess height
24 mm
- Dim
(W x H x D) 48 x 24 x 37 mm
- Weight
42 g
- Factory colour
Black
- Width
48 mm
- Height
24 mm
- Interfaces
Terminal strip
- Digit height
7 mm
- Depth
37 mm
- Type
Pulse counter 115-240 V AC
- Digits
7
- Display (details)
LCD
- Assembly dimensions
45 x 22 mm
- Total dimensions
48 x 24 mm
- Counter range
9999999
- Counter type
Pulse counter
- Reset
Electrically
- Temperature range
-30 to +70 °C
- Input voltage
115 - 240 V AC
- Operating voltage
115 - 240 V AC
Documents & Downloads
Datasheet
Datasheet 120661 Bauser 3810/008.2.1.7.0.2-003
User & Safety Instructions
User & Safety Instructions 120661 Bauser 3810/008.2.1.7.0.2-003
Description
Modern Bauser technology makes it possible Even without batteries your data is saved in the EEPROM memory! The new electronic timers and pulse counters are characterised by their attractive design, high quality and reliability. Optimally suited for the rigours of industrial applications or in commercial vehicles. And that’s what you can count on with Bauser counters.
Features
- High-contrast LCD display
- zero: electric or manual / electrical and several wood supply: 12 to 24 VDC or 115 - 240 V AC 50/60 Hz
- House dimensions: 24 x 48 mm and 48 x 48 mm
- protection IP 65, with key IP 54
- voltages: 12 to 24 VDC ± 25%, 115 - 240 VAC 50/60 Hz ± 10%
- Current consumption: 12 to 24 V DC 2 to 4 mA, 115 - 240 V AC 50/60 Hz 7 - 15 mA
- Electrical connection: Terminal Connection
- of protection: IP 65 without the key, with key IP 54
- fatigue: 1 g (10. .. 500 Hz) to IEC 68-T2-34
- shock: 30 g (18 ms) according to IEC 68-T2-27
- 25 g (6 ms) according to IEC 68-T2-29
- EMC: EN 55011, EN 50082-2
- Industry Standard: according to EN 61010, protection class II
