Bauser 828 24 V 20.8 - 24 V DC
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 45.99 / piece)
€ 45.99
incl. VAT
Only 7 Piece(s) available
Highlights & Details

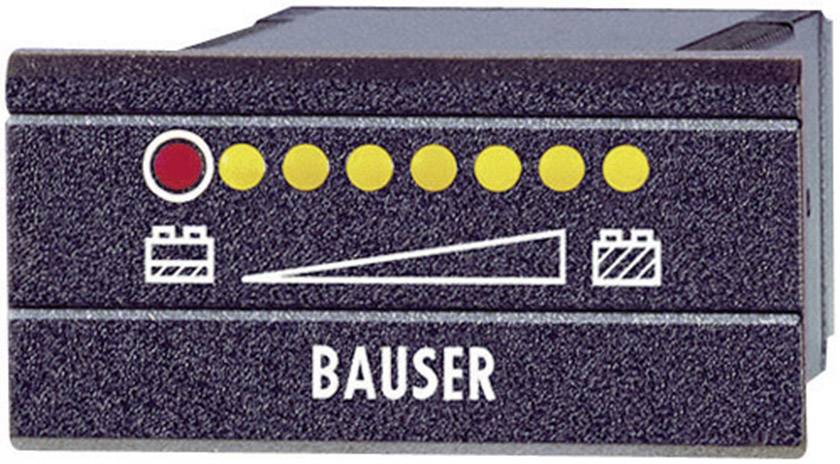

Battery controller 828 - 24V/DC
- The fuel gauge for your batteries
Technical specifications
- Reading type
Battery monitor
- Type
828 24 V
- Display technology
LED
IP65 (front)
- Dim
(W x H x D) 48 x 24 x 53 mm
- Width
48 mm
- Height
24 mm
- Interfaces
none
- Depth
53 mm
- Digits
8
- Display (details)
LED
- Assembly dimensions
45 x 22 mm
- Total dimensions
48 x 24 mm
- Power supply (details)
24 V DC
- Current consumption
< 50 mA
- Reading range
20.8 - 24 V DC
- Operating voltage
24 V DC
Documents & Downloads
Datasheet
Datasheet 121132 Bauser 828 24 V 20.8 - 24 V DC
User & Safety Instructions
User & Safety Instructions 121132 Bauser 828 24 V 20.8 - 24 V DC
Description
8 stage microprocessor controlled battery monitor with relay output. The display has been made by seven yellow and a red bright LED with reaching the unloading conclusion tension (1,73 V per cell for wet batteries) lights up the red LED and the relay is switched. For operation on traction batteries (e.g. for e-stacker or sweeper), not suitable for starter batteries.
