Name: BEL Stewart Connectors S811-1X1T-06-F MagJack 10/100Base-TX 4 Transformer Tab down S811-1X1T-06-F Socket, horizontal mou
Brand: BEL Stewart Connectors
SKU: 1196242
Availability: InStock

A metal connector with the inscription 'MagJack Bel Stewart'. It has two gold-coloured contacts and the engraved text 'PATENTED'.

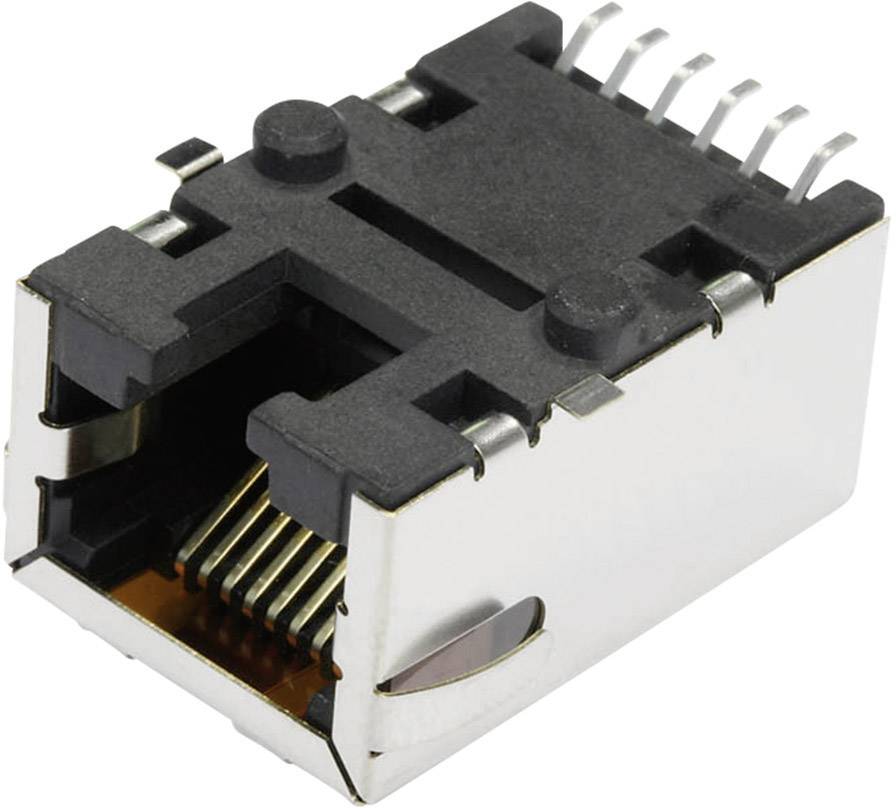

A RJ45 Ethernet plug – view from above with visible metal contacts and plastic casing.

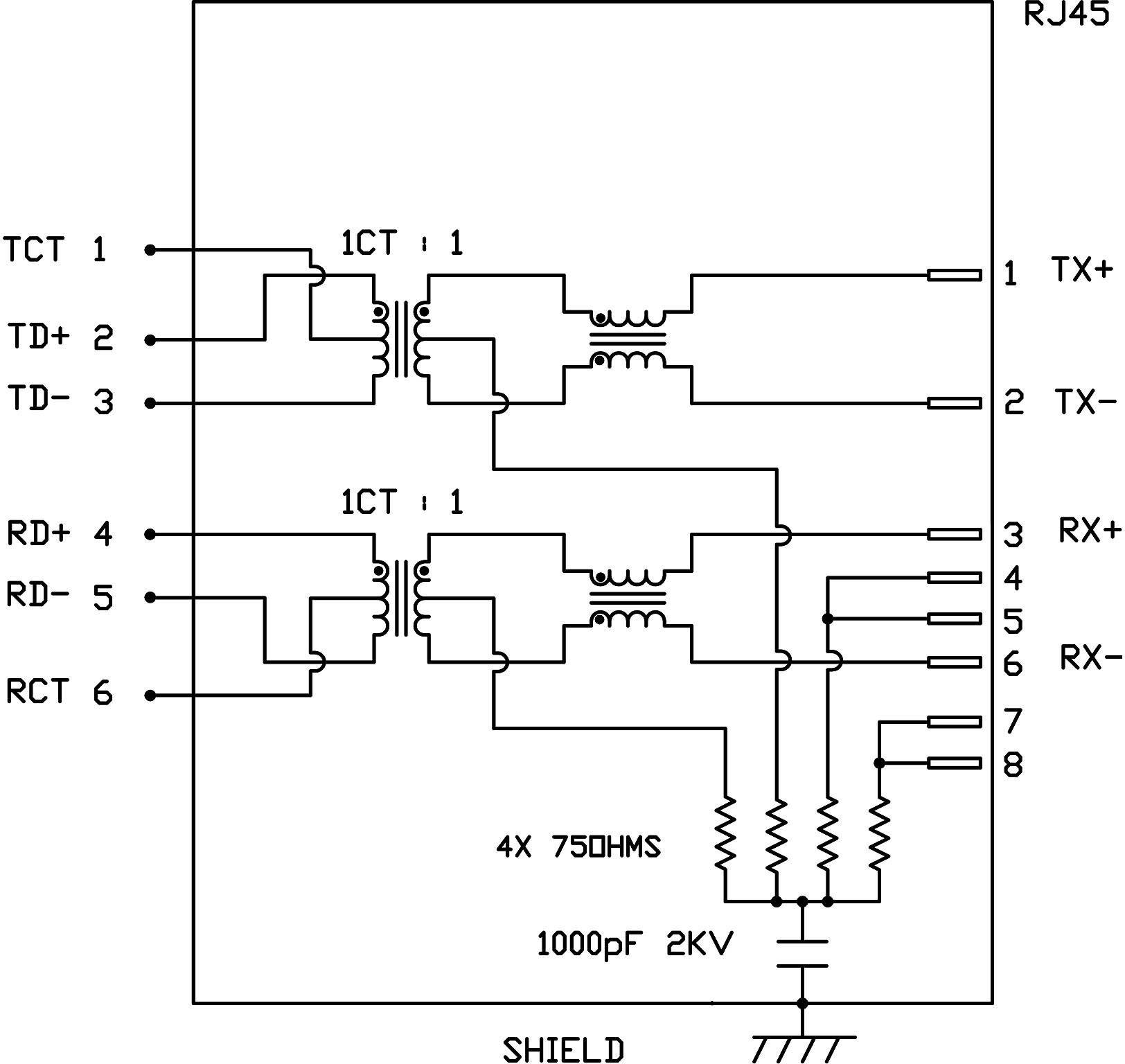

'Circuit diagram of an Ethernet transformer with RJ45 connector. Shows TCT, TD+, TD-, RD+, RD-, RCT, multiple windings and resistance values.'

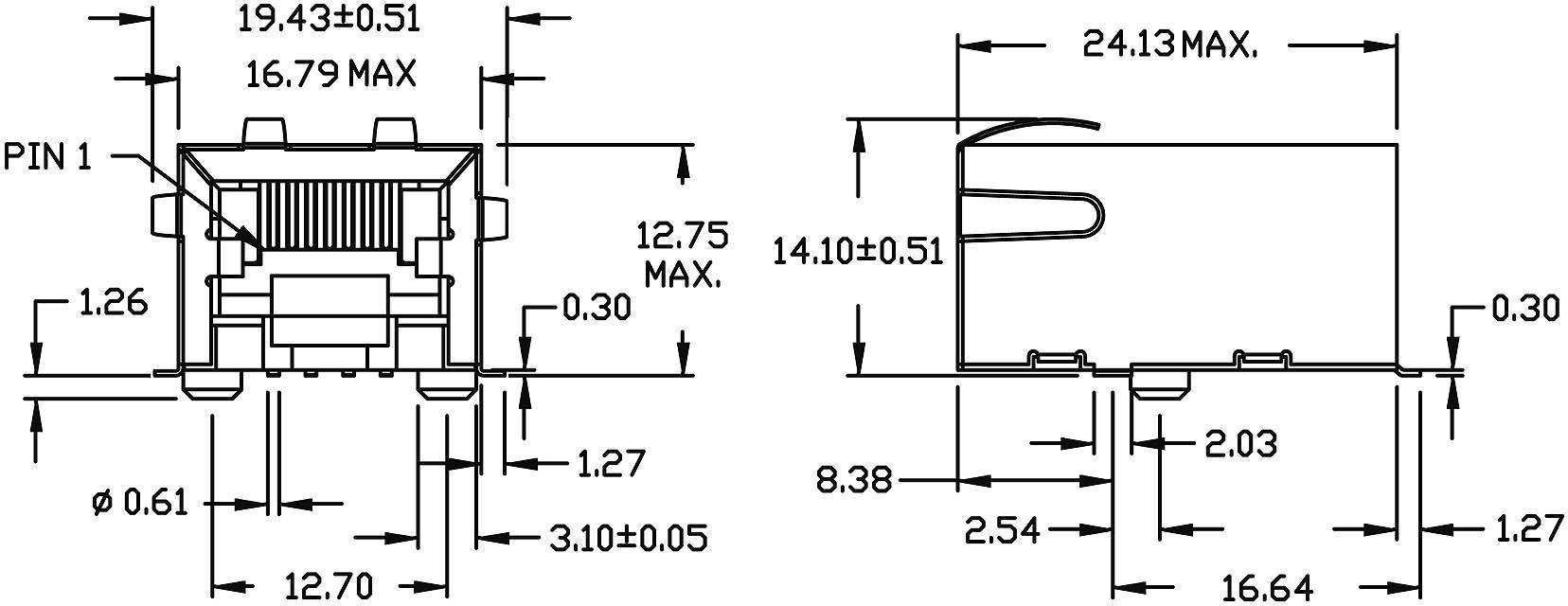

Technical drawing of an electronic connector with dimensions and markings for Pin 1. Front and side view.

1/4

Product type

RJ45 connector

Connector type

Socket, horizontal mount

Specification

CAT 3

Connector standard

RJ45

Type

S811-1X1T-06-F

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

156 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 5.49 / piece)

€ 5.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

MagJack 10/100Base-TX 4 Transformer Tab down

CAT 3
This text is machine translated.

Technical specifications

Type: S811-1X1T-06-F

Product type: RJ45 connector

Connector type: Socket, horizontal mount

: CAT 3

Connector standard: RJ45

Connection: SMT

Factory colour: Nickel-coated
Metal

Content: 1 pc(s)

Contact material: Copper alloy gold plated

Seal type: Snap-in

Standards: IEC 60603-7-71

Material (details): Thermoplastic UL94V-0

Nominal voltage (details): 150 V AC

Nominal current (details): 150 mA

Type: 10/100Base-TX

Pins: 8P8C

Mating cycles: min. 750

Temperature range: -0 - +70 °C
